| 产品 型号 | 接口类型 | 芯片方案 | 工作频率 Hz | 发射功率 dBm | 通信距离 km | 通信协议 | 天线形式 | 产品尺寸 mm | 功能特点 | 技术 手册 | 样品 购买 |
|---|---|---|---|---|---|---|---|---|---|---|---|

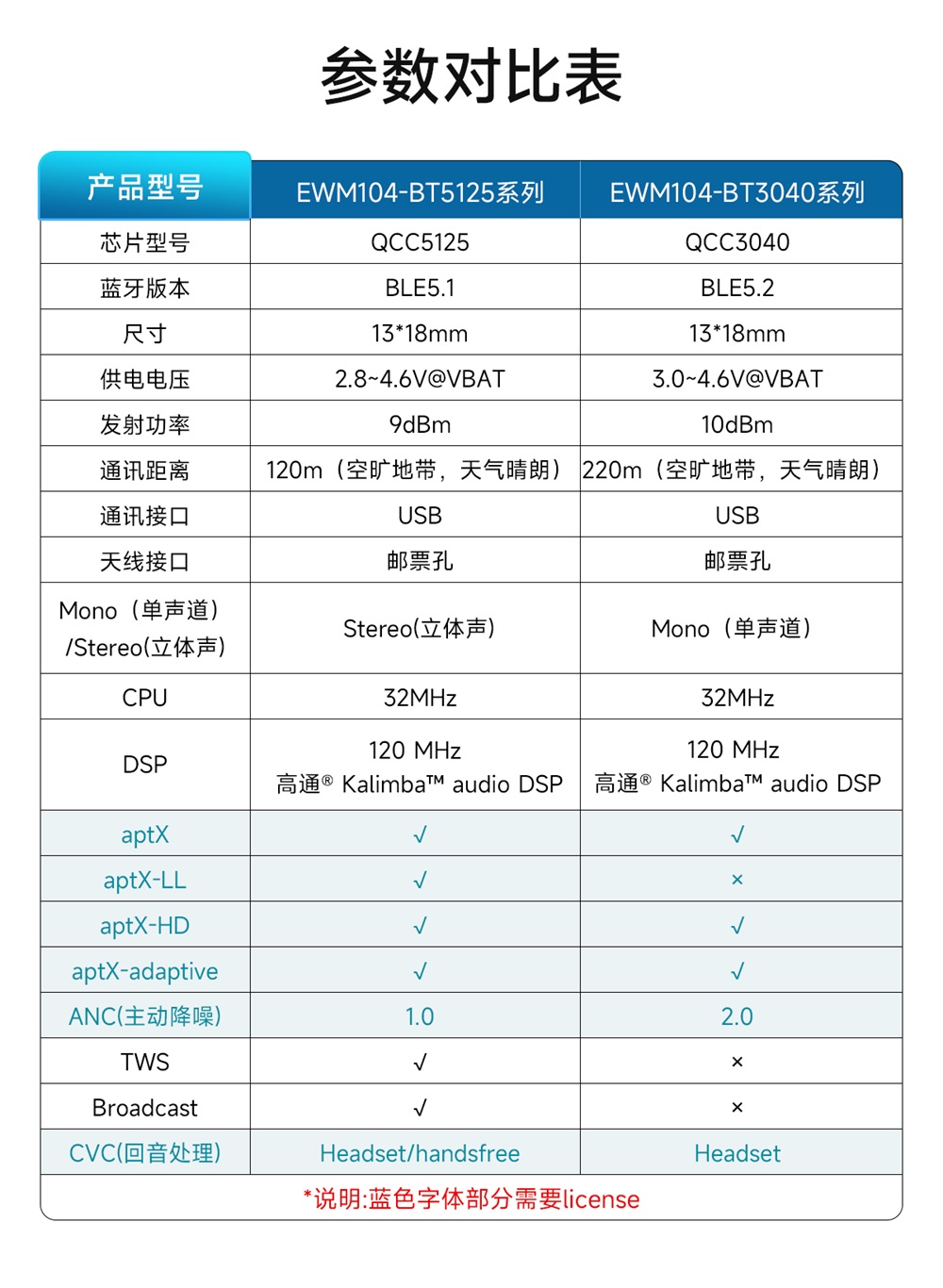

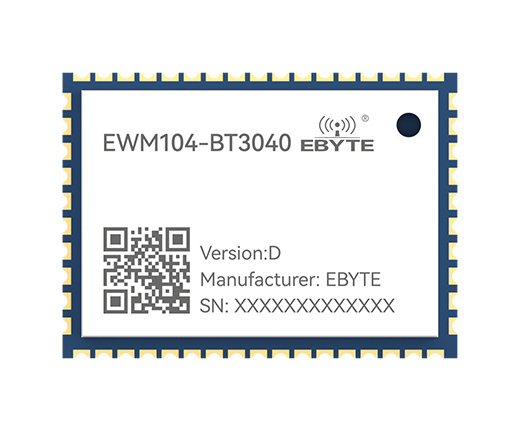

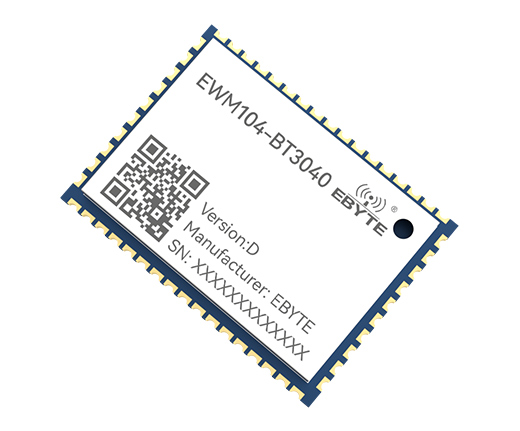

| EWM104-BT3040(I2S) | |||||||||||
| EWM104-BT3040(DAC) | |||||||||||
| EWM104-BT13SX | UART | - | 2.4G | 10 | 0.07 | BLE 5.0 | 贴片式 | 10*10 | 低功耗、小体积、3代IPEX天线接口、蓝牙接近开关模块 | ||
| EWM104-BT13SP | UART | - | 2.4G | 10 | 0.06 | BLE 5.0 | 贴片式 | 10*10 | 低功耗、小体积、PCB板载天线、蓝牙接近开关模块 | ||
| EWM104-BT5125(SPDIF) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 邮票孔 | 13*18 | SPDIF输出接口、无线蓝牙音频模块 | ||
| EWM104-BT5125(I2S) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 邮票孔 | 13*18 | I2S输出接口、无线蓝牙音频模块 | ||
| EWM104-BT5125(DAC) | USB | QCC5125 | 2.4G | 9 | 0.12 | BLE 5.1 | 邮票孔 | 13*18 | DAC输出接口、无线蓝牙音频模块 | ||
| EWD104-BT57(485) | RS485 | - | 2.4G | 20 | 0.56 | BLE 5.2 | SMA-K | 102*28*27 | 国产RS232/RS485转蓝牙无线适配器 | ||
| E104-BT52PX | UART | DA14531 | 2.4G | 20 | 0.5 | BLE 5.0 | IPEX 3代 | 16*10 | 低功耗，小体积，高性价比 | ||
| EWM104-BT57UP | USB | - | 2.4G | 23 | 0.22 | BLE 5.2 | PCB | 60*18*8.5 | 蓝牙转USB适配器，低功耗、主从一体、虚拟串口模块 | ||
| EWM104-BT57U | USB | - | 2.4G | 4.5 | 0.1 | BLE 5.2 | PCB | 18.5*14.5*6.0 | USB转蓝牙适配器，小体积、主从一体、虚拟串口模块 | ||
| EWM104-BT09SX | UART | TLSR8208BER | 2.4G | 11.5 | 0.2 | BLE 5.0 | 贴片式 | 10*10 | 低功耗小体积，蓝牙从机模块 | ||
| EWM104-BT09SP | UART | TLSR8208BER | 2.4G | 11.5 | 0.12 | BLE 5.0 | 贴片式 | 10*14.5 | 低功耗，蓝牙转串口从机模块 | ||
| E104-BT5032B | UART | nRF52832 | 2.4G | 20 | 0.5 | BLE 5.0 | 陶瓷天线 | 11.6*20 | 低功耗，透明传输，主从一体 | ||
| E104-BT09 | UART | TLSR8208BER | 2.4G | 11.5 | 0.15 | BLE 5.0 | 贴片式 | 13*19 | 低功耗，从机模块 | ||
| E104-BT08 | UART | - | 2.4G | 8 | 0.06 | BLE 5.1 | 贴片式 | 10*10 | 低功耗，主从一体 | ||
| E104-BT07 | UART | - | 2.4G | 8 | 0.13 | BLE 5.1 | 贴片式 | 21.9*14.6 | 低功耗，主从一体 | ||
| E104-BT53C3 | UART | EFR32BG22 | 2.4G | 6 | 0.17 | BLE 5.2 | PCB | 23*16 | 车规级耐高温、串口转BLE蓝牙模块 | ||
| E104-BT55SP | UART | CC2340R5 | 2.4G | 8 | 0.17 | BLE 5.3 | 板载PCB天线 | 10*14.5 | 低功耗，小体积 | ||
| E104-BT52X | UART | DA14531 | 2.4G | 0 | 0.13 | BLE 5.0 | IPEX 3代 | 10*10 | 低功耗，小体积，高性价比 | ||
| E104-BT11N-IPX | UART | EFR32MG21 | 2.4G | 20 | 0.3 | BLE Mesh | IPX | 16*13 | SigMesh自组网 | ||
| E104-BT11G-IPX | UART | EFR32MG21 | 2.4G | 20 | 0.3 | BLE Mesh | IPX | 16*13 | SigMesh自组网 | ||
| E104-BT11N-PCB | UART | EFR32MG21 | 2.4G | 20 | 0.2 | BLE Mesh | PCB | 19*13 | SigMesh自组网 | ||
| E104-BT11G-PCB | UART | EFR32MG21 | 2.4G | 20 | 0.2 | BLE Mesh | PCB | 19*13 | SigMesh自组网 | ||
| E104-BT5032U | USB | nRF52832 | 2.4G | 3 | 0.08 | BLE 4.2/BLE 5.0 | PCB | 59 * 18 | 蓝牙SoC方案，USB接口 | ||
| E104-BT53A3 | UART | EFR32BG22C224F512GM32 | 2.4G | 6 | 0.12 | BLE 5.2 | PCB | 13*19 | 低功耗，透明传输 | ||
| E104-BT12NSP-TB | USB | - | - | - | - | - | - | 46.5*26 | E104-BT12NSP模块测试板 | ||
| E104-BT12LSP-TB | USB | - | - | - | - | - | - | 46.5*26 | E104-BT12LSP模块测试板 | ||
| E104-BT12USP-TB | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自组网 | ||
| E104-BT12LSP | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自组网 | ||
| E104-BT12NSP | UART | TLSR8253F512 | 2.4G | 10 | 0.06 | - | PCB | 19*13 | SigMesh自组网 | ||
| E104-BT5040UA | USB | nRF52840 | 2.4G | 8 | 0.25 | BLE 4.2/BLE 5.0 | PCB | 59 * 18 | 蓝牙SoC方案，USB接口 | ||
| E104-BT5005A | UART | nRF52805 | 2.4G | 4 | 0.07 | BLE 5.0 | 陶瓷天线 | 9*9 | 超小体积封装，透明传输 | ||
| E104-BT5011A | UART | nRF52811 | 2.4G | 4 | 0.07 | BLE 5.1 | 陶瓷天线 | 11.5*16 | Long Range特性，透明传输 | ||
| E104-BT51A | UART | CC2640R2L | 2.4G | 5.5 | 0.05 | BLE 5.0 | 陶瓷天线 | 16*11.5 | 低功耗，透明传输 | ||
| E104-BT5040U | USB | nRF52840 | 2.4G | 8 | 0.25 | BLE 4.2/BLE 5.0 | PCB | 59 * 18 | 蓝牙SoC方案，USB接口 | ||
| E104-BT52 | UART | DA14531 | 2.4G | 0 | 0.09 | BLE 5.0 | 板载天线 | 14.5*10 | 低功耗，小体积，高性价比 | ||
| E104-BT53A1 | UART | EFR32 | 2.4G | 6 | 0.12 | BLE 5.2 | PCB | 13*19 | 低功耗，透明传输 | ||
| E104-BT11 | UART | EFR32MG21 | 2.4G | 20 | 0.2(PCB天线) 0.3(IPX天线) | BLE Mesh | PCB/IPX | 19*13(PCB版本) 16*13(IPX版本) | SigMesh自组网 | ||
| E104-BT30 | 1.1mm（详见尺寸图及 PCB 封装库） | CSRA64215 | 2.4G | 9 | 0.05 | V4.2+EDR | PCB | 25 *16 | 音频蓝牙传输、高性价比 | ||
| E104-BT40 | UART | - | 2.4G | 3 | 0.03 | V4.2+V3.0 SPP | PCB | 21*13 | 低功耗，串口转双模蓝牙从机 | ||
| E104-BT51 | UART | CC2640R2F | 2.4G | 5 | 0.75 | BLE 5.0 | PCB/IPX | 17.5*28.7 | 低功耗，透明传输 | ||
| E104-BT5032A | UART | nRF52832 | 2.4G | 4 | 0.06 | BLE 5.0 | 陶瓷天线 | 11.6 * 16 | 低功耗，透明传输 | ||
| E104-BT5010A | UART | nRF52810 | 2.4G | 4 | 0.055 | BLE 5.0 | 陶瓷天线 | 11.5*16 | 低功耗，透明传输 | ||
| E104-BT54S | UART | BLUENRG355MC | 2.4G | 8 | 0.3 | BLE 5.1 | IPEX，板载PCB天线 | 28*16*2.7 | STM意法半导体全新SoC蓝牙模块 | ||
| E104-BT05 | UART | - | 2.4G | 8 | 0.07 | BLE 5.0 | PCB | 10*14.5 | 低功耗，透明传输 | ||
| E104-2G4U04A | USB | CC2540 | 2.4G | 4 | 0.06 | BLE 4.0 | PCB | 59 * 18 | 蓝牙SoC方案，USB接口 | ||
| E104-BT02 | UART | DA14580 | 2.4G | 0 | 0.1 | BLE 4.2 | PCB | 14 * 22 | 透明连传，业界最低功耗 | ||
| E104-BT01 | I/O | CC2541 | 2.4G | 0 | 0.05 | BLE 4.0 | PCB | 14 * 22 | 超低功耗，高性价比 |
