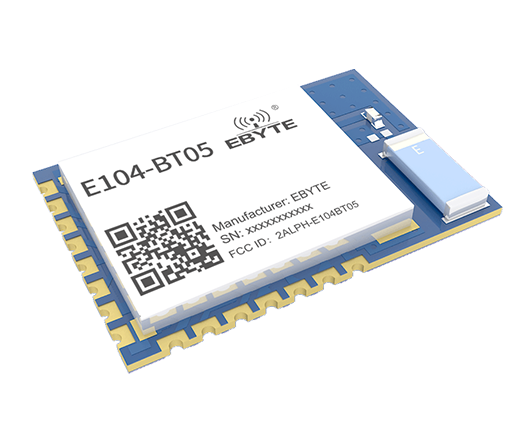

| 射频参数 | 参数值 | 备注 |
| 工作频段 | 2402~2480 MHz | 支持ISM 频段 |
| 发射功率 | 8 dBm | - |
| 接收灵敏度 | -92 dBm | - |
| 实测距离 | 70米 | 晴朗空旷，天线高度2.5米 |
| 硬件参数 | 参数值 | 备注 |
| 尺寸大小 | 10 * 14.5 mm | - |
| 天线形式 | PCB板载天线 | 等效阻抗约50Ω |
| 通信接口 | UART | - |
| 封装方式 | 贴片 | - |
| 电气参数 | 最小值 | 典型值 | 最大值 | 单位 | 条件 |
| 电源电压 | 2.5 | 3.3 | 3.6 | V | ≥3.3V 可保证输出功率 |
| 通信电平 | - | 3.3 | - | V | 使用5V TTL 有风险烧毁 |
| 发射电流 | - | 13 | - | mA | 瞬时功耗 |
| 接收电流 | - | 13 | - | mA | - |
| 休眠电流 | - | 8 | - | μA | - |
| 工作温度 | -40 | - | +85 | ℃ | 工业级 |
| 工作湿度 | 10 | - | 90 | % | - |
| 储存温度 | -40 | - | +125 | ℃ | - |
| 序号 | 定义 | 引脚方向 | 引脚功能 | 说明 |
| 1 | RST | 输入 | 电源复位 | 低电平有效 |
| 2 | LINK | P1.4 | 状态 | 连接状态指示低电平有效 |
| 3 | WKP | 输入 | 唤醒引脚 | 低电平唤醒 |
| 4 | IO2 | 输出 | 电平输出 | 根据AT指令输出高低电平 |
| 5 | DATA | 输出 | 数据指示 | 数据指示引脚 |
| 6 | IO3 | 输出 | 电平输出 | 根据AT指令输出高低电平 |
| 7 | GND | - | 电源地 | 电源地 |
| 8 | SWS | 未用 | 未用 | 未用 |
| 9 | PWM1 | 输出 | 输出PWM | 根据AT指令输出PWM波 |
| 10 | PWM2 | 输出 | 输出PWM | 根据AT指令输出PWM波 |
| 11 | PWM3 | 输出 | 输出PWM | 根据AT指令输出PWM波 |
| 12 | DM | - | - | USB数据Minus |
| 13 | DP | - | - | USB数据Positive |
| 14 | VDD | - | 电源正 | 电源正 |
| 15 | GND | - | 电源地 | 电源地 |
| 16 | MOD | 输入 | 模式选择 | 配置模式选择引脚 |
| 17 | DISC | 未用 | 未用 | 未用 |
| 18 | PWM0 | 输出 | 输出PWM | 根据AT指令输出PWM波 |
| 19 | TXD | 输出 | 串口输出 | 串口输出 |
| 20 | RXD | 输入 | 出口输入 | 出口输入 |
| 21 | IO0 | 输入 | 电平读取 | IO0电平读取 |
| 22 | IO1 | 输入 | 电平读取 | IO1电平读取 |
