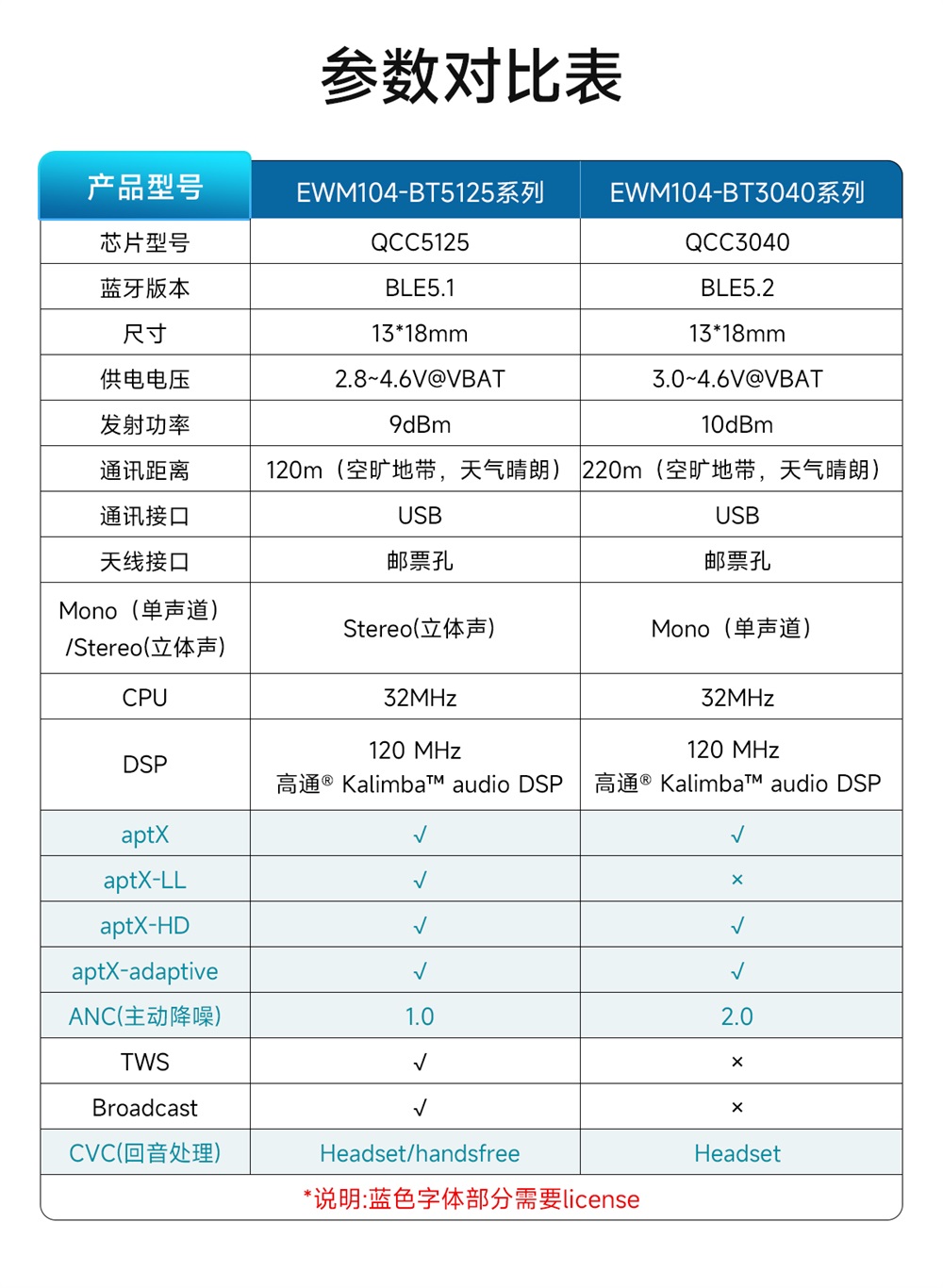

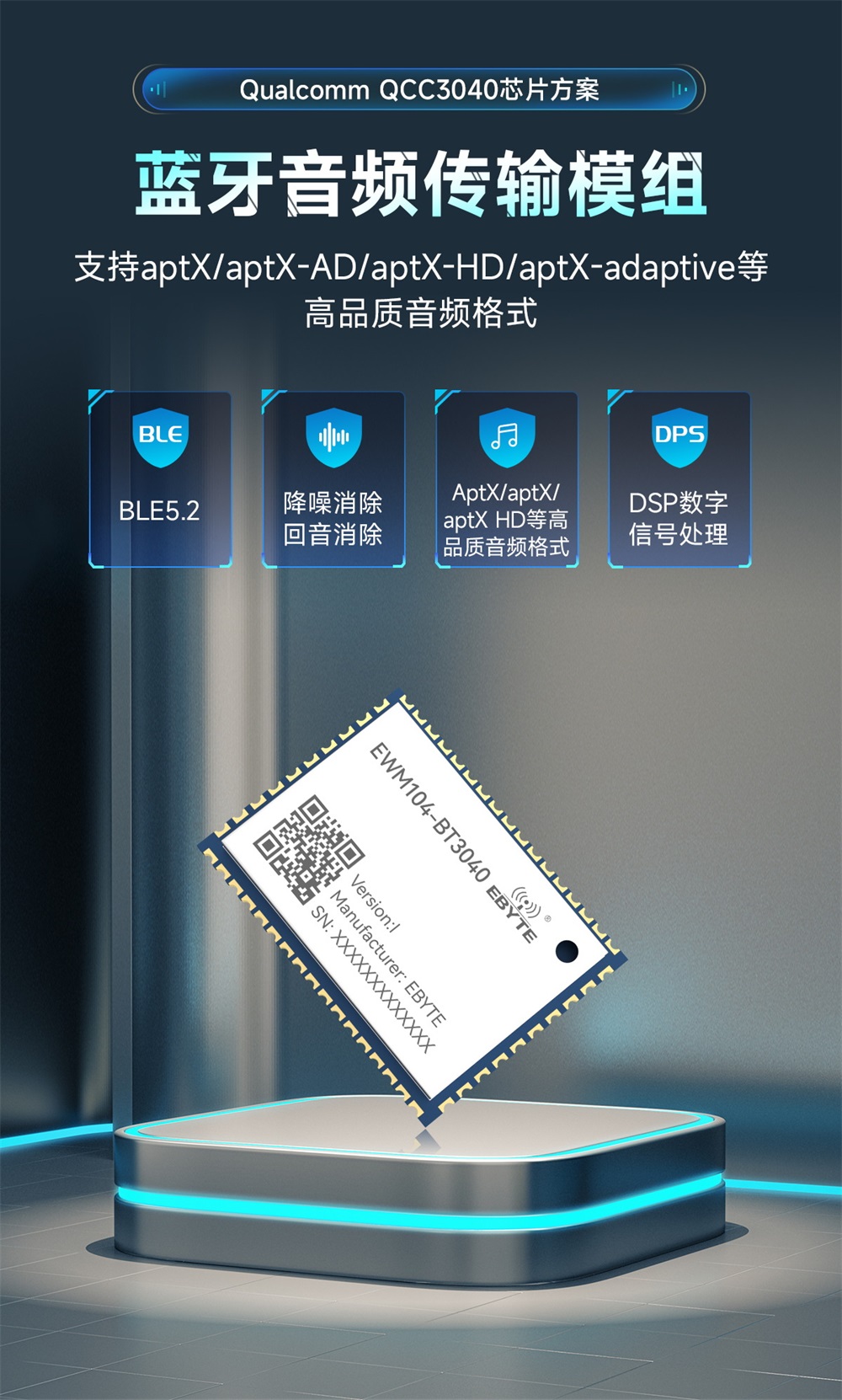

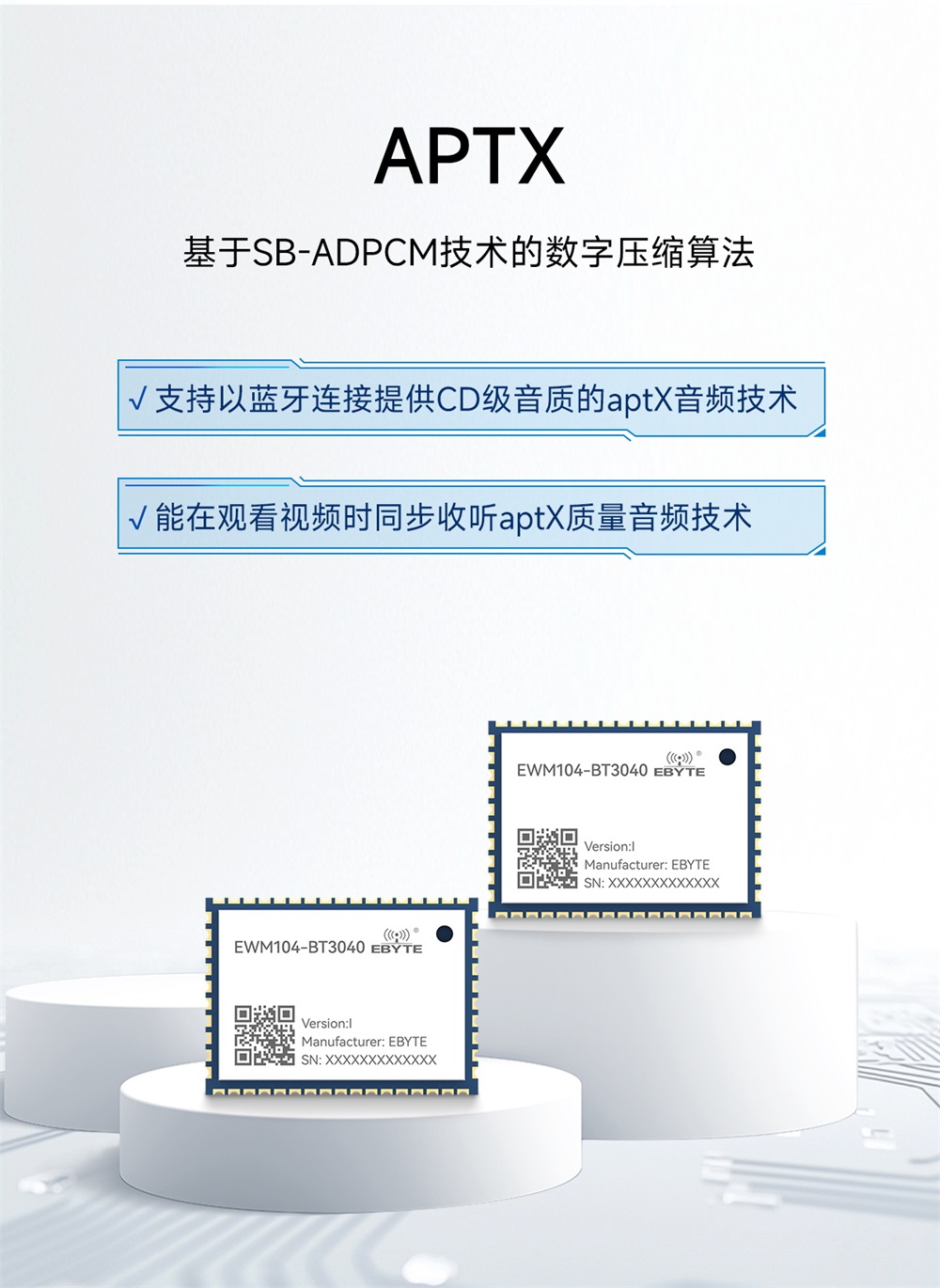

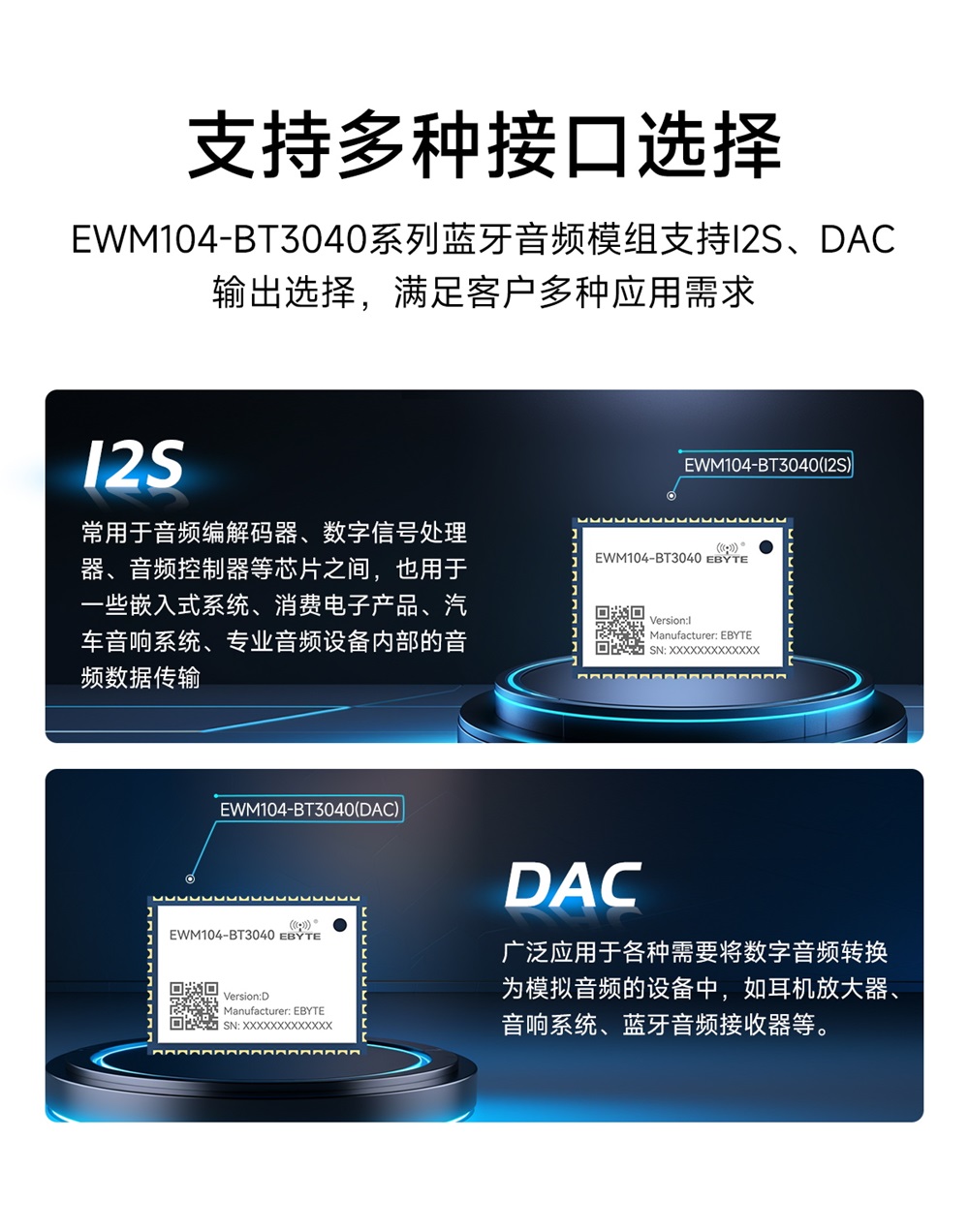

| 主要参数 | 描述 | 备注 |
| 参考距离 | 220m | 空旷地带，天气晴朗。 |
| 晶振频率 | 32MHz | |
| 封装方式 | 贴片式 | |
| EWM104-BT3040(DAC)输出接口 | DAC | |
| EWM104-BT3040(I2S)输出接口 | I2S | |
| 通信接口 | USB | |
| 接口方式 | 邮票孔 | 间距1.00mm |

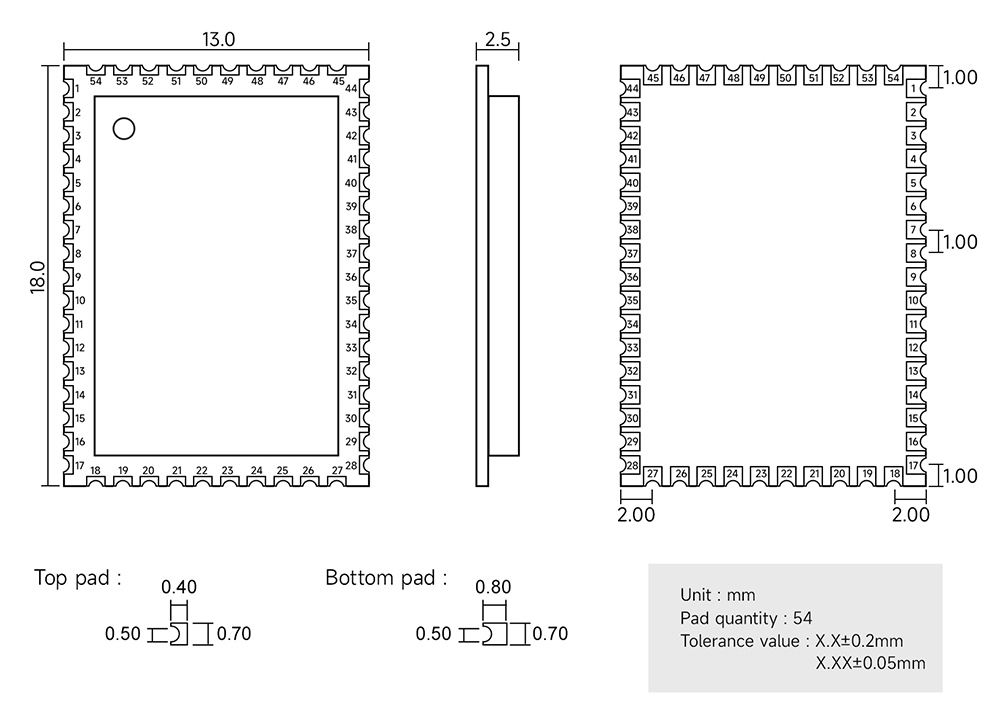

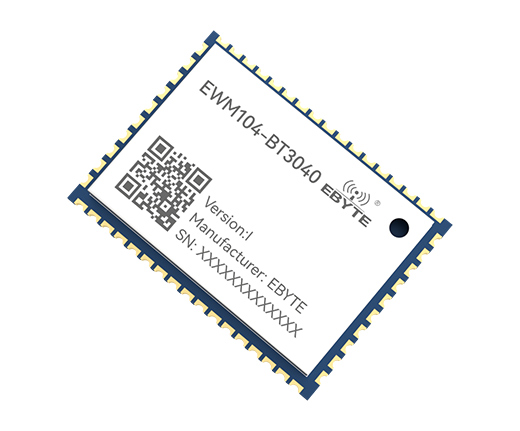

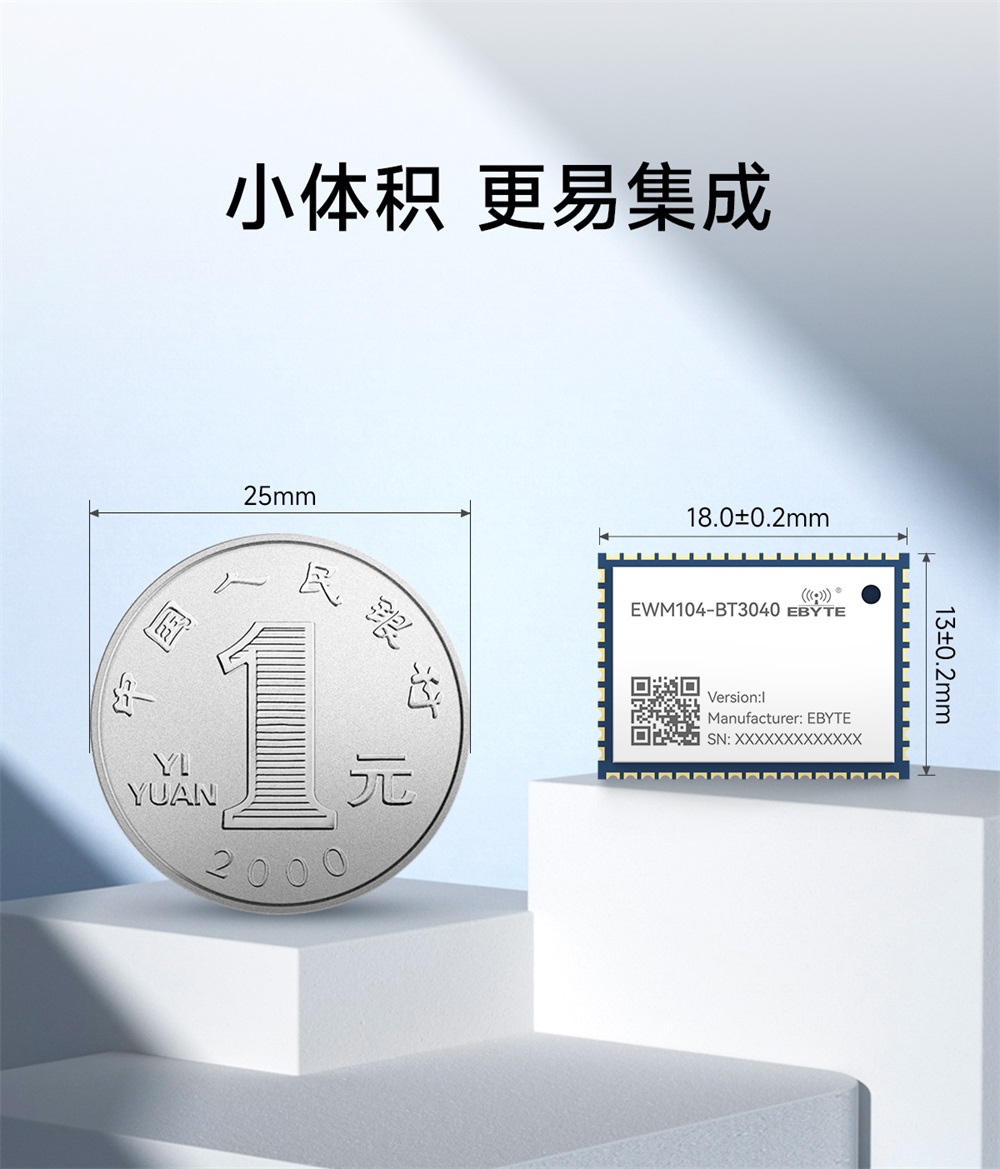

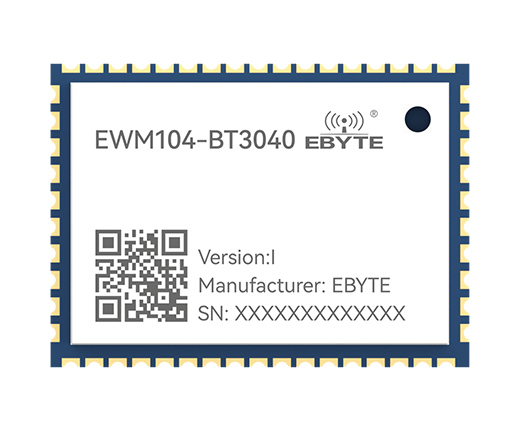

| 外形尺寸 | 13*18mm | ±0.2mm |
| 天线接口 | 邮票孔 | 等效阻抗约50Ω |
| 重量 | 1.0g | ±0.1g |
| 主要参数 | 性能 | 备注 | |||
| 最小值 | 典型值 | 最大值 | |||
| 工作电压VCHG（V） | 4 | 5 | 6.5 | 超过6.5V存在永久烧毁模块的风险 | |
| 工作电压VBAT（V） | 3 | 3.7 | 4.6 | 超过4.6V存在永久烧毁模块的风险 | |
| 通信电平（V） | 1.8 | 3.3 | 3.6 | 电平由VDD_PADS1和VDD_PADS3电平决定 | |
| 工作温度（℃） | -40 | 20 | 85 | 工业级设计 | |
| 工作频段（MHz） | 2402 | - | 2480 | 支持蓝牙协议标准频段 | |
| 功耗 | 发射电流（mA） | 40 | - | 48 | |
| 关机电流（uA） | - | 150 | - | 仅VBAT供电时 | |
| 最大发射功率（dBm） | - | 9 | 10 | ||
| 接收灵敏度（dBm） | - | -96 | - | BER | |
| 引脚序号 | 引脚名称 | 引脚方向 | 引脚用途 |
| 1 | PIO[20] | I/O | 可编程I/O口20，其它功能：PCM_DOUT1 |
| 2 | PIO[19] | I/O | PIO[19] |
| 3 | PIO[18] | I/O | I2S位数据输出、PIO[18] |
| 4 | PIO[17] | I/O | I2S帧时钟输出、PIO[17] |
| 5 | PIO[16] | I/O | I2S位时钟输出、PIO[16] |
| 6 | PIO[15] | I/O | I2S系统时钟输出、PIO[15] |
| 7 | VBAT_SENSE | Analog | 电池电压检测 |
| 8 | USB_DN | - | 全速USB接口DN |
| 9 | USB_DP | - | 全速USB接口DP |
| 10 | VCHG | P | 内部电源调节器和充电器电压输入,4.0~6.5V |
| 11 | VCHG_SENSE | Analog | 充电器输入电压检测引脚，使用内部充电器或没有充电器时，此引脚与VCHG引脚连接。 |
| 12 | CHG_EXT | Analog | 外部充电器晶体管电流控制。 |
| 13 | SYS_CTRL | I | 通常连接到一个开关按钮PIO[0]，在出仓状态下上升沿power_on模式，下降沿power_off模式，开机自动进入配对状态 |
| 14 | VBAT | P | 电池电源输入，3.0~4.6V |
| 15 | GND | G | GND |
| 16 | LED[0] | Analog/DO | 模拟/数字输入、开漏LED输出。配对状态下与LED1交替闪烁 |
| 17 | LED[1] | Analog/DO | 模拟/数字输入、开漏LED输出。配对状态下与LED0交替闪烁，连接蓝牙后常亮 |
| 18 | LED[2] | Analog/DO | 模拟/数字输入、开漏LED输出 |
| 19 | LED[4] | Analog/DO | 模拟/数字输入、开漏LED输出 |
| 20 | LED[5] | Analog/DO | 模拟/数字输入、开漏LED输出 |
| 21 | GND | - | GND |
| 22 | 1V8 | P | 1.8V电源输出 |
| 23 | VDD_PADS1 | P | 1.8V/3.3V PIO电压输入 |
| 24 | VDD_PADS3 | P | 1.8V/3.3V PIO电压输入 |
| 25 | PIO[4] | I/O | 短按下一曲，长按音量加(需要出仓+媒体播放条件下)，用户可编程 |
| 26 | PIO[3] | I/O | 短按上一曲，长按音量减(需要出仓+媒体播放条件下)，用户可编程 |
| 27 | PIO[6] | I/O | PIO[6] |
| 28 | PIO[5] | I/O | 出仓状态下可用，短按LED0、LED1、LED2闪烁，用户可编程 |
| 29 | PIO[8] | I/O | PIO[8] |
| 30 | PIO[7] | I/O | PIO[7] |
| 31 | PIO[2] | I/O | PIO[2]，短按播放暂停，长按3秒进入配对，长按6秒清空配对列表，用户可编程 |
| 32 | RESET/PIO[1] | I/O | 复位、PIO[1] |
| 33 | PIO[60] | I/O | PIO[60] |
| 34 | NC | - | - |
| 35 | NC | - | - |
| 36 | SPK-LN | Analog | DAC音频差分输出左声道负极 |
| 37 | SPK-LP | Analog | DAC音频差分输出左声道正极 |
| 38 | GND | - | GND |
| 39 | MIC_BIAS | Analog | 麦克风偏置电压输出，1.5~2.1V |
| 40 | MIC2_N | Analog | 麦克风差分输入右声道负极，默认固件未使用，用户可编程 |
| 41 | MIC2_P | Analog | 麦克风差分输入右声道正极，默认固件未使用，用户可编程 |
| 42 | MIC1_N | Analog | 麦克风差分输入左声道负极，默认固件未使用，用户可编程 |
| 43 | MIC1_P | Analog | 麦克风差分输入左声道正极，默认固件未使用，用户可编程 |
| 44 | GND | - | GND |
| 45 | GND | - | GND |
| 46 | RF_PORT | - | 蓝牙天线接口 |
| 47 | GND | - | GND |
| 48 | PIO[14] | I/O | PIO[14] |
| 49 | PIO[13] | I/O | PIO[13] |
| 50 | PIO[12] | I/O | PIO[12] |
| 51 | PIO[11] | I/O | PIO[11] |
| 52 | PIO[10] | I/O | PIO[10] |
| 53 | PIO[09] | I/O | PIO[09] |
| 54 | PIO[21] | I/O | PIO[21]、音频功放使能，客户可编程 |
特别注意： 以上引脚的功能描述仅针对于我司出厂时的默认程序功能，如需其它功能可联系我司定制，自行开发引脚功能请参考QCC3040的官方用户手册。 | |||
