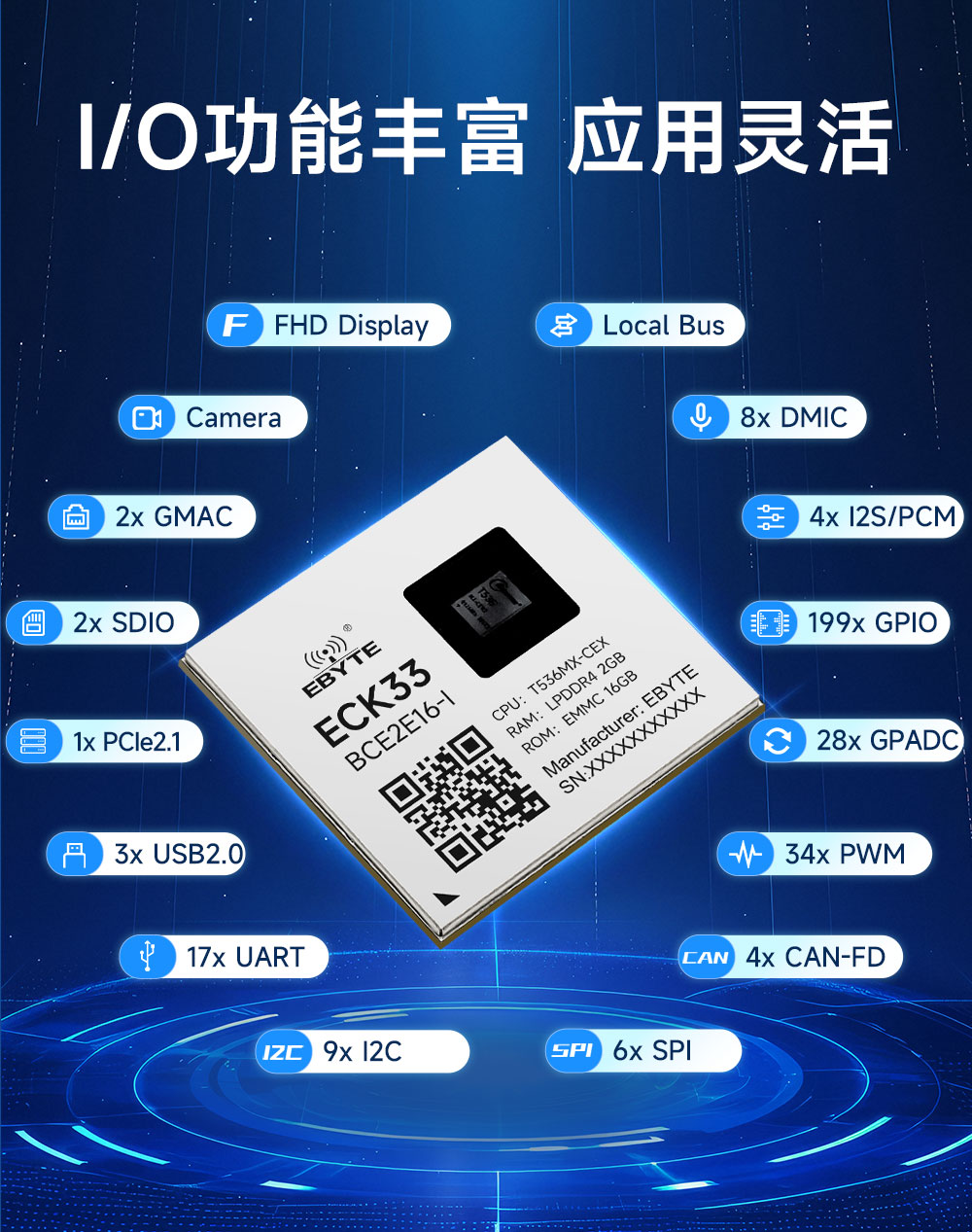

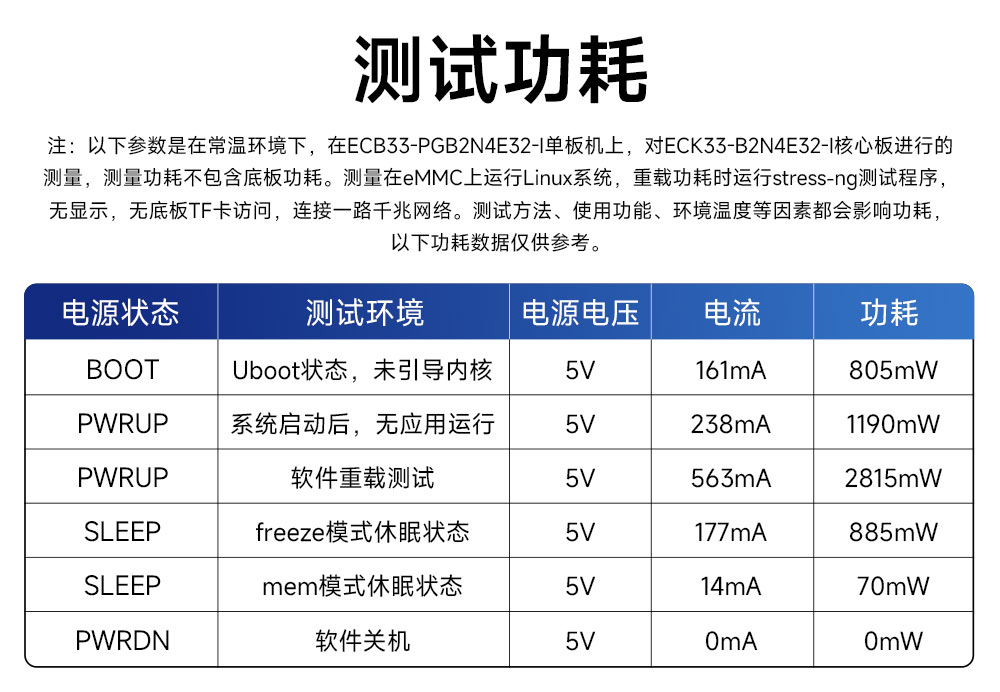

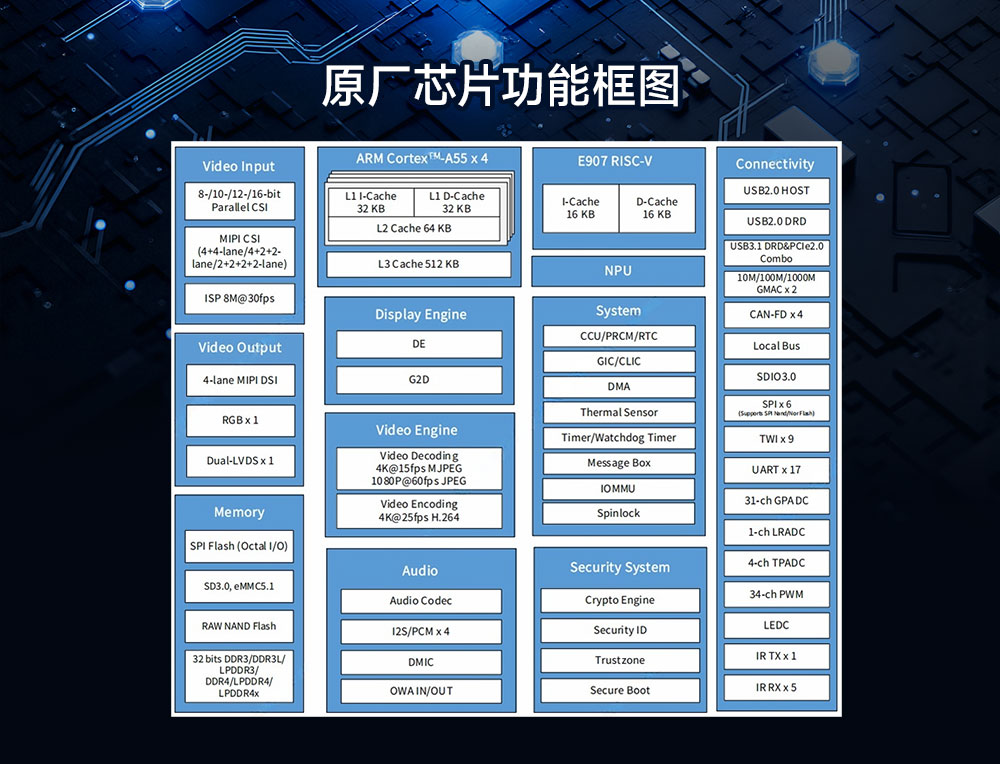

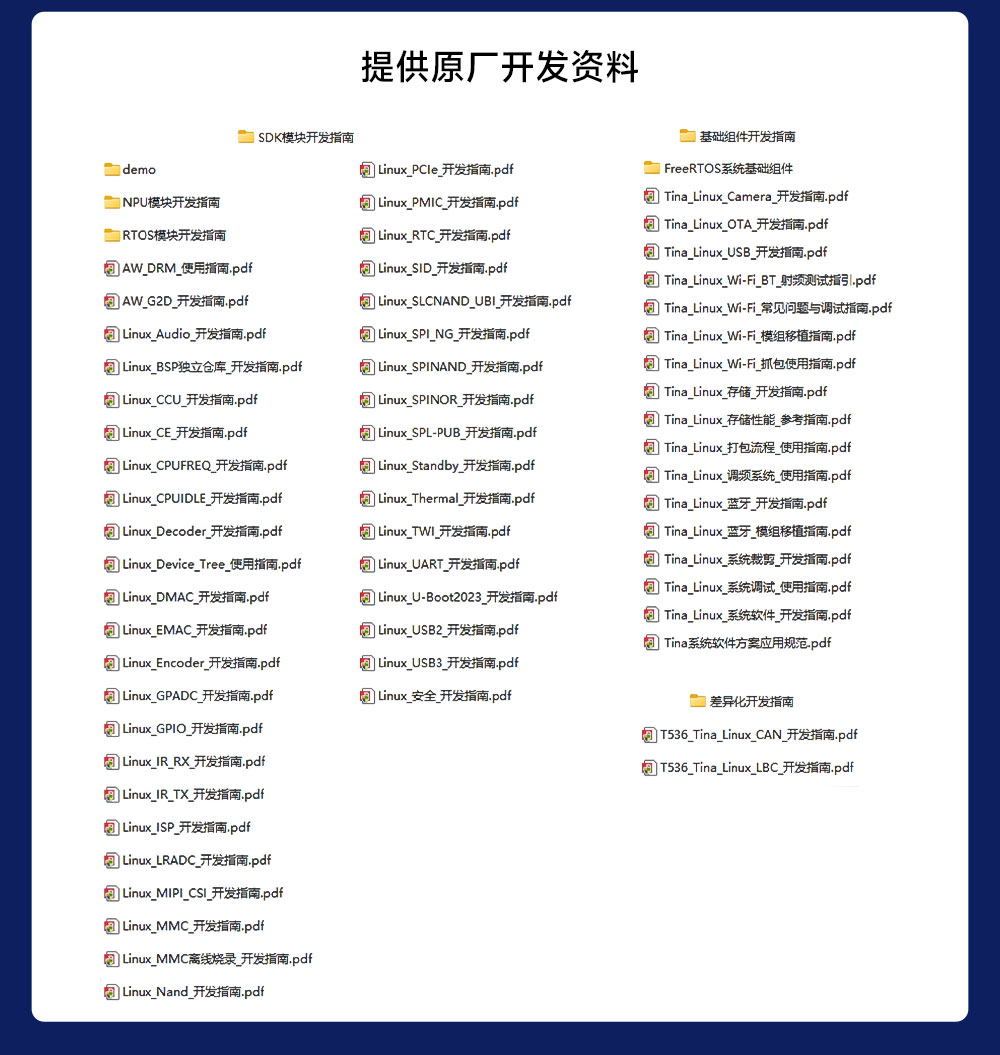

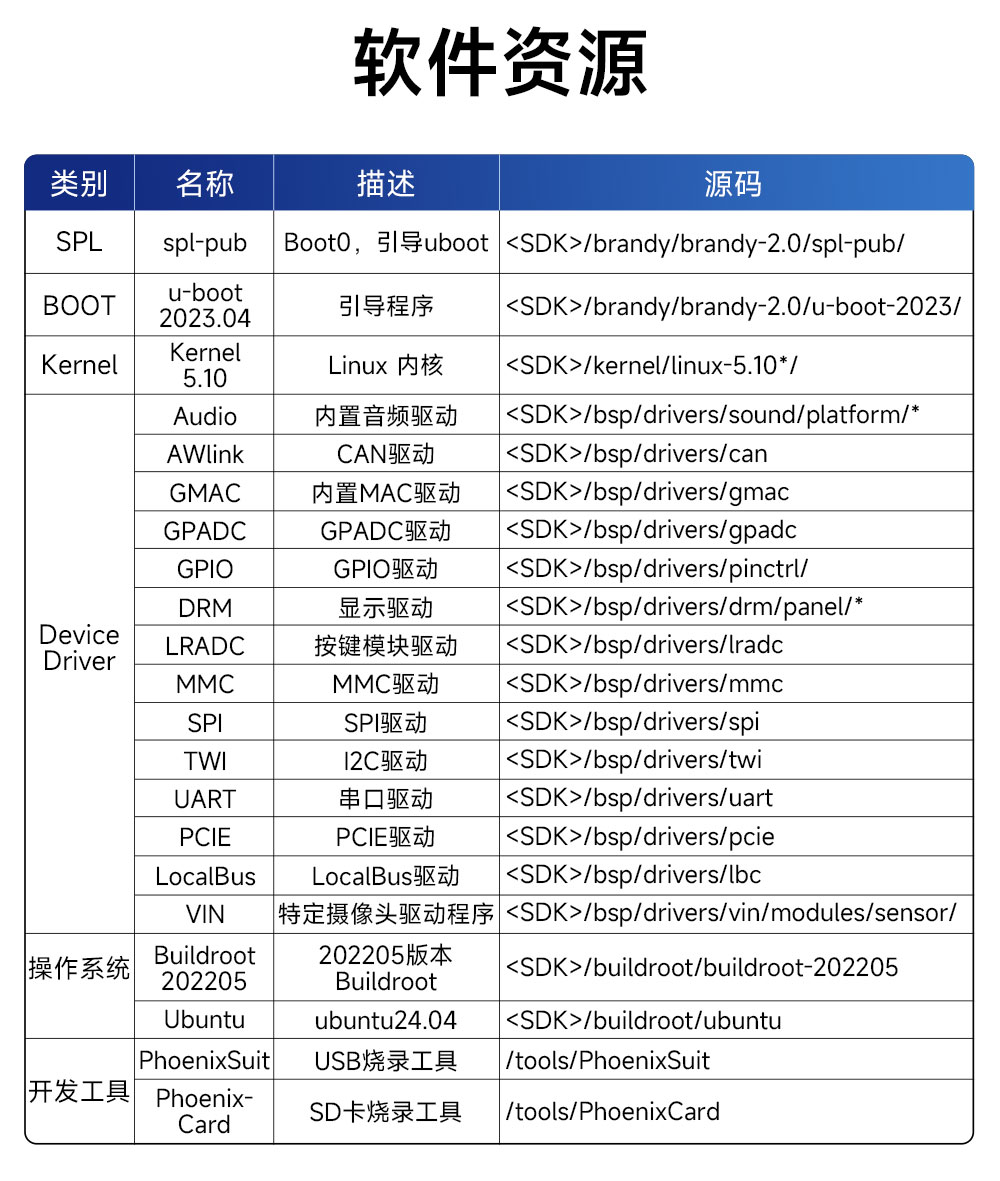

| 功能 | 功能描述 |

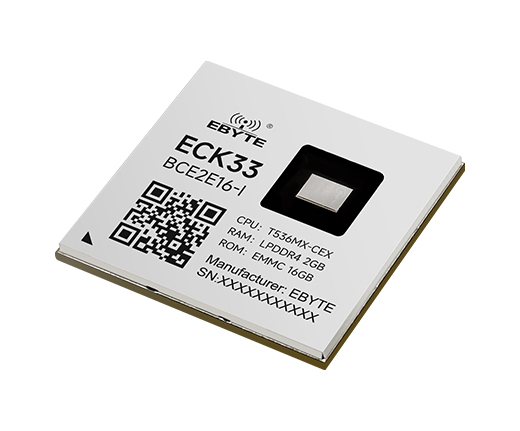

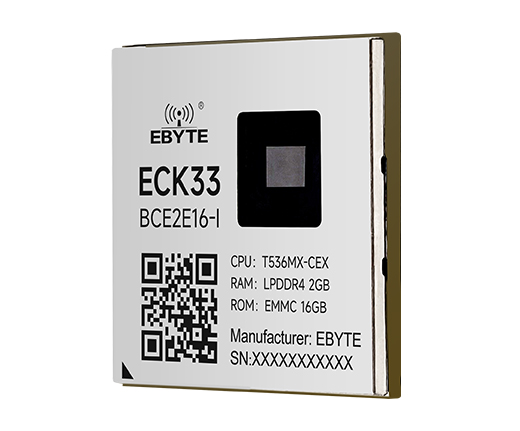

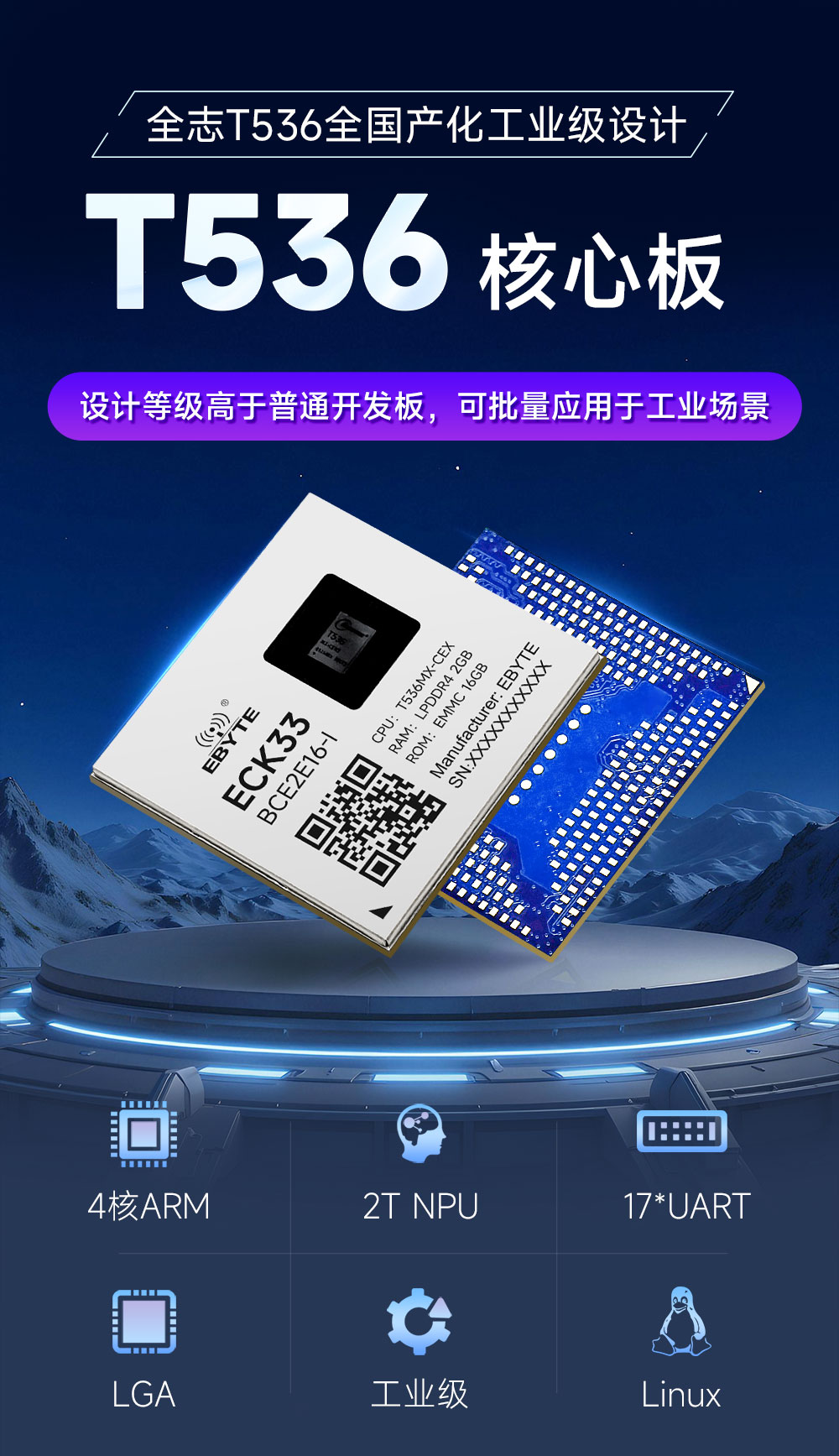

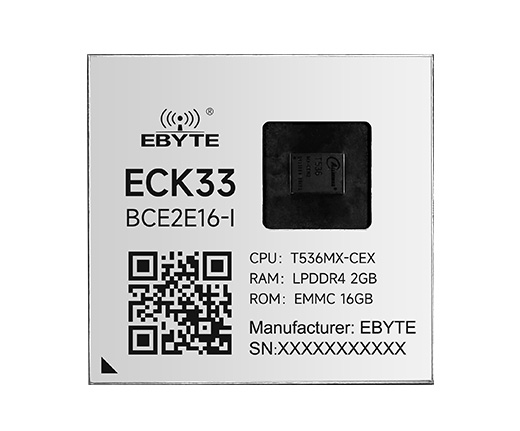

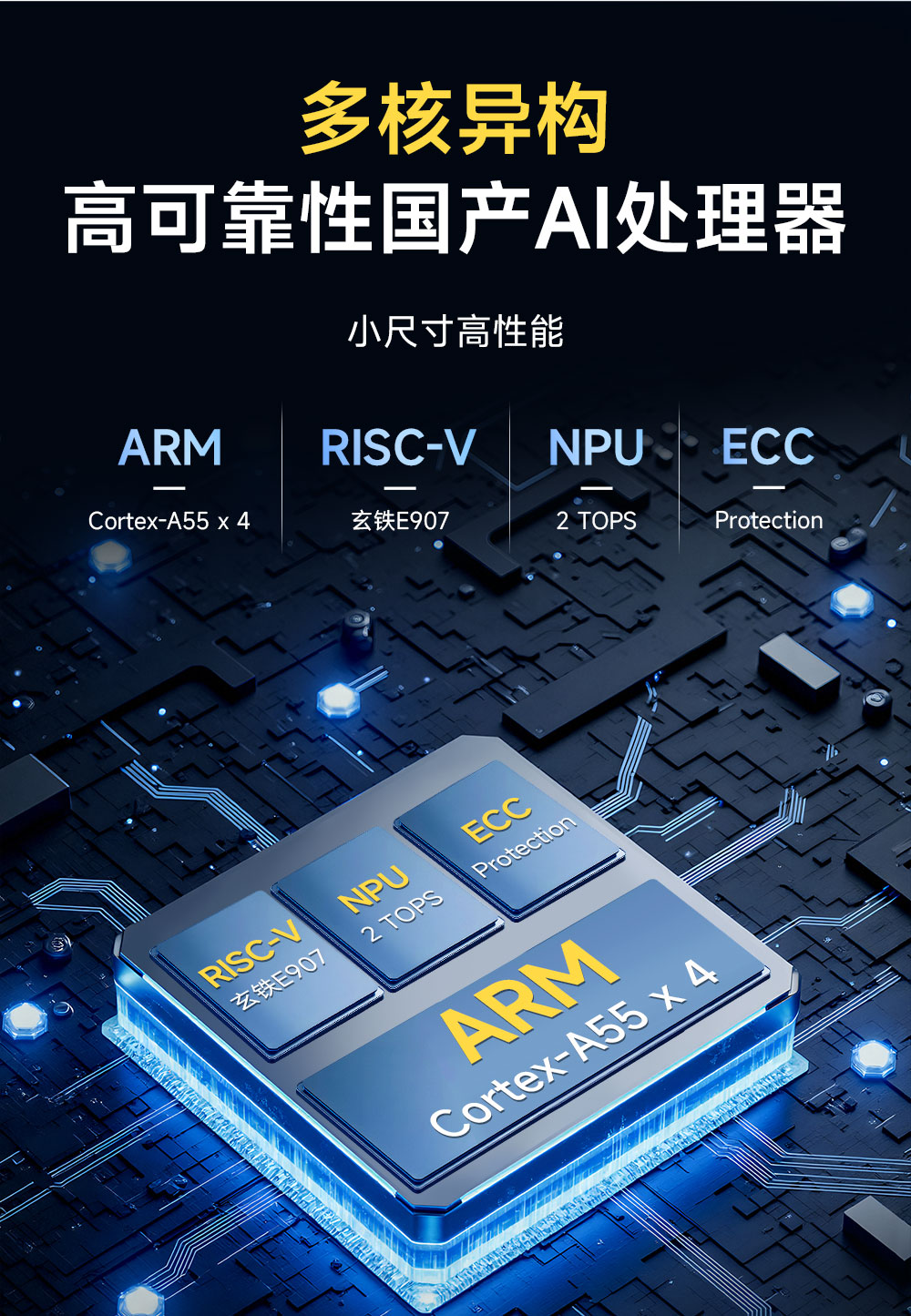

| CPU | T536MX-CEN2 / T536MX-CEX; |
| Quad-core ARM Cortex-A55, up to 1.6GHz; | |
| E907 RISC-V MCU, up to 600MHz; | |
| NPU up to 2 TOPS (CEX not support); | |
| ECC Protection; | |
| ISP | Supports multiple sensor (up to 4) inputs; |
| Supports raw8/10/12/14/16; | |
| Performance of one sensor: | |
| Online: 5M@30fps (linear), 5M@30fps(2f-wdr); | |
| Offline: 8M@30fps (linear), 8M@30fps (2f-wdr); | |
| MEM | On board 2GB LPDDR4 / 4GB LPDDR4; |
| FLASH | On board 16GB / 32GB eMMC; |
| Video Engine | MJPEG Decoder, up to 3840 x 2160@15fps; |
| JPEG Decoder, up to 1920 x 1080@60fps; | |
| H.264 Encoder, up to 3840 x 2160@25fps; | |
| JPEG Encoder, up to 3840 x 2160@15fps; | |
| MJPEG Encoder, up to 3840 x 2160@15fps; | |
| Video Output | 1x Dual-link LVDS, up to 1920 x 1080@60fps; |
| 1x 4-lane MIPI DSI, up to 1920 x 1200@60fps; | |
| 1x RGB, up to 1920 x 1200@60fps; | |

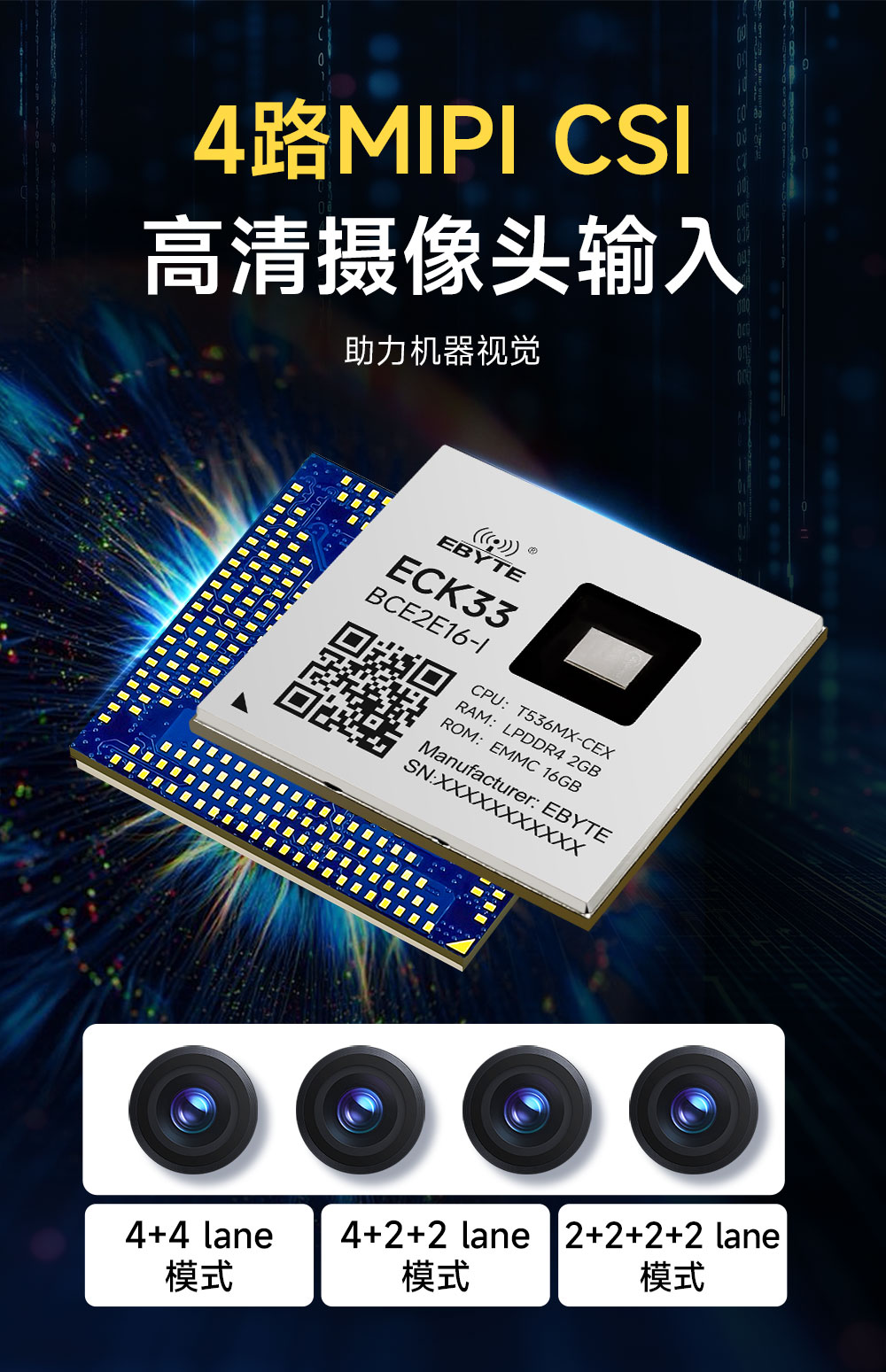

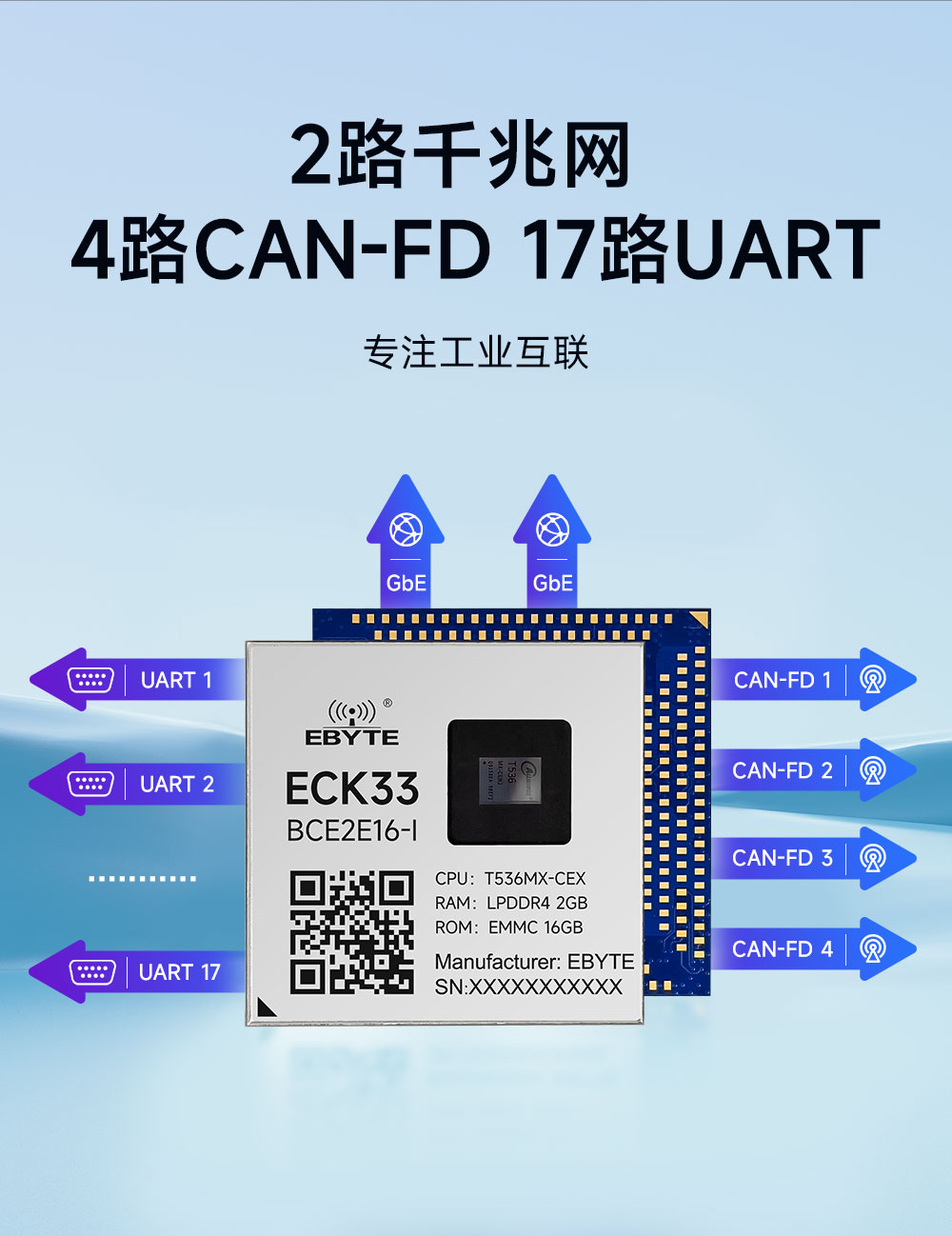

| Video Input | 4+4-lane or 4+2+2-lane or 2+2+2+2-lane MIPI CSI; |
| 8/10/12/16-bit Parallel CSI; | |
| Audio | 1x audio differential lineout output: LINEOUTP/N; |
| 4x I2S/PCM interfaces (I2S0, I2S1, I2S2, and I2S3); | |
| Supports maximum 8 digital PDM microphones; | |
| 1x OWA TX and 1x OWA RX, compliant with S/PDIF interface; | |
| GMAC | 2x 10/100/1000Mbit/s Ethernet with RGMII and RMII interfaces; |
| SMHC | 2x SD/MMC Host Controller (SMHC) interfaces; |
| SMHC0, compliant Secure Digital Memory (up to SD3.0); | |
| SMHC1, compliant Secure Digital I/O (up to SDIO3.0); | |
| PCIe | 1x PCIe2.1&USB3.1 combo PHY; |
| Compliance to PCI Express Base Specification, Revision 2.1; | |
| Supports 1 lane link width, Root Complex (RC) mode; | |
| USB | 1 x USB2.0 Host; |
| 2 x USB2.0 DRD; | |
| 1 x USB3.1 DRD&PCIe2.1 Combo; | |

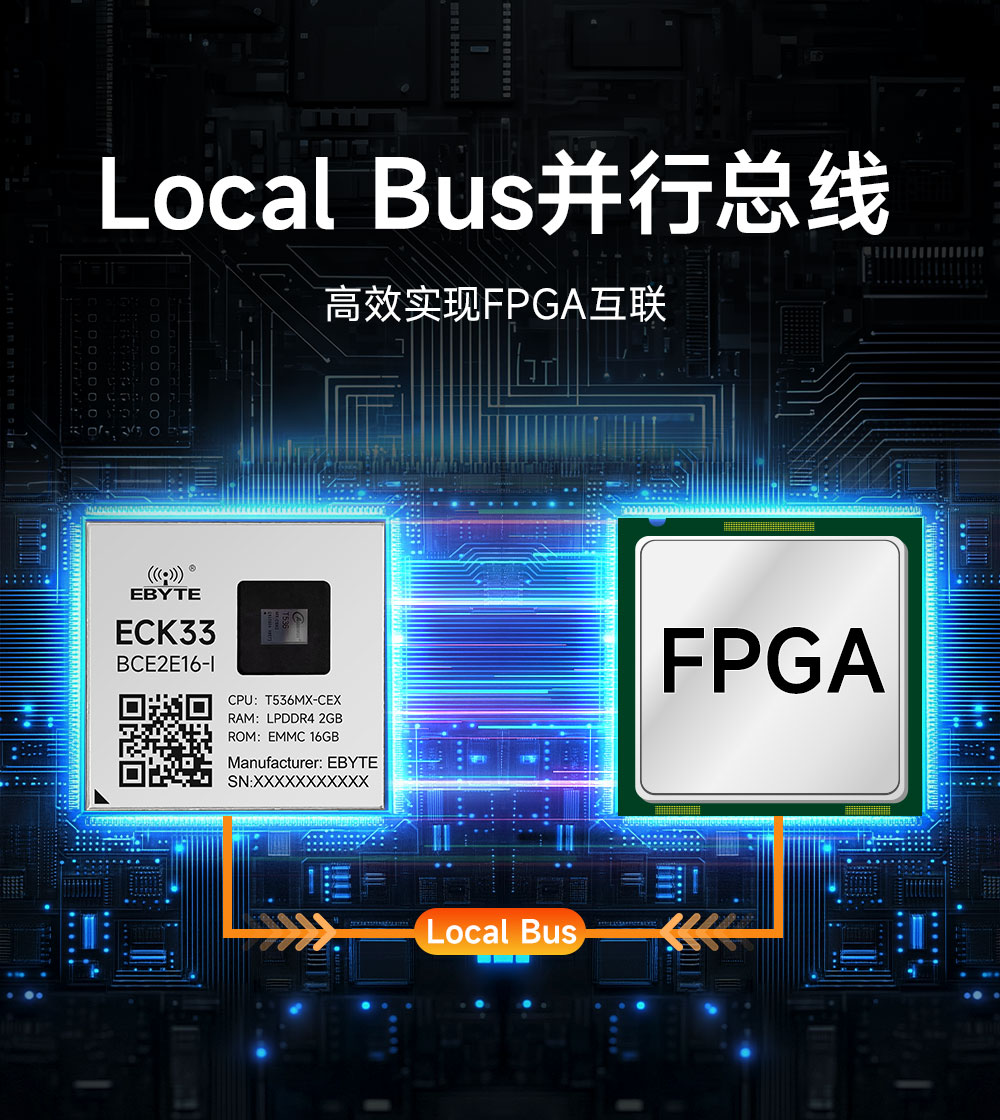

| Local Bus | 1x 8/16-bit wide Local Bus; |
| UART | 17x UART, compatible with industry-standard 16450/16550; |
| TWI | 6x TWI, compliant with I2C bus standard; |
| SPI | 5x SPI, support SPI mode and display bus interface (DBI) mode; |
| CAN | 4x CAN-FD ports (up to 64 data bytes); |
| PWM | 30x PWM channels and 4x S-PWM channels; |
| ADC | 1x LRADC, 6-bit resolution up to 2KHz sampling rate; |
| 28x GPADC, 12-bit resolution up to 1MHz sampling rate; | |
| LED | Maximum 1024 LEDs serial connect; |
| IR | 1x IR_TX interface, 4x IR_RX interface; |
| GPIO | 199x GPIOs and GPIO interrupt input; |

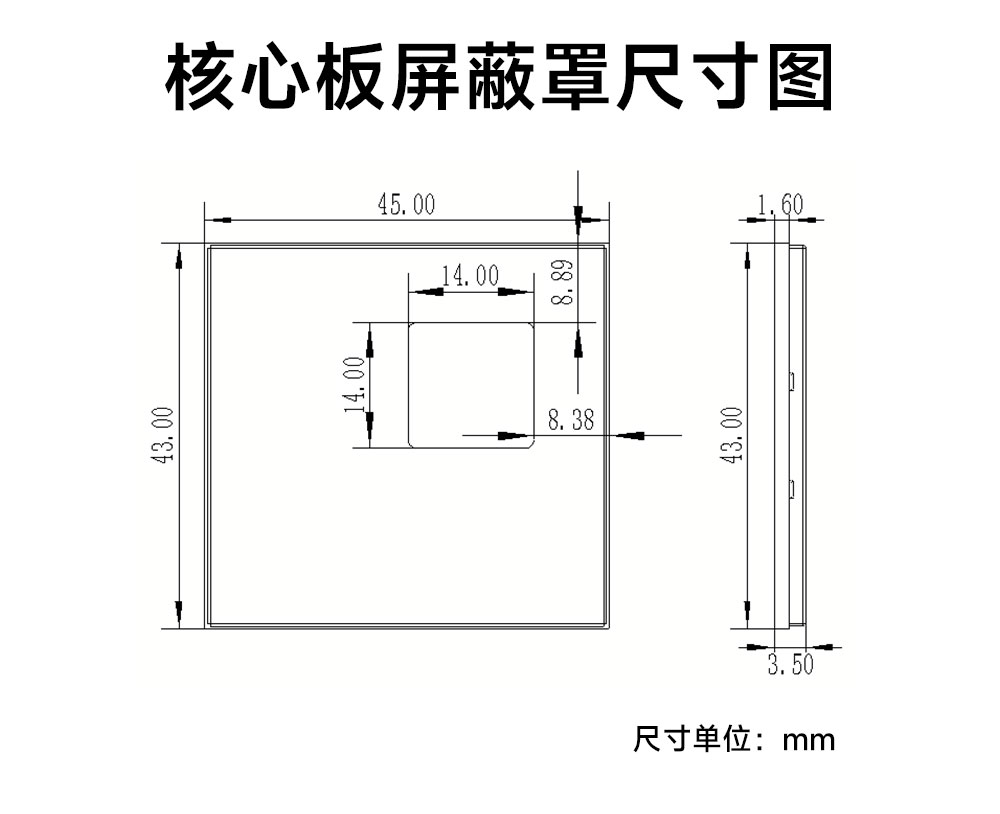

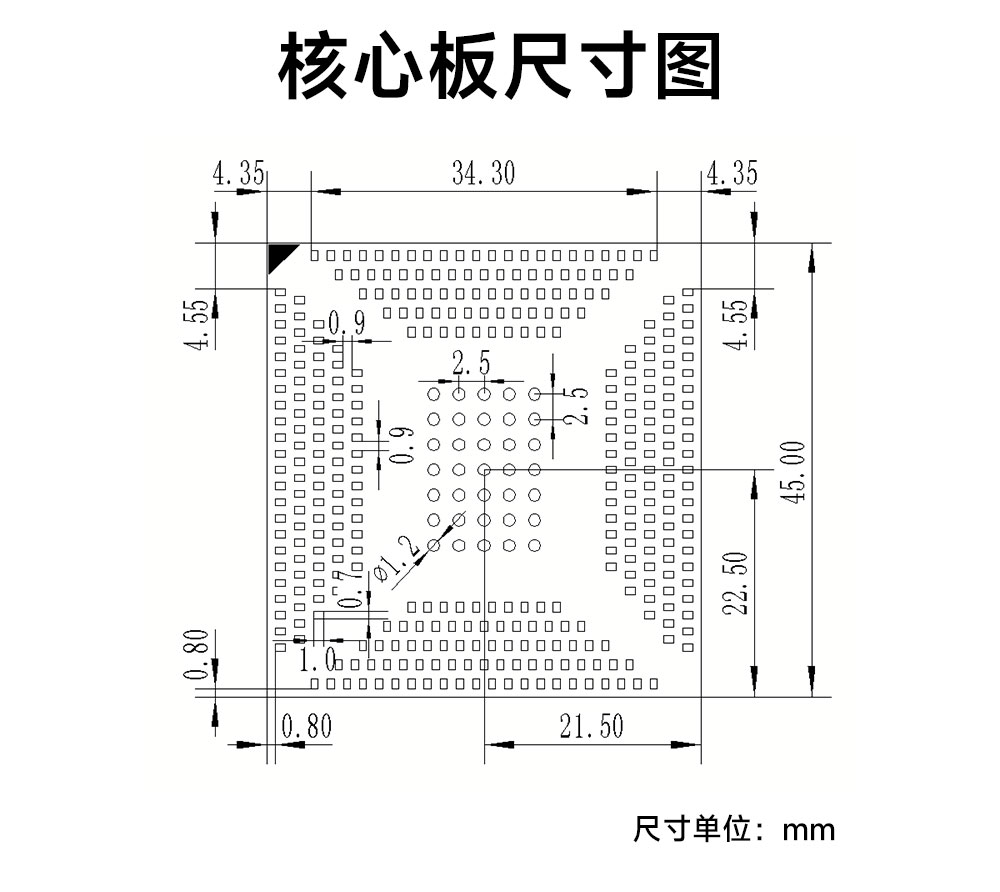

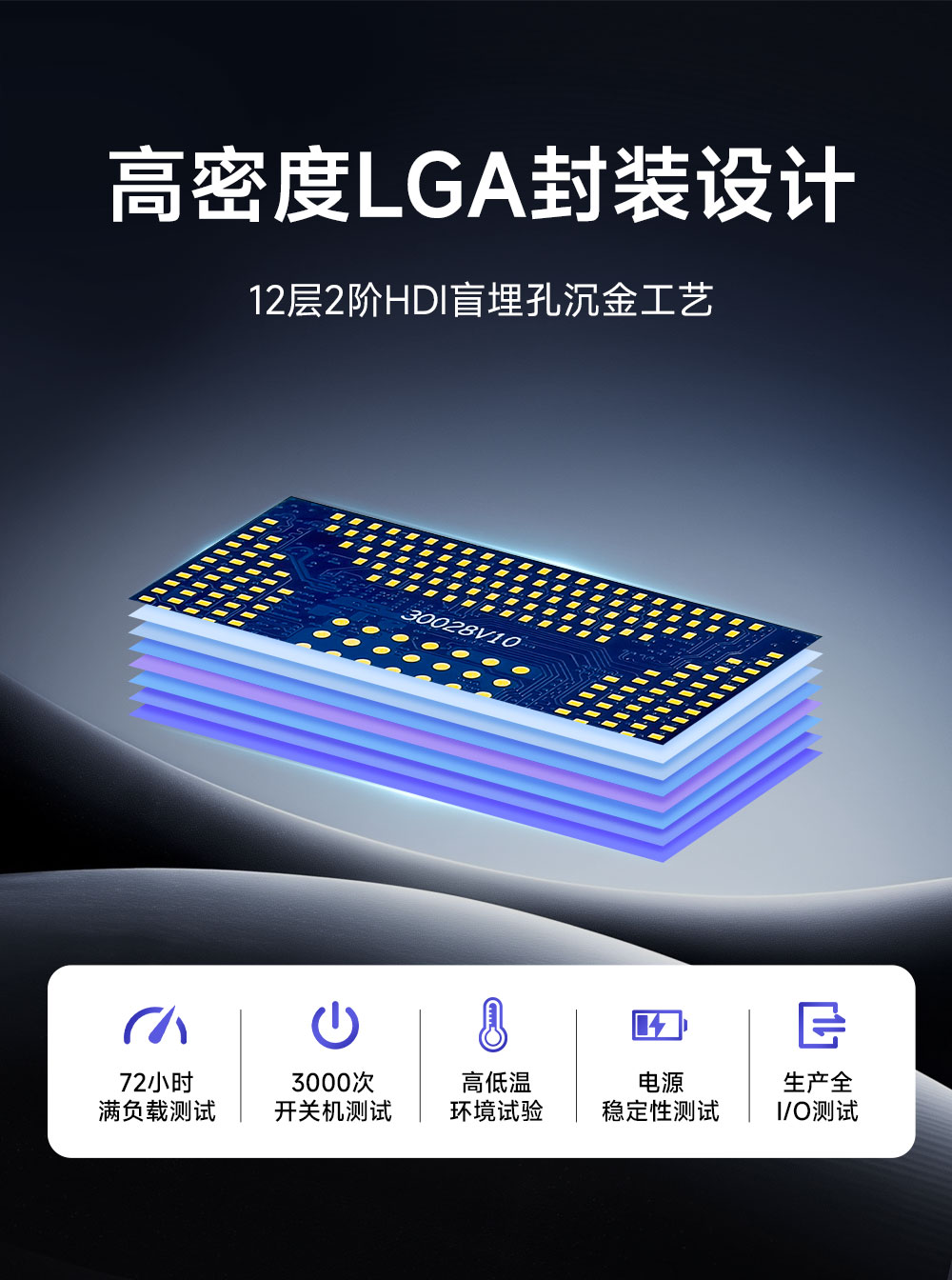

| LGA | Pin Name | MPU | Power Rail | Type | Comment |
| A01 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A02 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A03 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A04 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A05 | DGND | / | DGND/0.0V | GND | |
| A06 | DGND | / | DGND/0.0V | GND | |
| A07 | PC3 | Y3 | CLDO1/1.8V | I/O | |
| A08 | PC2 | V5 | CLDO1/1.8V | I/O | |
| A09 | PC4 | Y4 | CLDO1/1.8V | I/O | |
| A10 | DGND | / | DGND/0.0V | GND | |
| A11 | GPADC3-0 | H27 | ALDO4/1.8V | AI | |
| A12 | DGND | / | DGND/0.0V | GND | |
| A13 | DGND | / | DGND/0.0V | GND | |
| A14 | AP-CK24M-OUT | AH28 | ALDO4/1.8V | AO | |
| A15 | AP-CK32K-OUT | AF28 | RTC/1.8V | AO | 1nF pull down, 10KΩ pull up |
| A16 | DGND | / | DGND/0.0V | GND | |
| A17 | DGND | / | DGND/0.0V | GND | |
| A18 | DGND | / | DGND/0.0V | GND | |
| A19 | DGND | / | DGND/0.0V | GND | |
| A20 | PA_GPADC06 | G29 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A21 | PA_GPADC02 | F27 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A22 | PA_GPADC09 | H26 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A23 | PI12 | F21 | DCDC4/3.3V | I/O | |
| A24 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A25 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A26 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A27 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A28 | DGND | / | DGND/0.0V | GND | |
| A29 | PC12 | Y5 | CLDO1/1.8V | I/O | |
| A30 | PC7 | Y7 | CLDO1/1.8V | I/O | |
| A31 | DGND | / | DGND/0.0V | GND | |
| A32 | GPADC1-0 | J29 | ALDO4/1.8V | AI | 1nF pull down |
| A33 | GPADC1-1 | H28 | ALDO4/1.8V | AI | 1nF pull down |
| A34 | GPADC1-2 | J27 | ALDO4/1.8V | AI | 1nF pull down |
| A35 | GPADC1-3 | J28 | ALDO4/1.8V | AI | 1nF pull down |
| A36 | DGND | / | DGND/0.0V | GND | |
| A37 | DGND | / | DGND/0.0V | GND | |
| A38 | DGND | / | DGND/0.0V | GND | |
| A39 | DGND | / | DGND/0.0V | GND | |
| A40 | DGND | / | DGND/0.0V | GND | |
| A41 | PA_GPADC05 | F28 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A42 | PA_GPADC03 | E28 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A43 | PA_GPADC04 | E29 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A44 | PA_GPADC07 | G28 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A45 | PA_GPADC08 | G27 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| A46 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A47 | VDD_IN_5V | / | VDD_IN_5/5.0V | PWR | External input 5V |
| A48 | DGND | / | DGND/0.0V | GND | |
| A49 | DGND | / | DGND/0.0V | GND | |
| A50 | GPADC2-5 | N27 | ALDO4/1.8V | AI | |
| A51 | GPADC2-6 | N28 | ALDO4/1.8V | AI | |
| A52 | GPADC2-8 | P26 | ALDO4/1.8V | AI | |
| A53 | GPADC2-9 | P27 | ALDO4/1.8V | AI | |
| A54 | GPADC2-4 | M28 | ALDO4/1.8V | AI | |
| A55 | GPADC2-7 | N29 | ALDO4/1.8V | AI | |
| A56 | DGND | / | DGND/0.0V | GND | |
| A57 | DGND | / | DGND/0.0V | GND | |
| A58 | DGND | / | DGND/0.0V | GND | |
| A59 | DGND | / | DGND/0.0V | GND | |
| A60 | DGND | / | DGND/0.0V | GND | |
| A61 | DGND | / | DGND/0.0V | GND | |
| A62 | DGND | / | DGND/0.0V | GND | |
| A63 | DGND | / | DGND/0.0V | GND | |
| A64 | DGND | / | DGND/0.0V | GND | |
| A65 | VCC33-IO | / | CLDO3/3.3V | PWR | Core board outputs 3V3 |
| A66 | VCC33-IO | / | CLDO3/3.3V | PWR | Core board outputs 3V3 |
| A67 | DGND | / | DGND/0.0V | GND | |
| A68 | DGND | / | DGND/0.0V | GND | |
| A69 | LRADC | P28 | ALDO4/1.8V | AI | |
| A70 | GPADC1-7 | K26 | ALDO4/1.8V | AI | |
| A71 | GPADC1-8 | L28 | ALDO4/1.8V | AI | |
| A72 | GPADC1-9 | M24 | ALDO4/1.8V | AI | |
| A73 | DGND | / | DGND/0.0V | GND | |
| A74 | DGND | / | DGND/0.0V | GND | |
| A75 | DGND | / | DGND/0.0V | GND | |
| A76 | DGND | / | DGND/0.0V | GND | |
| A77 | DGND | / | DGND/0.0V | GND | |
| A78 | DGND | / | DGND/0.0V | GND | |
| A79 | DGND | / | DGND/0.0V | GND | |
| A80 | DGND | / | DGND/0.0V | GND | |
| A81 | DGND | / | DGND/0.0V | GND | |
| A82 | DGND | / | DGND/0.0V | GND | |
| A83 | GPADC2-0 | L27 | ALDO4/1.8V | AI | |
| A84 | GPADC2-1 | M25 | ALDO4/1.8V | AI | |
| A85 | GPADC2-2 | M26 | ALDO4/1.8V | AI | |
| A86 | GPADC2-3 | M27 | ALDO4/1.8V | AI | |
| A87 | DGND | / | DGND/0.0V | GND | |
| A88 | DGND | / | DGND/0.0V | GND | |
| A89 | DGND | / | DGND/0.0V | GND | |
| A90 | DGND | / | DGND/0.0V | GND | |
| A91 | DGND | / | DGND/0.0V | GND | |
| A92 | DGND | / | DGND/0.0V | GND | |
| A93 | DGND | / | DGND/0.0V | GND | |
| B01 | PH4 | B6 | DCDC4/3.3V | I/O | |
| B02 | PH5 | A6 | DCDC4/3.3V | I/O | |
| B03 | PH7 | B7 | DCDC4/3.3V | I/O | |
| B04 | PH6 | C6 | DCDC4/3.3V | I/O | |
| B05 | DGND | / | DGND/0.0V | GND | |
| B06 | PL2 | W28 | ALDO3/3V3 | I/O | |
| B07 | PL3 | W29 | ALDO3/3V3 | I/O | |
| B08 | PB9 | AH26 | CLDO3/3.3V | I/O | |
| B09 | PB10 | AG26 | CLDO3/3.3V | I/O | |
| B10 | PL10 | AA27 | ALDO3/3V3 | I/O | |
| B11 | PL11 | AA28 | ALDO3/3V3 | I/O | |
| B12 | PB12 | AC23 | CLDO3/3.3V | I/O | |
| B13 | PB11 | AF25 | CLDO3/3.3V | I/O | |
| B14 | PI9 | E25 | DCDC4/3.3V | I/O | |
| B15 | PI8 | D25 | DCDC4/3.3V | I/O | |
| B16 | PI11 | E21 | DCDC4/3.3V | I/O | |
| B17 | DGND | / | DGND/0.0V | GND | |
| B18 | U3-PCIE21-RXP | B23 | CLDO1/1.8V | AI | |
| B19 | U3-PCIE21-RXN | A23 | CLDO1/1.8V | AI | |
| B20 | DGND | / | DGND/0.0V | GND | |
| B21 | PCIE21-REFCLKP | B24 | CLDO1/1.8V | AI/O | |
| B22 | PCIE21-REFCLKN | A24 | CLDO1/1.8V | AI/O | |
| B23 | PB13 | AJ25 | CLDO3/3.3V | I/O | |
| B24 | PB14 | AH25 | CLDO3/3.3V | I/O | |
| B25 | PB4 | AE23 | CLDO3/3.3V | I/O | |
| B26 | PB5 | AD23 | CLDO3/3.3V | I/O | |
| B27 | DGND | / | DGND/0.0V | GND | |
| B28 | DGND | / | DGND/0.0V | GND | |
| B29 | DGND | / | DGND/0.0V | GND | |
| B30 | DGND | / | DGND/0.0V | GND | |
| B31 | PL12 | AB26 | ALDO3/3V3 | I/O | |
| B32 | PL13 | AB25 | ALDO3/3V3 | I/O | |
| B33 | DGND | / | DGND/0.0V | GND | |
| B34 | DGND | / | DGND/0.0V | GND | |
| B35 | PI10 | D21 | DCDC4/3.3V | I/O | |
| B36 | PI7 | B26 | DCDC4/3.3V | I/O | |
| B37 | PI6 | A27 | DCDC4/3.3V | I/O | |
| B38 | PI16 | B25 | DCDC4/3.3V | I/O | |
| B39 | PI15 | A26 | DCDC4/3.3V | I/O | |
| B40 | U3-PCIE21-TXP | B22 | CLDO1/1.8V | AO | |
| B41 | U3-PCIE21-TXN | A22 | CLDO1/1.8V | AO | |
| B42 | PL4 | AA29 | ALDO3/3V3 | I/O | |
| B43 | PL5 | Y27 | ALDO3/3V3 | I/O | |
| B44 | PL7 | Y25 | ALDO3/3V3 | I/O | |
| B45 | PL6 | Y26 | ALDO3/3V3 | I/O | |
| B46 | DGND | / | DGND/0.0V | GND | |
| B47 | DGND | / | DGND/0.0V | GND | |
| B48 | DGND | / | DGND/0.0V | GND | |
| B49 | DGND | / | DGND/0.0V | GND | |
| B50 | PM4 | AC29 | BLDO2/1.8V | I/O | |
| B51 | PM2 | AD28 | BLDO2/1.8V | I/O | |
| B52 | / | / | / | N/A | |
| B53 | PM3 | AC27 | BLDO2/1.8V | I/O | |
| B54 | DGND | / | DGND/0.0V | GND | |
| B55 | DGND | / | DGND/0.0V | GND | |
| B56 | PI13 | D23 | DCDC4/3.3V | I/O | |
| B57 | PI14 | E23 | DCDC4/3.3V | I/O | |
| B58 | DGND | / | DGND/0.0V | GND | |
| B59 | DGND | / | DGND/0.0V | GND | |
| B60 | PF3_SDC0-CMD | AG22 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B61 | PF6 | AF21 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B62 | PF2_SDC0-CLK | AH22 | CLDO3/3.3V | I/O | 33Ω in series, 1.8V for SDIO and 3.3V for GPIO |
| B63 | DGND | / | DGND/0.0V | GND | |
| B64 | PL8 | AB28 | ALDO3/3V3 | I/O | |
| B65 | PL9 | AB27 | ALDO3/3V3 | I/O | |
| B66 | PM0 | AD27 | BLDO2/1.8V | I/O | |
| B67 | PM1 | AE29 | BLDO2/1.8V | I/O | |
| B68 | PM5 | AC28 | BLDO2/1.8V | I/O | |
| B69 | PG9 | V28 | BLDO1/3.3V | I/O | |
| B70 | PG8 | V27 | BLDO1/3.3V | I/O | |
| B71 | PF4_SDC0-D3 | AJ23 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B72 | PF4_SDC0-D2 | AH23 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B73 | PF4_SDC0-D1 | AH21 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B74 | PF4_SDC0-D0 | AG21 | CLDO3/3.3V | I/O | 1.8V for SDIO and 3.3V for GPIO |
| B75 | PB3 | AF23 | CLDO3/3.3V | I/O | |
| B76 | PB0 | AC21 | CLDO3/3.3V | I/O | |
| B77 | PB1 | AB21 | CLDO3/3.3V | I/O | |
| B78 | PB2 | AG24 | CLDO3/3.3V | I/O | |
| B79 | PG6 | T24 | BLDO1/3.3V | I/O | |
| B80 | PG7 | T25 | BLDO1/3.3V | I/O | |
| C01 | LINEOUTP | D28 | ALDO4/1.8V | AO | |
| C02 | LINEOUTN | D29 | ALDO4/1.8V | AO | |
| C03 | DGND | / | DGND/0.0V | GND | |
| C04 | AP-RESET | AF27 | RTC/1.8V | I/O | 1nF pull down, 100Ω in series, 10KΩ pull up |
| C05 | AP-PWRON | / | RTC/1.8V | DI | 100nF pull down, 100Ω in series |
| C06 | / | / | / | N/A | |
| C07 | PG5_SDC1-D3 | U28 | BLDO1/3.3V | I/O | |
| C08 | PG4_SDC1-D2 | U29 | BLDO1/3.3V | I/O | |
| C09 | PG3_SDC1-D1 | R27 | BLDO1/3.3V | I/O | |
| C10 | PG2_SDC1-D0 | R28 | BLDO1/3.3V | I/O | |
| C11 | DGND | / | DGND/0.0V | GND | |
| C12 | PE7_LB | E13 | DCDC4/3.3V | I/O | |
| C13 | PE6_LB | D13 | DCDC4/3.3V | I/O | |
| C14 | PE5_LB | E11 | DCDC4/3.3V | I/O | |
| C15 | PE4_LB | F11 | DCDC4/3.3V | I/O | |
| C16 | PE3_LB | G11 | DCDC4/3.3V | I/O | |
| C17 | PE2_LB | F9 | DCDC4/3.3V | I/O | |
| C18 | PE1_LB | G9 | DCDC4/3.3V | I/O | |
| C19 | PE0_LB | B9 | DCDC4/3.3V | I/O | |
| C20 | DGND | / | DGND/0.0V | GND | |
| C21 | PD12_LCD_LV1-D1P | F1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C22 | PD14_LCD_LV1-D2P | G1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C23 | PD13_LCD_LV1-D1N | F2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C24 | USB0-DM | B20 | CLDO3/3.3V | AI/O | |
| C25 | USB0-DP | A20 | CLDO3/3.3V | AI/O | |
| C26 | DGND | / | DGND/0.0V | GND | |
| C27 | FEL | AD21 | CLDO3/3.3V | DI | 1nF pull down, 100Ω in series |
| C28 | AP-NMI | AE28 | RTC/1.8V | I/O | 1nF pull down, 10KΩ pull up |
| C29 | PG13 | U27 | BLDO1/3.3V | I/O | |
| C30 | PG14 | P24 | BLDO1/3.3V | I/O | |
| C31 | PG1_SDC1-CMD | T27 | BLDO1/3.3V | I/O | |
| C32 | PG0_SDC1-CLK | R29 | BLDO1/3.3V | I/O | 33Ω in series |
| C33 | DGND | / | DGND/0.0V | GND | |
| C34 | DGND | / | DGND/0.0V | GND | |
| C35 | PE13_LB | C9 | DCDC4/3.3V | I/O | |
| C36 | PE17_LB | F13 | DCDC4/3.3V | I/O | |
| C37 | PE8_LB | E9 | DCDC4/3.3V | I/O | |
| C38 | PE9_LB | D11 | DCDC4/3.3V | I/O | |
| C39 | PK9_LB_MIB-D1P | A14 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C40 | PK5_LB_MIA-CKP | A12 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C41 | PK2_LB_MIA-D1N | B11 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C42 | PK0_LB_MIA-D0N | B13 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C43 | DGND | / | DGND/0.0V | GND | |
| C44 | PD11_LCD_LV1-D0N | E2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C45 | PD15_LCD_LV1-D2N | G2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C46 | USB1-DM | B21 | CLDO3/3.3V | AI/O | |
| C47 | USB1-DP | A21 | CLDO3/3.3V | AI/O | |
| C48 | DGND | / | DGND/0.0V | GND | |
| C49 | PG10 | V26 | BLDO1/3.3V | I/O | |
| C50 | PG12 | T26 | BLDO1/3.3V | I/O | |
| C51 | PG11 | V25 | BLDO1/3.3V | I/O | |
| C52 | PD18_LCD_LV1-D3P | J1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C53 | PD19_LCD_LV1-D3N | J2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C54 | PH12 | C7 | DCDC4/3.3V | I/O | |
| C55 | PH13 | B8 | DCDC4/3.3V | I/O | |
| C56 | PE12_LB | A10 | DCDC4/3.3V | I/O | |
| C57 | PE11_LB | C10 | DCDC4/3.3V | I/O | |
| C58 | PE10_LB | D9 | DCDC4/3.3V | I/O | |
| C59 | PK11_LB_MIB-CKP | A15 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C60 | PK7_LB_MIB-D0P | A16 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C61 | PK4_LB_MIA-CKN | B12 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C62 | PK1_LB_MIA-D0P | A13 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C63 | DGND | / | DGND/0.0V | GND | |
| C64 | PD10_LCD_LV1-D0P | E1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| C65 | PI2 | C28 | DCDC4/3.3V | I/O | |
| C66 | PI3 | C27 | DCDC4/3.3V | I/O | |
| C67 | PI5 | D27 | DCDC4/3.3V | I/O | |
| C68 | PI4 | C29 | DCDC4/3.3V | I/O | |
| C69 | PK16_LB_MIC-CKN | B18 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C70 | PK17_LB_MIC-CKP | A18 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C71 | PH9 | F7 | DCDC4/3.3V | I/O | |
| C72 | PH8 | G7 | DCDC4/3.3V | I/O | |
| C73 | PE15_LB | H13 | DCDC4/3.3V | I/O | |
| C74 | PE16_LB | G13 | DCDC4/3.3V | I/O | |
| C75 | PK15_LB_MIC-D1P | A17 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C76 | PK13_LB_MIC-D0P | A19 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C77 | PK10_LB_MIB-CKN | B15 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C78 | PK6_LB_MIB-D0N | B16 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C79 | PK3_LB_MIA-D1P | A11 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C80 | DGND | / | DGND/0.0V | GND | |
| C81 | PK18_LB_MID-D0N | D19 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C82 | PK19_LB_MID-D0P | E19 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C83 | PK21_LB_MID-D1P | D15 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C84 | PK20_LB_MID-D1N | E15 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C85 | PH1 | F5 | DCDC4/3.3V | I/O | |
| C86 | PH0 | G5 | DCDC4/3.3V | I/O | |
| C87 | PK22_LB_MID-CKN | E17 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C88 | PK23_LB_MID-CKP | D17 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C89 | DGND | / | DGND/0.0V | GND | |
| C90 | PK14_LB_MIC-D1N | B17 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C91 | PK12_LB_MIC-D0N | B19 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C92 | PK8_LB_MIB-D1N | B14 | DCDC4/3.3V | I/O | 1.8V for CSI and 3.3V for GPIO |
| C93 | PE14_LB | B10 | DCDC4/3.3V | I/O | |
| D01 | PD0_LCD_DSI-D0P | B5 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D02 | PD1_LCD_DSI-D0N | A5 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D03 | DGND | / | DGND/0.0V | GND | |
| D04 | PD4_LCD_DSI-CKP | B3 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D05 | PD5_LCD_DSI-CKN | A3 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D06 | DGND | / | DGND/0.0V | GND | |
| D07 | DGND | / | DGND/0.0V | GND | |
| D08 | PJ22_MII1-TXCK | P7 | DCDC4/3.3V | I/O | |
| D09 | PJ23_MII1-TXCTL | P6 | DCDC4/3.3V | I/O | |
| D10 | PJ30_MII1-TXD3 | M7 | DCDC4/3.3V | I/O | |
| D11 | PJ31_MII1-TXD2 | M6 | DCDC4/3.3V | I/O | |
| D12 | PJ20_MII1-TXD1 | R3 | DCDC4/3.3V | I/O | |
| D13 | PJ21_MII1-TXD0 | R2 | DCDC4/3.3V | I/O | |
| D14 | DGND | / | DGND/0.0V | GND | |
| D15 | PH14 | C8 | DCDC4/3.3V | I/O | |
| D16 | PH15 | A8 | DCDC4/3.3V | I/O | |
| D17 | PB6 | AD24 | CLDO3/3.3V | I/O | |
| D18 | PI1 | B28 | DCDC4/3.3V | I/O | |
| D19 | PI0 | B27 | DCDC4/3.3V | I/O | |
| D20 | DGND | / | DGND/0.0V | GND | |
| D21 | PH11 | D7 | DCDC4/3.3V | I/O | |
| D22 | PH10 | E7 | DCDC4/3.3V | I/O | |
| D23 | PD2_LCD_DSI-D1P | B4 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D24 | PD3_LCD_DSI-D1N | A4 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D25 | DGND | / | DGND/0.0V | GND | |
| D26 | PD8_LCD_DSI-D3P | D1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D27 | PD9_LCD_DSI-D3N | D2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D28 | DGND | / | DGND/0.0V | GND | |
| D29 | PJ27_MII1-RXD3 | M4 | DCDC4/3.3V | I/O | |
| D30 | PJ28_MII1-RXD2 | K1 | DCDC4/3.3V | I/O | |
| D31 | PJ16_MII1-RXD1 | M1 | DCDC4/3.3V | I/O | |
| D32 | PJ17_MII1-RXD0 | M3 | DCDC4/3.3V | I/O | |
| D33 | DGND | / | DGND/0.0V | GND | |
| D34 | PJ3_MII0-CLKIN | U3 | DCDC4/3.3V | I/O | |
| D35 | PJ10_MII0-2550M | U2 | DCDC4/3.3V | I/O | |
| D36 | DGND | / | DGND/0.0V | GND | |
| D37 | PB8 | AG25 | CLDO3/3.3V | I/O | |
| D38 | PB7 | AH24 | CLDO3/3.3V | I/O | |
| D39 | DGND | / | DGND/0.0V | GND | |
| D40 | PD17_LCD_LV1-CKN | H2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D41 | PD16_LCD_LV1-CKP | H1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D42 | DGND | / | DGND/0.0V | GND | |
| D43 | PD6_LCD_DSI-D2P | C1 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D44 | PD7_LCD_DSI-D2N | C2 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D45 | DGND | / | DGND/0.0V | GND | |
| D46 | PJ29_MII1-RXCK | K2 | DCDC4/3.3V | I/O | |
| D47 | PJ18_MII1-RXCTL | M2 | DCDC4/3.3V | I/O | |
| D48 | PJ19_MII1-CLKIN | L1 | DCDC4/3.3V | I/O | |
| D49 | PJ26_MII1-2550M | M5 | DCDC4/3.3V | I/O | |
| D50 | DGND | / | DGND/0.0V | GND | |
| D51 | PJ6_MII0-TXCK | T7 | DCDC4/3.3V | I/O | |
| D52 | PJ7_MII0-TXCTL | T6 | DCDC4/3.3V | I/O | |
| D53 | PJ9_MII0-MDIO | K5 | DCDC4/3.3V | I/O | |
| D54 | PJ8_MII0-MDC | P5 | DCDC4/3.3V | I/O | |
| D55 | DGND | / | DGND/0.0V | GND | |
| D56 | / | / | / | N/A | |
| D57 | / | / | / | N/A | |
| D58 | PD20_LCD_HSYNC | K6 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D59 | PD21_LCD_VSYNC | H6 | DCDC4/3.3V | I/O | 1.8V for LVDS and 3.3V for GPIO |
| D60 | PD22 | H5 | DCDC4/3.3V | I/O | |
| D61 | DGND | / | DGND/0.0V | GND | |
| D62 | PJ25_MII1-MDIO | K3 | DCDC4/3.3V | I/O | |
| D63 | PJ24_MII1-MDC | K4 | DCDC4/3.3V | I/O | |
| D64 | DGND | / | DGND/0.0V | GND | |
| D65 | PJ14_MII0-TXD3 | T4 | DCDC4/3.3V | I/O | |
| D66 | PJ15_MII0-TXD2 | T5 | DCDC4/3.3V | I/O | |
| D67 | PJ4_MII0-TXD1 | P4 | DCDC4/3.3V | I/O | |
| D68 | PJ5_MII0-TXD0 | T3 | DCDC4/3.3V | I/O | |
| D69 | PJ2_MII0-RXCTL | P3 | DCDC4/3.3V | I/O | |
| D70 | DGND | / | DGND/0.0V | GND | |
| D71 | PD23 | H4 | DCDC4/3.3V | I/O | |
| D72 | DGND | / | DGND/0.0V | GND | |
| D73 | PA_GPADC00 | H24 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| D74 | PA_GPADC01 | H25 | CLDO4/3.3V | I/O | 1.8V for ADC and 3.3V for GPIO |
| D75 | DGND | / | DGND/0.0V | GND | |
| D76 | PJ11_MII0-RXD3 | N2 | DCDC4/3.3V | I/O | |
| D77 | PJ12_MII0-RXD2 | P2 | DCDC4/3.3V | I/O | |
| D78 | PJ0_MII0-RXD1 | P1 | DCDC4/3.3V | I/O | |
| D79 | PJ1_MII0-RXD0 | N3 | DCDC4/3.3V | I/O | |
| D80 | PJ13_MII0-RXCK | T2 | DCDC4/3.3V | I/O | |
| E01 | DGND | / | DGND/0.0V | GND | |
| E02 | DGND | / | DGND/0.0V | GND | |
| E03 | DGND | / | DGND/0.0V | GND | |
| E04 | DGND | / | DGND/0.0V | GND | |
| E05 | DGND | / | DGND/0.0V | GND | |
| E06 | DGND | / | DGND/0.0V | GND | |
| E07 | DGND | / | DGND/0.0V | GND | |
| E08 | DGND | / | DGND/0.0V | GND | |
| E09 | DGND | / | DGND/0.0V | GND | |
| E10 | DGND | / | DGND/0.0V | GND | |
| E11 | DGND | / | DGND/0.0V | GND | |
| E12 | DGND | / | DGND/0.0V | GND | |
| E13 | DGND | / | DGND/0.0V | GND | |
| E14 | DGND | / | DGND/0.0V | GND | |
| E15 | DGND | / | DGND/0.0V | GND | |
| E16 | DGND | / | DGND/0.0V | GND | |
| E17 | DGND | / | DGND/0.0V | GND | |
| E18 | DGND | / | DGND/0.0V | GND | |
| E19 | DGND | / | DGND/0.0V | GND | |
| E20 | DGND | / | DGND/0.0V | GND | |
| E21 | DGND | / | DGND/0.0V | GND | |
| E22 | DGND | / | DGND/0.0V | GND | |
| E23 | DGND | / | DGND/0.0V | GND | |
| E24 | DGND | / | DGND/0.0V | GND | |
| E25 | DGND | / | DGND/0.0V | GND | |
| E26 | DGND | / | DGND/0.0V | GND | |
| E27 | DGND | / | DGND/0.0V | GND | |
| E28 | DGND | / | DGND/0.0V | GND | |
| E29 | DGND | / | DGND/0.0V | GND | |
| E30 | DGND | / | DGND/0.0V | GND | |
| E31 | DGND | / | DGND/0.0V | GND | |
| E32 | DGND | / | DGND/0.0V | GND | |
| E33 | DGND | / | DGND/0.0V | GND | |
| E34 | DGND | / | DGND/0.0V | GND | |
| E35 | DGND | / | DGND/0.0V | GND |
| 在线购买 |
| 【官方淘宝】：https://item.taobao.com |
| 【京东商城】：https://i-item.jd.com |
| 【阿里巴巴】：https://detailpreview.1688.com |
| 批量采购/定制产品 |
| 【销售专线】：4000-330-990 7x24小时销售服务热线 |
| 【联系邮箱】：support@cdebyte.com |
| 技术咨询 |
| 【在线提交】：https://www.ebyte.com/apple-technology.html |
| 【联系邮箱】：support@cdebyte.com |
| 产品 型号 | 处理器型号 | 处理器主频Hz | 内存容量MB | 存储容量MB | 工作电压V | 接口形式 | 产品尺寸mm | 工作温度℃ | 功能特点 | 技术 手册 | 样品 购买 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECK10-135D5E8-C | STM32MP135DAF7 | 1G | 512 | 8GB | 5 | 金手指 | 67.6*30*4.5 | 0⁓70 | 高可靠嵌入式核心板，可用于服务器、网关等算力控制场景，金手指封装方便更换，低功耗 | ||
| ECK10-135D2-C | STM32MP135DAF7 | 1G | 256 | 0 | 5 | 金手指 | 67.6*30*4.5 | 0⁓70 | 高可靠嵌入式核心板，可用于服务器、网关等算力控制场景，金手指封装方便更换，低功耗 | ||
| ECK33-BCE2E16-I | T536MX-CEX | 1.6G | 2GB | 16GB | 5 | LGA | 45*43*3.5 | -40~+85 | 高性能四核A55，多核异构ARM+RISC-V，ECC保护，LPDDR4内存，工业级，支持Linux； | ||
| ECK33-B2N4E32-I | T536MX-CEN2 | 1.6G | 4GB | 32GB | 5 | LGA | 45*43*3.5 | -40~+85 | 高性能四核A55，人工智能2TOPS NPU，多核异构ARM+RISC-V，ECC保护，LPDDR4内存，工业级，支持Linux； | ||
| ECK32-T527B4E32-N | T527M/MN | 1.8G | 4GB | 32GB | 5.0 | LGA | 45*43*3.5 | -25~85 | 高性能八核A55，集成GPU，多核异构ARM+RISC-V，LPDDR4内存，宽温级，高性价比，支持Linux； | ||
| ECK32-T527B2E16-I | T527M/MN | 1.8G | 2GB | 16GB | 5.0 | LGA | 45*43*3.5 | -40~85 | 高性能八核A55，集成GPU，多核异构ARM+RISC-V，LPDDR4内存，工业级，高性价比，支持Linux； | ||
| ECK32-T527BN4E32-N | T527M/MN | 1.8G | 4GB | 32GB | 5.0 | LGA | 45*43*3.5 | -25~85 | 高性能八核A55，人工智能2TOPS NPU，集成GPU，多核异构ARM+RISC-V，LPDDR4内存，宽温级，支持Linux； | ||
| ECK32-T527BN4E32-I | T527M/MN | 1.8G | 4GB | 32GB | 5.0 | LGA | 45*43*3.5 | -40~85 | 高性能八核A55，人工智能2TOPS NPU，集成GPU，多核异构ARM+RISC-V，LPDDR4内存，工业级，支持Linux； | ||
| ECK30-T13IC1E8-I | T113-i | 1.2G | 1G | 8G | 5 | BTB | 46*36*5.3mm | -40℃~85℃ | 工业级，国产化，多核异构，高性价比，高可靠性 | ||
| ECK30-T13IC5E8-I | T113-i | 1.2G | 512 | 8G | 5 | BTB | 46*36*5.3 | -40~85 | 工业级，国产化高性能，多核异构，高性价比，高可靠性 | ||
| ECK30-T13IC2N2-I | T113-i | 1.2G | 256 | 256 | 5 | BTB | 46*36*5.3 | -40~85 | 工业级，国产化高性能，多核异构，高性价比，高可靠性 | ||
| ECK20-6Y28C5E8-I | MCIMX6Y2CVM08AB | 792M | 512 | 8G | 5 | BTB | 46*36*6.8 | -40~85 | 工业级,低功耗,高性价比,高可靠性,支持Linux,支持QT | ||
| ECK20-6Y28C5E8-C | MCIMX6Y2CVM08AB | 792M | 512 | 8G | 5 | BTB | 46*36*6.8 | -0~70 | 低功耗，高性价比，高可靠性，支持Linux，支持QT | ||
| ECK20-6Y28C2N5-I | MCIMX6Y2CVM08AB | 792M | 256 | 512 | 5 | BTB | 46*36*6.8 | -40~85 | 工业级，低功耗，高性价比，高可靠性，支持Linux，支持QT | ||
| ECK31-T13SA2MN2M | T113-S4 | 1.2G | 256 | 256 | 5 | 邮票孔 | 35*29*3.0 | -25 - 85 | 全国产、极小尺寸、双核Cortex-A7、高清显示、高性价比、支持Linux、支持QT | ||
| ECK31-T13SA2ME8G | T113-S4 | 1.2G | 256 | 8GB | 5 | 邮票孔 | 35*29*3.0 | -25 - 85 | 全国产、极小尺寸、双核Cortex-A7、高清显示、高性价比、支持Linux、支持QT | ||
| ECK31-T13SA1MN2M | T113-S3 | 1.2G | 128 | 256 | 5 | 邮票孔 | 35*29*3.0 | -25 - 85 | 全国产、极小尺寸、双核Cortex-A7、高清显示、高性价比、支持Linux、支持QT | ||
| ECK31-T13SA1ME8G | T113-S3 | 1.2G | 128 | 8GB | 5 | 邮票孔 | 35*29*3.0 | -25 - 85 | 全国产、极小尺寸、双核Cortex-A7、高清显示、高性价比、支持Linux、支持QT | ||
| ECK30-T13IA1GE8G-I | T113-i | 1.2G | 1G | 8G | 5 | 邮票孔 | 45*35*3.6 | -40~ +85 | 全国产工业级，双核ARM+RISC-V，高清显示，高可靠性，支持Linux，支持QT | ||
| ECK30-T13IA5ME8G-I | T113-i | 1.2G | 512 | 8G | 5 | 邮票孔 | 45*35*3.6 | -40~ +85 | 全国产工业级，双核ARM+RISC-V，高清显示，高可靠性，支持Linux，支持QT | ||
| ECK30-T13IA2MN2M-I | T113-i | 1.2G | 256 | 256 | 5 | 邮票孔 | 45*35*3.6 | -40~ +85 | 全国产工业级，双核ARM+RISC-V，高清显示，高可靠性，支持Linux，支持QT | ||
| ECK20-6Y28A5ME8G-I | MCIMX6Y2CVM08AB | 792M | 512 | 8GB | 5 | 邮票孔 | 38*38*3 | -40~+85 | 工业级，低功耗，高性价比，高可靠性，支持Linux，支持QT | ||
| ECK20-6Y28A5ME8G-C | MCIMX6Y2CVM08AB | 792M | 512 | 8GB | 5 | 邮票孔 | 38*38*3 | 0 ~ 70 | 低功耗，高性价比，高可靠性，支持Linux，支持QT | ||
| ECK20-6Y28A2MN5M-I | MCIMX6Y2CVM08AB | 792M | 256 | 512 | 5 | 邮票孔 | 38*38*3 | -40~+85 | 工业级，低功耗，高性价比，高可靠性，支持Linux，支持QT | ||
| ECK10-131A2M2M-I | STM32MP131AAF3 | 650M | 256 | 256 | 5 | 邮票孔 | 38*32*3.1 | -40~+85 | 工业级控制主板、高性价比，高可靠性，低功耗 | ||
| ECK10-135A5M5M-I | STM32MP135AAF3 | 650M | 512 | 512 | 5 | 邮票孔 | 38*32*3.1 | -40~+85 | 工业控制计算机、高性价比，高可靠性，低功耗，工业级 |
