| 产品 型号 | Type | Frequency Hz | Interface | Impedance match | Gain | VSWR | Size | Cable | Feature | 技术 手册 | 样品 购买 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TX433-BLG-20 | Fiberglass antenna | 410~450MHz | N-J | 50 | 4.0 | ≤1.5 | 200mm | - | Fiberglass antenna，High gain | ||

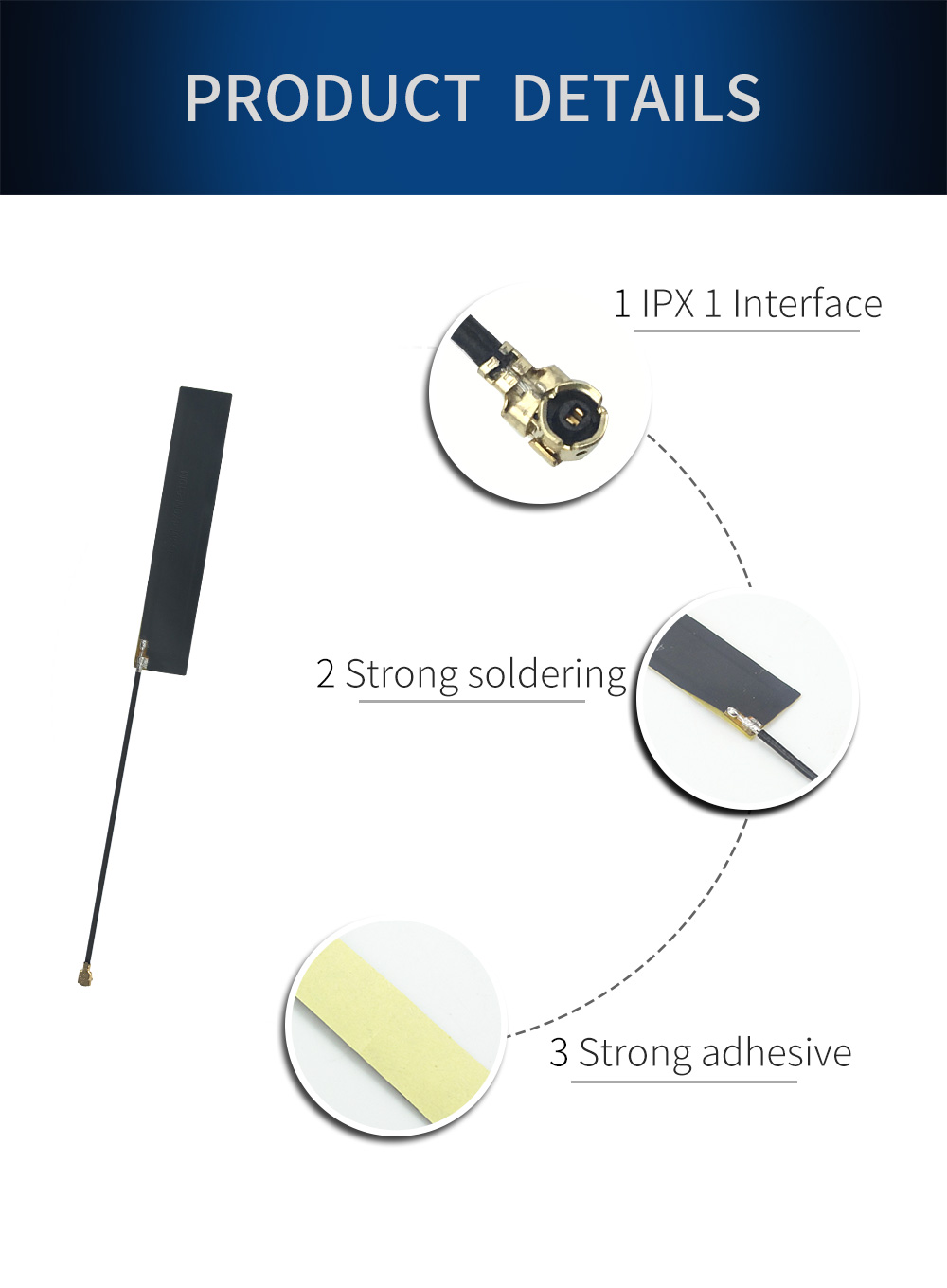

| TX433-FPC-5711 | Flexible antenna | 433MHz | IPX 1 Interface | 50 | 2.5 | ≤1.5 | 57mm*10.5mm | 68mm | FPC built-in antenna | ||
| TX433-JKD-20P | Rubber antenna | 433M | SMA-J | 50 | 4.0 | ≤1.5 | 200*φ13mm | - | Bendable stick, omnidirectional antenna | ||
| TX433-XPH-300 | Sucker antenna | 433M | SMA-J | 50 | 6.0 | ≤1.5 | 96.5cm | 300cm | Car sucker antenna, super high gain | ||
| TX433-XP-200 | Sucker antenna | 433M | SMA-J | 50 | 4.0 | ≤1.5 | 19cm | 200cm | Suction antenna, high gain | ||
| TX433-XPL-100 | Sucker antenna | 433M | SMA-J | 50 | 3.5 | ≤1.5 | 18.5cm | 100cm | Suction antenna, high gain | ||
| TX433-JKS-20 | Rubber antenna | 433M | SMA-J | 50 | 3.0 | ≤1.5 | 210mm | - | Bendable stick, omnidirectional antenna | ||
| TX433-JK-11 | Rubber antenna | 433M | SMA-J | 50 | 2.5 | ≤1.5 | 110mm | - | Rubber antenna | ||
| TX433-JWG-7 | Rubber antenna | 433M | SMA-J | 50 | 2.5 | ≤1.5 | 75mm | - | Rubber antenna，Omnidirectional antenna | ||
| TX433-JW-5 | Rubber antenna | 433M | SMA-J | 50 | 2.0 | ≤1.5 | 50mm | - | Rubber antenna，Omnidirectional antenna | ||
| TX433-PB-2626 | SMA-J Connector | 410MHz-450MHz | SMA-J | 50 | 8.0 | ≤1.5 | 258mm*258mm*33.5mm | 3m | Panel DirectionalAntenna | ||
| TX433-JZR-6 | SMA-J Connector | 400-480MHz | SMA-J | 50 | 3.0 | ≤1.5 | 60mm | - | U Band Walkie Talkie Antenna | ||
| TX433-JZ-4 | SMA-J Connector | 400-470MHz | SMA-J | 50 | 3.0 | ≤1.5 | 40mm | - | U Band Walkie Talkie Antenna | ||
| TX433-TB-300 | Sucker antenna | 423~443MHz | SMA-J | 50Ω | 5.0 | ≤1.5 | 210*Φ60mm | 3m | vertical high gain antenna | ||
| TX433-PCB-3207 | PCB antenna | 423~443MHz | IPX | 50Ω | 2.0 | ≤1.5 | 32*7mm | 100mm | vertical high gain antenna | ||
| TX433-JZ-10 | Rubber antenna | 400~470MHz | SMA-J | 50Ω | 3.0 | ≤1.5 | 100mm | - | vertical high gain antenna | ||
| TX433-JKD-20 | Rubber antenna | 400~470MHz | SMA-J | 50Ω | 3.0 | ≤1.5 | 200*φ13mm | - | vertical high gain antenna | ||
| TX433-FPC-4516 | Flexible antenna | 423~443MHz | IPX | 50Ω | 2.0 | ≤1.5 | 45*16*0.2mm | 120mm | vertical high gain antenna | ||
| TX433-FPC-3208 | Flexible antenna | 423~443MHz | IPX | 50Ω | 2.0 | ≤1.5 | 32*8*0.2mm | 100mm | vertical high gain antenna | ||
| TX433-FPC-2906 | Flexible antenna | 423~443MHz | welded | 50Ω | 2.0 | ≤1.5 | 29*6*0.2mm | 100mm | vertical high gain antenna | ||
| TX433-BLG-120 | Fiberglass antenna | 410~510MHz | N-J | 50Ω | 8.0 | ≤1.5 | 1200mm | - | vertical high gain antenna | ||
| TX433-BLG-48 | Fiberglass antenna | 410~510MHz | N-J | 50Ω | 5.0 | ≤1.5 | 480mm | - | vertical high gain antenna | ||
| TX433-JZG-6 | Straight Antenna | 433M | SMA-J | 50Ω | 2.5 | ≤1.5 | 22mm*Φ9mm | - | vertical high gain antenna | ||
| TX433-JZ-5 | Rubber antenna | 433M | SMA-J | 50Ω | 2.0 | ≤1.5 | 110mm*Φ10mm | - | vertical high gain antenna |
