[Frequency]：850.125MHz~930.125MHz
[Power]：22dBm
[Transmission type]：GPRS
[Interface Type]：RF to GPRS
[Weight]：255±5g
[Introduction]：E90-DTU (900SL22-GPRS) is a data transmission station from radio frequency to GPRS network server, which realizes the transparent data transmission between sub-1g and GPRS network. The sub-1g radio frequency transceiver is based on SEMTECH SX1262 radio frequency chip and supports LoRa spread spectrum technology.
| ParameterName | The parameter value |
| SupportFrequency | Quad-frequency: GSM850, EGSM900,DCS1800, PCS1900 Module can automatically search frequency Frequency selection can be set with theATcommand Conform to GSM Phase 2/2+EGSM900, DCS1800, PCS1900 |
| GPRS Connection characteristics | GPRS multi-slot class 12 (default), GPRS multi-slot class 1~12 (configurable), GPRS mobile station class B |
| GPRS Data features | GPRS data downlink transmission: up to 85.6 KBPS,GPRS uplink data transfer: up to 85.6 KBPS,Coding formats: cs-1, cs-2, cs-3 and cs-4,Supports the PAP (password verification protocol) protocol commonly used for PPP connections,Support for protocols commonly used for CHAP (query handshake authentication protocol). The built-in protocols:TCP/UDP/FTP/PPP/HTTP/NTP/MMS/SM TP/PING, etc. Support for unstructured supplementary data services (USSD). |
| The antenna interface | SMAinterface, NET signal output, 50ohm characteristic impedance |
| Transmission Power | Class 4 (2W)：GSM850 and EGSM900,Class 1 (1W)： DCS1800 and PCS1900 |
| RF Parameter | Value |
| The air rate | 2.4kbps，8 adjustable level （0.3、1.2、2.4、4.8、9.6、19.2、38.4、62.5kbps） |
| WOR role | receiver ,Can be configured as a receiver/sender |
| WOR cycle | 2000ms，500ms~4000ms, It can be configured as 500ms~4000ms |
| Transmission power | 22dBm,level 4 adjustable (22, 17, 13, 10dBm) |
| Transport mode | Transparent Transmission,Can be configured for transparent transmission or fixed-point transmission |
| The module address | 0~65535,Default address 0 |
| working frequency | 850.125MHz~930.125MHz,Default 868.125MHz, channel number 80,channel interval 1MHz |
| Receiving sensitivity | -138dbm@0.3kbps |
| Baud rate | 115200 bps, No modification supported |
| The antenna interface | SMAInterface,RF signal output, 50 ohm characteristic impedance |
| Electronic parameter | Value |
| Flow loss value (typical value) | 66.5mA@12V,Idle state, no data transmission |
| Working temperature | -30℃~+70℃,Extended to 40 ℃ ~ + 85 ℃ temperature |
| Working voltage | DC 8~28V，Recommend 12V/24V power supply |
| Size | 108*75*37mm，Overall size (excluding antenna) |
| 3GPP Frequency | 1 Timeslot | 2 Timeslot | 4 Timeslot |
| CS-1 | 9.05kbps | 18.1kbps | 36.2kbps |
| CS-2 | 13.4kbps | 26.8kbps | 53.6kbps |
| CS-3 | 15.6kbps | 31.2kbps | 62.4kbps |
| CS-4 | 21.4kbps | 42.8kbps | 85.6kbps |

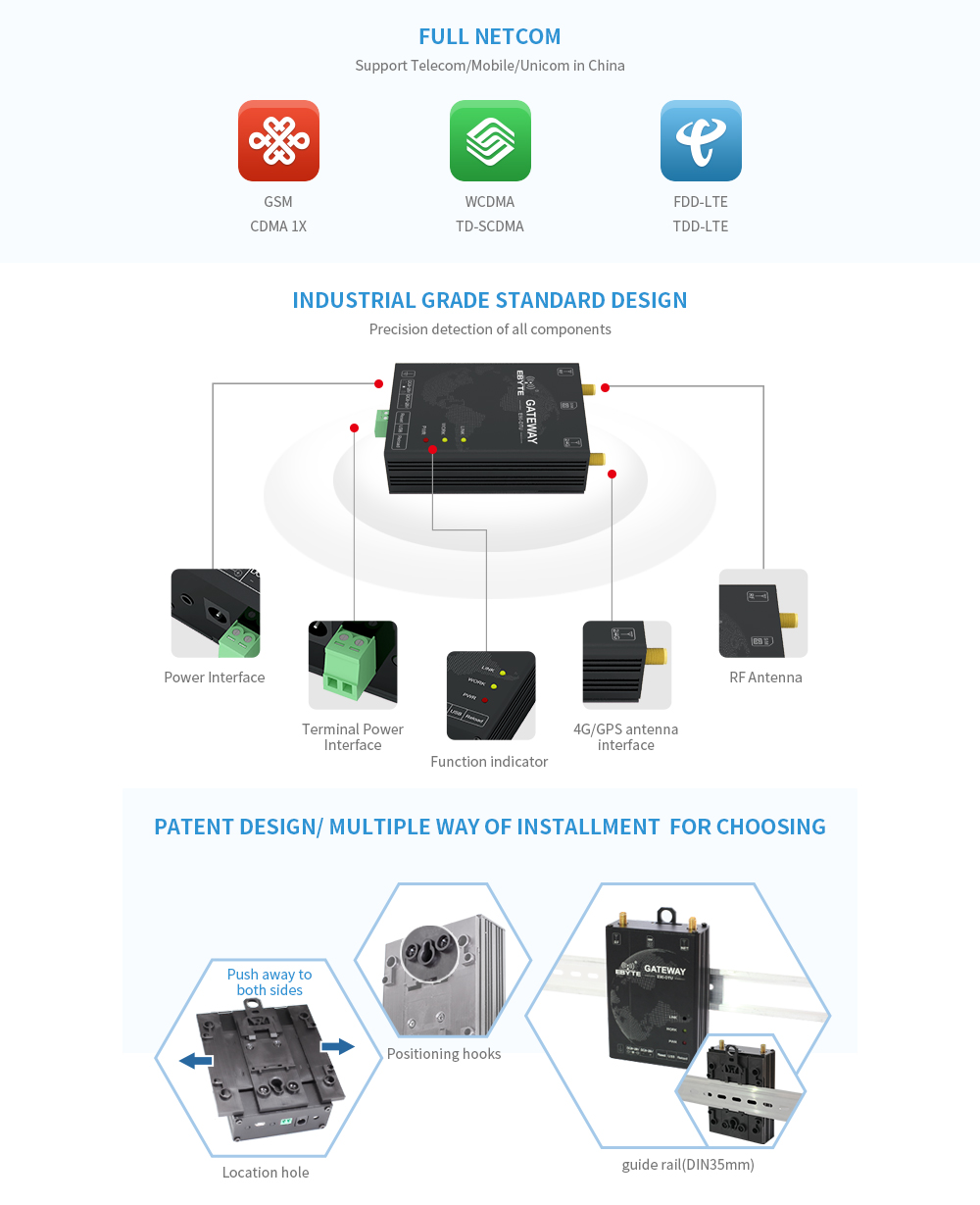

| No. | Name. | Function |
| 1 | Grounding screw | Ground connection |
| 2 | DC-IN | Power adapter interface, power supply range 8~28V, recommended 12V/24V |
| 3 | DC-IN- | Power reference ground |
| 4 | DC-IN+ | Power input, power supply range 8~28V, recommended 12V/24V |
| 5 | Reset | System reset button, long press time no requirement |
| 6 | USB | Micro USB： parameter configuration interface |
| 7 | Reload | Press 4~10s to restore the factory Settings |
| 8 | PWR | Red: power indicator |
| 9 | WORK | Yellow: data transmission indicator light; The light flashes when there is data transmission |
| 10 | LINK | Yellow: network indication, always on after net |
| 11 | NET | 4 G/GPRS antenna interface (SMA - K external thread hole, 50 Ω characteristic impedance) |
| 12 | SIM | SIM card slot |
| 13 | RF | RF antenna interface (SMA - K external thread hole, 50 Ω characteristic impedance) |
