[IC]:SX1262
[Frequency]:850~930MHz
[Power]:30dBm
[Distance]:10km
[Interface]:UART
[Weight]:4.9±0.1g

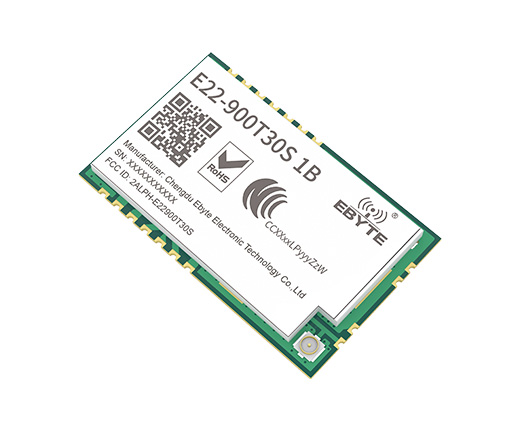

[Introduction]:E22-900T30S1B is a wireless serial port module (UART) based on SEMTECH's SX1262 RF chip. It has multiple transmission modes,working in the (850.125MHz~930.125MHz) frequency band, LoRa spread spectrum technology, TTL level output,compatible with 3.3V and 5V IO port voltage.
| RF Parameter | Value | Remark |
| Working frequency | 850.125~930.125 MHz | Support ISM band |
| Transmitting power | 30 dBm | Max. Power (1W) |
| Receiving sensitivity | -148 dBm | Air data rate is 2.4kbps |
| Air data rate | 0.3k~62.5kbps | Controlled via user's programming |
| Test distance | 10000m | Test condition：clear and open area, antenna gain: 5dBi，antenna height: 2.5m，air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
Size | 40.5 * 25 mm | |
Antenna type | IPEX / Stamp hole | |
Communication interface | UART | |
Package | SMD | |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5.0 | 5.5 | V | ≥5.0 V ensures output power |
| Communication level | - | 3.3 | - | V | For 5V TTL, it may be at risk of burning down |
| Transmitting current | - | 650 | - | mA | Instant power consumption |
| Receiving current | - | 16 | - | mA | |
| Sleep current | - | 2 | - | μA | Software is shut down |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| No. | Name | Direction | Function |
| 1 | M0 | Input （weak pull-up） | Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 2 | M1 | Input （weak pull-up） | Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 3 | RXD | Input | TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output. |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level.Can be configured as push-pull output (can be suspended). |
| 6 | VCC | Input | Power supply ：3.3~ 5.5V DC. |
| 7 | GND | Input | Ground. |
| 8 | NRST | Input | Module reset pin, low reset |
| 9 | GND | Input | Ground. |
| 10 | NC | Input | Can be suspended. |
| 11 | NC | Input | Can be suspended. |
| 12 | NC | Input/output | Can be suspended. |
| 13 | NC | Input/output | Can be suspended. |
| 14 | NC | Input/output | Can be suspended. |
| 15 | GND | - | Ground. |
| 16 | GND | - | Ground. |
| 17 | GND | - | Ground. |
| 18 | ANT | Output | High frequency signal output, 50Ω characteristic impedance. |
