E34-2G4H27D

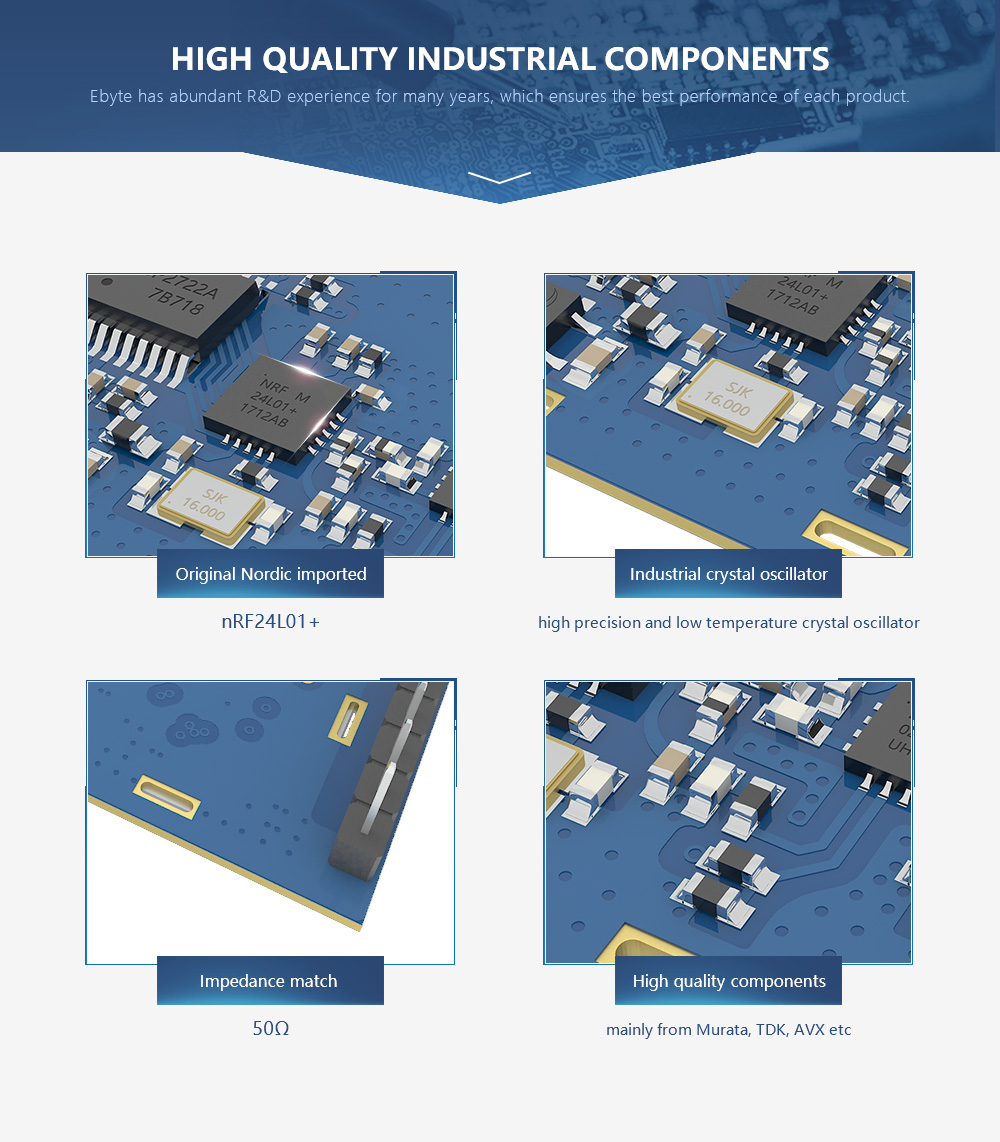

[IC]:nRF24L01+

[Frequency]:2.4~2.518GHz

[Power]:27dBm

[Distance]:5km

[Interface]:UART

[Introduction]:E34-2G4H27D is a 2.4G wireless transceiver module with high speed and long distance(can be transmitter and receiver both). The module features FEC (Forward Error Correction)algorithm.It can correct the interfered data packets automatically, so that the anti-interference ability improved.

E34-2G4H20D-EN概述特点自动跳频应用标题_02智能家庭_02工业遥控-EN (9)家用遥控_08无人机-EN (13)

RF ParameterValue
Remark
Working frequency
2400~2518 MHz

Default:  2400MHz

Transmitting power27 dBm

About 500mW

Receiving sensitivity
-102 dBm

Air data rate: 250kbps

Air data rate250k~2Mbps

Default: 250kbps

Test distance5000m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 250kbps


Hardware ParameterValue
Remark

Size

21 * 36 mm

Without SMA

Antenna type

SMA-K



Communication interface

UART

Baud rate: 1200~115200, default: 9600

Package

DIP



Buffer

256  bytes buffer

Automatically sub-packaging with 27 bytes per package


Electronic parameterMin.Typ.Max.UnitCondition
Power supply
3.35.05.5V
Communication level2.53.33.6V
Transmitting current
360400440mA27dBm(500mW)
Receiving current
19
2123mA

Sleep current
459
510561μA
Operating temperature
-4020
+85
Operating humidity
1060
90%
Storage temperature
-4020
+125


E34-2G4H27D_Size

Pin No.
Pin ItemPin DirectionPin Application
1M0
Input
(weak pull-up)
    Work with M1 & decide the four operating modes. Floating is not allowed, can be ground.
2M1Input
(weak pull-up)

    Work with M0 & decide the four operating modes. Floating is not allowed, can be ground.
3RXDInput
    TTL UART inputs, connects to external TXD (MCU, PC) output pin.
    Can be configured as open-drain or pull-up input
4TXDOutput

    TTL UART outputs, connects to external RXD (MCU, PC) input pin.
    Can be configured as open-drain or push-pull output

5AUXOutput

    To wake up the external MCU, during the procedure of self-check initialization, the pin

    outputs low level. Can be configured as open-drain output or push-pull output (floating

    is allowed).

6VCC
    Power supply 2.3V-5.2V DC
7GND
    Ground
8Fixing hole
    Fixing hole
9Fixing hole

    Fixing hole
10Fixing hole

    Fixing hole
