E30-433T20S3

[IC]:SI4438

[Frequency]:425~450.5MHz

[Power]:10~20dBm

[Distance]:2.5km

[Interface]:UART

[Weight]:2.0±0.1g

[Introduction]:E30-433T20S3 is a UART module based on Silicon Labs' SI4438. It features half-duplex with transparent transmission, SMD packing, TTL level output, WOR and 433MHz working frequency. This product has been mass-produced and can be used in a wide range of environments and industries.

E30-433T20S3-UART-YJ960

E30特点低功耗

RF ParameterValue
Remark
Working frequency
425~450.5 MHz

Support ISM freq. band

Transmitting power10~20 dBm

Default:  20dBm(About 100mW)

Receiving sensitivity
-114 dBm

Air data rate: 1kbps

Air data rate1k~25kbps

Default: 1kbps

Test distance2500m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 1kbps


Hardware ParameterValue
Remark

Size

16 * 26 mm



Antenna type

IPEX/External



Communication interface

UART

Baud rate: 1200~115200, default: 9600

Package

SMD



Buffer

512  bytes buffer

Automatically sub-packaging with 58 bytes per package


Electronic parameterMin.Typ.Max.UnitCondition
Power supply
2.35.05.0V
Communication level 3.3 V
Transmitting current
89 mA20dBm(100mW)
Receiving current

16 mA

Sleep current

4 μA
Operating temperature
-4020
+85
Operating humidity
1060
90%
Storage temperature
-4020
+125


E30-433T20S3_Size


       Order online
    【eBay】:https://www.ebay.com/usr/cdebyte
    【Aliexpress】:https://www.aliexpress.com/store/2798183
    【Alibaba】:https://www.alibaba.com


       For batch order/customized product
    【Sales hotline】:+86-28-61399028 Ext.812
    【E-mail】:service@cdebyte.com


       Technical support
    【Submit online】:http://www.ebyte.com/en/apple-technology.aspx
    【E-mail】:support@cdebyte.com

E30证书-EN

产品
型号
Interface IC Frequency
Hz
Power
dBm
Distance
km
Air
data
rate
Package Size
(mm)
Feature技术
手册
样品
购买
E30-400M30S(4463) SPI SI4463 433M 470M 30 5.6 1k~25k SMD 38.5*24 Long distance communication
E30-400M30S(4438) SPI SI4438 433M 470M 30 5.6 1k~25k SMD 38.5*24 Long communicaiton distance
E30-900MBL-01 USB - - - - - - 53*27mm E30 series module test board
E30-400MBL-01 USB - - - - - - 53*27mm E30 series module test board
E30-400M20S(4463) SPI SI4463 433M 470M 20 2.5 1k~25k SMD 20*14 Long transmission distance,Strong penetration diffraction
E30-900M30S SPI SI4463 868M 915M 30 5.6 1k~25k SMD 38.5*24 Long transmission distance,Strong penetration diffraction
E30-900M20S SPI SI4463 868M 915M 20 2.5 1k~25k SMD 20*14 Strong penetration diffraction,Strong penetration diffraction
E30-400M20S(4438) SPI SI4438 433M 470M 20 2.5 1k~25k SMD 20*14 Long transmission distance,Strong penetration diffraction

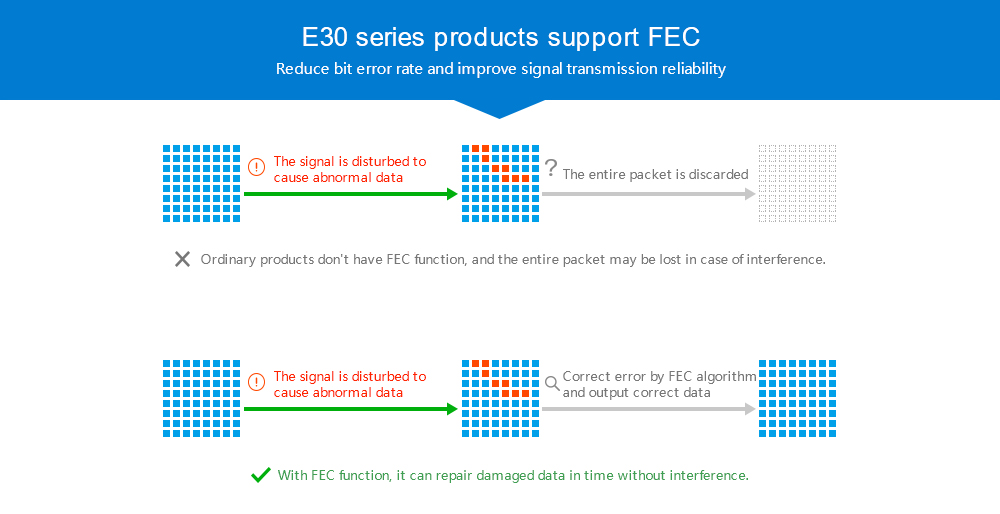

E30-433T20S3 UART SI4438 433M 20 2.5 1k~25k SMD 16*26 FEC , WOR
E30-DTU(433M37) 232/485 SI4438 433M 37 15 1k~25k Screwing/DB9 124*105*25 FEC , WOR
E30-DTU-490M20 232/485 SI4438 490M 20 2.5 1k~25k Screwing/DB9 82*62*25 FEC , WOR
E30-170T20D UART SI4463 170M 20 2.0 1k~25k DIP 21*36 Diffraction , FEC
E30-170T27D UART SI4463 170M 27 5.0 1k~25k DIP 24*43 Diffraction , FEC
E30-780T20S UART SI4463 780M 20 2.5 1k~25k SMD 17*30 FEC , WOR
E30-868T20S UART SI4463 868M 20 2.5 1k~25k SMD 17*30 FEC , WOR
E30-868T20D UART SI4463 868M 20 2.5 1k~25k DIP 21*36 FEC , WOR
E30-915T20D UART SI4463 915M 20 2.5 1k~25k DIP 21*36 FEC , WOR
E30-490T20D UART SI4438 490M 20 2.5 1k~25k DIP 21*36 FEC , WOR
E30-433T20S UART SI4438 433M 20 2.0 1k~25k SMD 17*30 FEC , WOR
E30-433T20D UART SI4438 433M 20 2.0 1k~25k DIP 21*36 FEC , WOR
E30-915T20S UART SI4463 915M 20 2.5 1k~25k SMD 17*30 FEC , WOR
E30-490T20S UART SI4438 490M 20 2.5 1k~25k SMD 17*30 FEC , WOR
