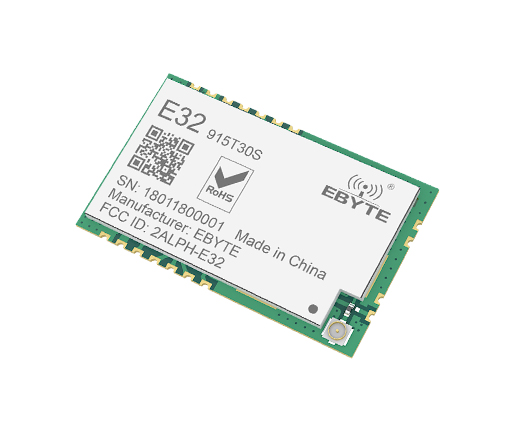

| RF Parameter | Value | Remark |
| Working frequency | 900~931 MHz | Default: 915MHz |
| Transmitting power | 21~30 dBm | Default: 30dBm（About 1W） |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps |
| Test distance | 8000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
| Size | 25 * 40.3 mm | |
| Antenna type | IPX/Stamp hole | |
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
| Package | SMD | |
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current | 560 | 600 | 660 | mA | 30dBm（1W） |
| Receiving current | 20 | 21 | 23 | mA | |
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| Pin No. | Pin Item | Pin Direction | Pin Application |
| 1 | GND | Input | Ground |
| 2 | VCC | Input | Power supply ：3.3~ 5.5V DC |
| 3 | AUX | Output | To indicate module ’ s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (can be suspended). |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output |
| 5 | RXD | Input | TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input. Ground |
| 6 | M1 | Input （weak pull-up） | Work with M0 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 7 | M0 | Input （weak pull-up） | Work with M1 to decide 4 working modes of module (not suspended, if not used, could be grounded). |
| 11 | ANT | output | High frequency signal output, 50 ohm characteristic impedance |
| 12 | GND | Ground | |
| 13 | GND | Ground | |
| 14 | GND | Ground | |
| 18 | PB0 | Input /Output | NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 19 | PB1 | Input /Output | NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 20 | PB3 | Input /Output | NC PIN, This pin needs to be dangling and the user does not need to connect(for later extension use) |
| 21 | +3.3V | Input | Power pins for program loading (suspended, no need for user to connect) |
| 22 | SWIM | Input | SWIM pin for program load (dangling, user does not need to connect) |
| 23 | GND | Input | Ground pins for program loading (dangling, no user connection required) |
| 24 | RESET | Input | Reset pins for program loading (dangling, no need for user to connect) |
