[Gain]:3.5dBi
[Interface]:SMA-J
[Standing wave (SWR) ]:≤1.5
[Frequency]:868MHz
[Resistance]:50Ω

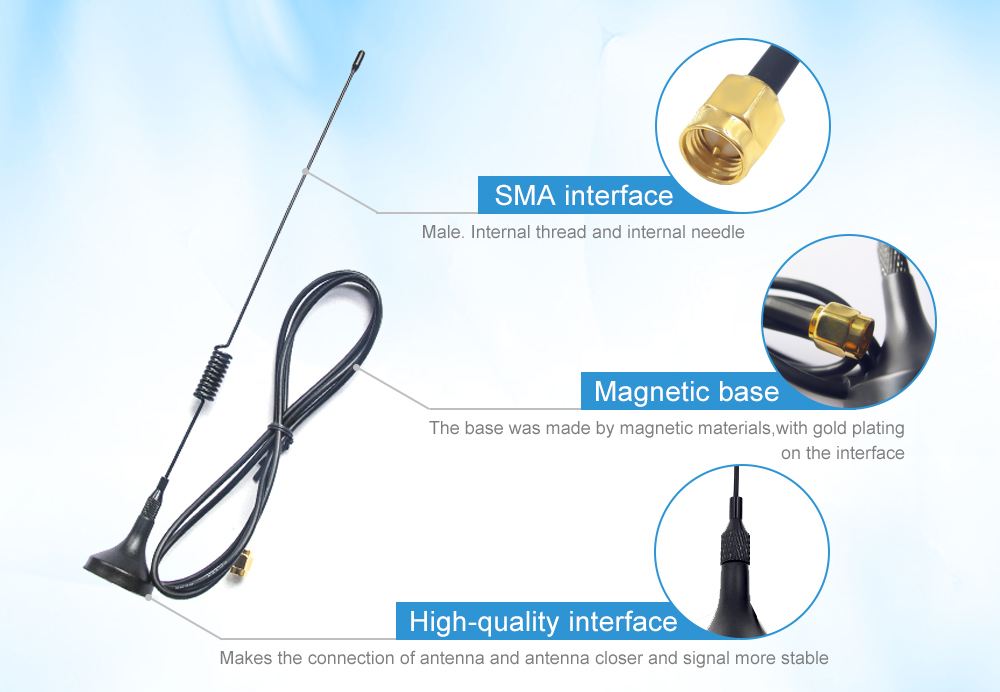

[Feature]:Sucker antenna
[Introduction]:Ebyte's Antenna has the industry’s broadest selection of antennas for a wide variety of applications. They work well for common applications that need good performance as well as a relatively small antenna.
| Order online |
| 【Aliexpress】：https://www.aliexpress.com/store/2798183 |
| 【Alibaba】：https://www.alibaba.com |
| For batch order/customized product |
| 【Sales hotline】：+86-28-61399028 Ext.812 |
| 【E-mail】：service@cdebyte.com |
| Technical support |
| 【Submit online】：http://www.ebyte.com/en/apple-technology.aspx |
| 【E-mail】：support@cdebyte.com |
| 产品 型号 | Gain dBi | Interface | SWR | Frequency Hz | Impedance Ω | Size mm | Feature | 技术 手册 | 样品 购买 |
|---|---|---|---|---|---|---|---|---|---|
| TX868-BLG-26 | 3 | N-J | ≤2.0 | 868M | 50 | 260mm | Fiberglass antenna | ||
| TX868-XPL-100 | 3.5 | SMA-J | ≤1.5 | 868M | 50 | 29cm*100cm | Sucker antenna | ||
| TX868-JKD-20 | 3.0 | SMA-J | ≤1.5 | 868M | 50 | 200mm*Φ13mm | Vertical high gain antenna | ||
| TX868-JZ-5 | 2.0 | SMA-J | ≤1.5 | 868M | 50 | 50mm*Φ9mm | vertical high gain antenna |
