[IC]:CC2630
[Frequency]:2.402~2.480GHz
[Power]:23dBm
[Distance]:1.5km
[Interface]:I/O
[Weight]:2.2±0.1g

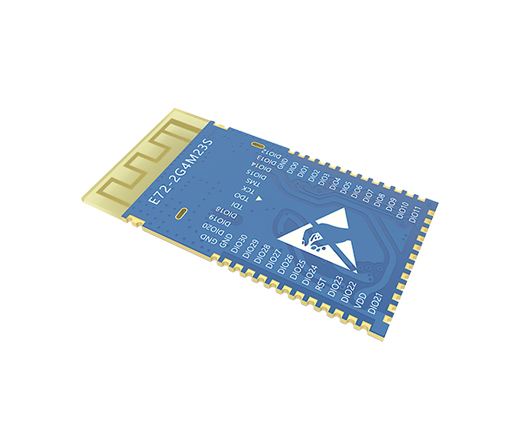

[Introduction]:E72-2G4M23S1A is small SMD wireless RF module designed by Chengdu Ebyte, working at 2.402~2.480GHz, with 23dB maximum power and PCB antenna&IPEX interface. It has super low RF & MCU current and low power consumption.
| RF Parameter | Value | Remark |
| Working frequency | 2402~2480 MHz | Default: 2.4GHz (24MHz oscillator) |
| Transmitting power | 23 dBm | About 200mW |
| Receiving sensitivity | -102 dBm | Air data rate: 1Mbps |
| Air data rate | 1Mbps | Please refer to ic datasheet for IEEE802.15.4 |
| Test distance | 500m / 1500m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 1Mbps |
| Hardware Parameter | Value | Remark |
IC | CC2630F128RGZR | - |
FLASH | 128 KB | - |
RAM | 28 KB | - |
Core | M3 + M0 | - |
Size | 17.5 * 33.5 mm | - |
Antenna type | PCB / IPEX | - |
Communication interface | I/O | - |
Package | SMD | - |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 1.8 | 3.3 | 3.8 | V | |
| Communication level | 2.4 | 3.0 | 3.3 | V | |
| Transmitting current | 164.6 | 182.5 | 200.1 | mA | 23dBm（200mW） |
| Receiving current | 10.3 | 11.1 | 12.4 | mA | |
| Sleep current | 1.2 | 1.4 | 3.1 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| Pin No | Pin item | Pin direction | Pin application |
| 1、2、3 | GND | - | Ground electrode,connected to power source reference ground |
| 4 | DIO_0 | Input/output | GPIO, sensor controller (refer to IC datasheet) |
| 5 | DIO_1 | Input/output | GPIO, sensor controller (refer to IC datasheet) |
| 6 | DIO_2 | Input/output | GPIO, sensor controller (refer to IC datasheet) |
| 7 | DIO_3 | Input/output | GPIO, sensor controller (refer to IC datasheet) |
| 8 | DIO_4 | Input/output | GPIO, sensor controller (refer to IC datasheet) |
| 9 | DIO_5 | Input/output | High drive GPIO,sensor controller (refer to IC datasheet) |
| 10 | DIO_6 | Input/output | High drive GPIO,sensor controller (refer to IC datasheet) |
| 11 | DIO_7 | Input/output | High drive GPIO,sensor controller (refer to IC datasheet) |
| 12 | DIO_8 | Input/output | GPIO, (refer to IC datasheet) |
| 13 | DIO_9 | Input/output | GPIO, (refer to IC datasheet) |
| 14 | DIO_10 | Input/output | GPIO, (refer to IC datasheet) |
| 15 | DIO_11 | Input/output | GPIO, (refer to IC datasheet) |
| 16 | DIO_12 | Input/output | GPIO, (refer to IC datasheet) |
| 17 | DIO_13 | Input/output | GPIO, (refer to IC datasheet) |
| 18 | DIO_14 | Input/output | GPIO, (refer to IC datasheet) |
| 19 | DIO_15 | Input/output | GPIO, (refer to IC datasheet) |
| 20 | JTAG_TMS | Input/output | JTAG_TMSC, high drive capability (refer to IC datasheet) |
| 21 | JTAG_TCK | Input/output | JTAG_TMSC, high drive capability (refer to IC datasheet) |
| 22 | DIO_16 | Input/output | High drive GPIO, JTAG_TDO(refer to IC datasheet) |
| 23 | DIO_17 | Input/output | High drive GPIO, JTAG_TDO(refer to IC datasheet) |
| 24 | DIO_18 | Input/output | GPIO, (refer to IC datasheet) |
| 25 | DIO_19 | Input/output | GPIO, (refer to IC datasheet) |
| 26 | DIO_20 | Input/output | GPIO, (refer to IC datasheet) |
| 27 | GND | - | Ground electrode,connected to power source reference ground |
| 28 | DIO_21 | Input/output | GPIO, (refer to IC datasheet) |
| 29 | VDD | - | Power supply, 2.0V ~ 3.7V |
| 30 | DIO_22 | Input/output | GPIO, (refer to IC datasheet) |
| 31 | DIO_23 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 32 | nRESET | Input | Reset, low level, (referto IC datasheet) |
| 33 | DIO_24 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 34 | DIO_25 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 35 | DIO_26 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 36 | DIO_27 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 37 | DIO_28 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 38 | DIO_29 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 39 | DIO_30 | Input/output | GPIO, sensor controller, digital analog (refer to IC datasheet) |
| 40、41、42 | GND | - | Ground electrode,connected to power source reference ground |
