[IC]:CC1310
[Frequency]:907~922.5MHz
[Power]:30dBm
[Distance]:6.0km
[Interface]:UART/IO
[Weight]:4.8±0.1g
[Introduction]:E70-915T30S is wireless UART transceiver module based on the original CC1310 of TI, operating at 907~922.5MHz, TTL level and 3.3V IO port.The module has the function of data encryption & compression.
| RF Parameter | Value | Remark |
| Working frequency | 907~922.5 MHz | Default: 915MHz (24MHz oscillator) |
| Transmitting power | 17~30 dBm | Default: 30dBm（About 1W） |
| Receiving sensitivity | -110 dBm | Air data rate: 50kbps |
| Air data rate | 2.5k~168kbps | Default: 2.5kbps |
| Test distance | 6000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps |
| Hardware Parameter | Value | Remark |
IC | CC1310F128RGZ | |
FLASH | 128 KB | |
RAM | 20 KB | |
Core | Cortex-M3（MCU）+Cortex-M0（RF） | |
Size | 24 * 38.5 mm | Without SMA |
Antenna type | IPEX / Stamp hole | |

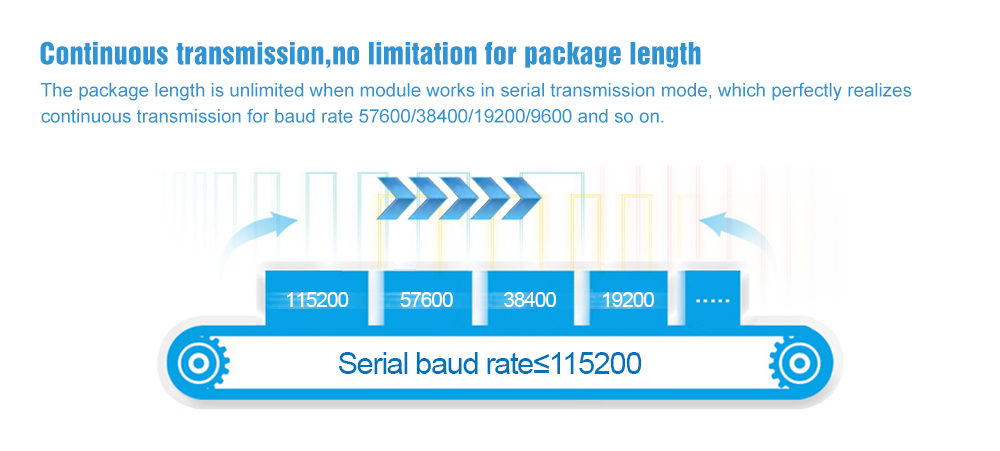

Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
Package | SMD | |
Buffer | 2048 bytes buffer | Defined by user |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2.6 | 5.0 | 5.5 | V | |
| Communication level | 2.1 | 3.3 | 3.8 | V | |
| Transmitting current | 570 | 600 | 660 | mA | 30dBm（1W） |
| Receiving current | 13 | 14 | 15 | mA | |
| Sleep current | 2.0 | 4.0 | 5.5 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| Pin No | Pin item | Pin direction | Pin application |
| 1-3、17、30、31、46、47 | GND | Ground | |
| 4-10 | NC | Reserved pin | Reserved, to be floated |
| 11 | LNA_EN | Output | Internal MCU controlled LNA pin, valid in high level, connect to pin 44 |
| 12 | PA_EN | Output | Internal MCU controlled PA pin, valid in high level, connect to pin 45 |
| 13-15 | NC | Reserved pin | Reserved, to be floated |
| 16 | M2 | Input | M2, M1, M0 jointly decide the 8 working modes; an external 1k protective resistor shall be connected in series when in use. |
| 18 | M0 | Input | M2,M1, M0 jointly decide the 8 working modes;an external 1k protective resistor shall be connected in series and a 1M pull-up resistor shall be added when in use.(Cannot be floated, it can be grounded when not used) |
| 19 | M1 | Input | M2,M1, M0 jointly decide the 8 working modes;An external 1k protective resistor shall be connected in series and a 1M pull-up resistor shall be added when in use.(Cannot be floated, it can be grounded when not used) |
| 20 | RXD | Input | TTL serial port input connects to external TXD pin. It can be configured asopen-drain or high pull input, please refer to parameter setting. An external 1k protective resistor shall be connected in series when using. |
| 21 | TXD | Output | TTL serial port output connects to external RXD input pin. It can be configured as open-drain or push-pull input, please refer to parameter setting. An external 1k protective resistor shall be connected in series when using. |
| 22 | TMSC | Input | JTAG TMSC |
| 23 | TCKC | Input | JTAG TCKC |
| 24 | RESET | Input | Reset pin, valid in low level |
| 25 | NC | Reserved pin | Reserved, to be floated |
| 26 | NC | Reserved pin | Reserved, to be floated |
| 27 | AUX | Output | It is used to indicate the operation status of module, for user to wake up the external MCU, the module outputs low level during self-checking and initialization at power on, it can be configured as open-drain output orpull-up output, please refer to parameter setting part, an external 1k protective resistor shall be connected inseries when using.(can be floated) |
| 28-29 | VCC | - | Power positive reference, power supply 2.6V ~ 5.5V DC |
| 32-43 | NC | Reserved pin | Reserved, to be floated |
| 44 | LNA_EN | Input | Internal LNA pin,valid in high level, connect to pin 11 |
| 45 | PA_EN | Input | Internal PA pin,valid in high level, connect to pin 12 |
| 48 | ANT | - | Antenna (50Ω characteristic impedance) |
