E330-400T13S

[IC]:-

[Frequency]:410.125~493.125MHz

[Power]:13dBm

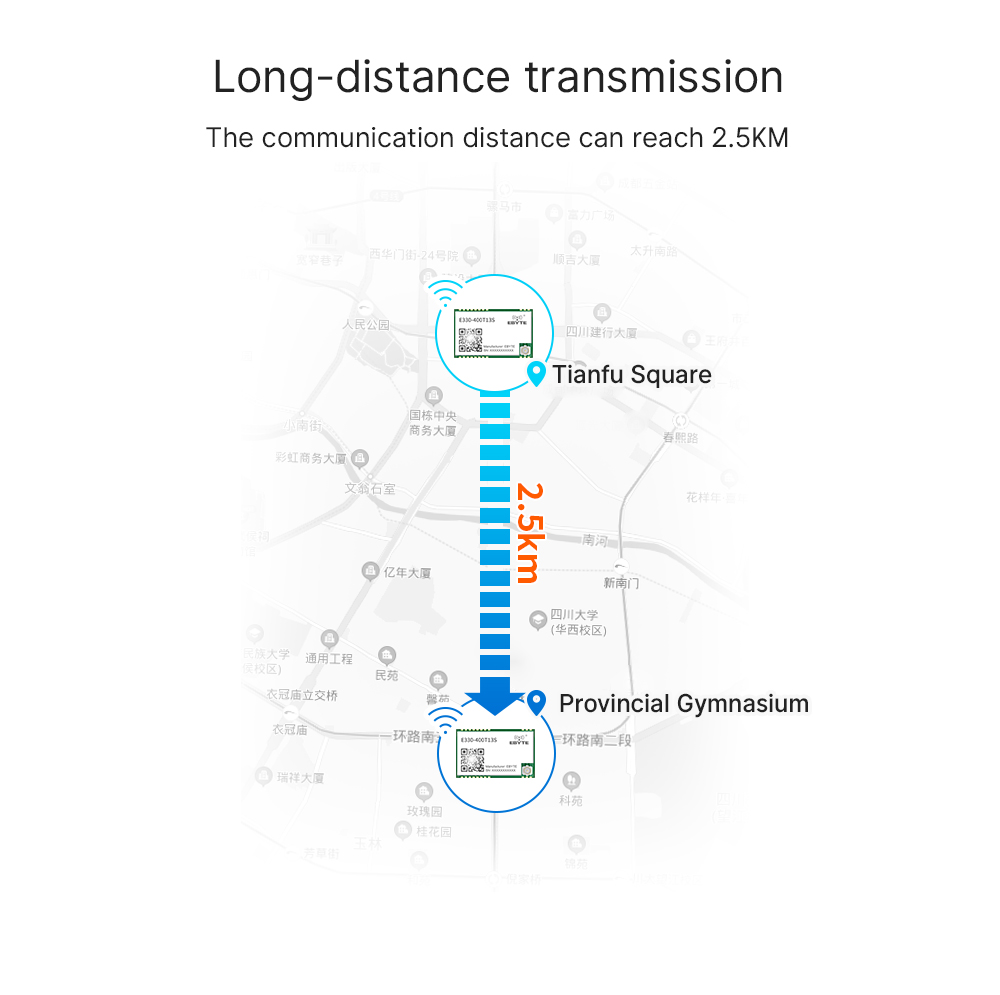

[Distance]:2.5km

[Size]:16*26mm

[Feature]:E330-400T13S is a small size, low power consumption, low cost, ultra-high cost-effective serial port module, integrated transceiver, covering 433MHz and 470MHz frequency bands.

950_01
950_02
950_03
950_04
950_05
950_06
950_07
950_08
950_09
950_10

Main ParameterMin.Typ.Max.UnitRemark
voltage
3.03.3/55.5V

Over 5.5V may burn the module permanently

Working frequency
410433493MHzChannel spacing 0.5MHz
Emission current -32-mA433MHz@13dBm
Receive current-6-mA
Regular receipt
Sleep current-1.6-uA-
Maximum output power121313dBm-
Receiving sensitivity--119-dBm-2Kbps
Air speed2K2K25KbpsMulti-level adjustable
------
-
-----


Main ParameterPerformance
Remark
Reference distance2.5km-
Send length 58 Byte

Maximum transmission bytes in a single

time

Cache capacity80ByteSoftware actual debugging
ModulationFSK-
Communication interfaceUART

  8N1\8E1\EO1,1200~38400Multi-level adjustable

PackageSMD      -
Size16*26     -
AntennaIPEX/Stamp holeEquivalent impedance is about 50Ω


E330_14

No.NameDirectionFunction
1GND-

Module ground

2GND-

Module ground

3GND-

Module ground

4GND-

Module ground

5M0

Input (very weak

pull-up)


Cooperate with M1 to determine the 4 working modes of the module. (Can not be suspended, if not used, it can be grounded)

6M1

Input (very weak

pull-up)


Cooperate with M0 to determine the 4 working modes of the module. (Can not be suspended, if not used, it can be grounded)

7RXDInput

TTL serial port input, connected to the external TXD output pin;

8TXDOutput

TTL serial port output, connected to the external RXD input pin;

9AUXOutput

      Used to indicate the working status of the module; the user wakes up the external MCU, and outputs low level during power-on self-check

initialization; (can be left floating)

10VCC-

Module power supply positive reference, voltage range: 3~3.6V DC

11GND-

Module ground

12NCReserved

(OCDSCK)

13GND

-

Module ground (GND)

14NCReserved

(OCDSDA)

15NCReserved

(VDD)

16NCReserved

PA4

17NC
Reserved

PA2

18NCReserved

GPIO3

19GND-

Module ground

20GND-

Module ground

21ANT-

antenna

22GND-

Module ground
