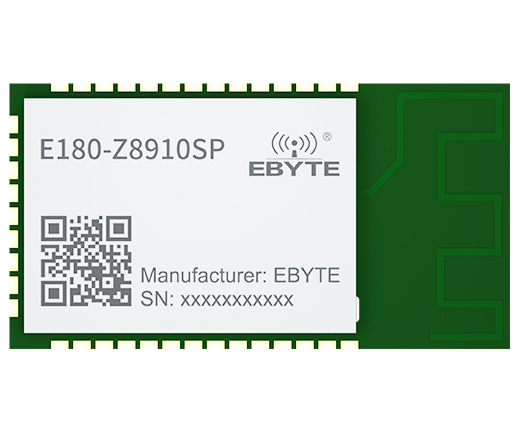

E180-Z8910SP

[IC]:JN5189

[Frequency]:2.405~2.48GHz

[Power]:11dBm

[Distance]:500m

[Size]:11.5*22.7mm

[Introduction]:E180-Z8910SP is a ZIGBEE3.0 module designed and produced by Chengdu Ebyte based on NXP JN5189 wireless SOC. It has a small size, low power consumption, high reliability, and works in the 2.4GHz frequency band. It has an ARM architecture, M4 core, and a clock frequency of up to 48MHZ.

01
02
03
04
05
06
07
08
09
10
11
12

ParameterPerformance
Note
Frequency
2405~2480MHz

ISM band

Maximum emitting power11dBm

-

Air data rate250kbps

-

Distance500m

Between two points (Zigbee network supports routing multi-hop function, which can extend the transmission distance by adding routers).


ParameterDescription
Note
Size
11.5*22.7mm

-

AntennaPCB

50Ω Impedance

Connector1.27mm

stamp hole

PackageSMD

-

ICJN5189HN/001Z

-

FLASH640KB

-

RAM152KB

-

KernelARM M4 Kernel

-


ParameterMin.Typ.Max.UnitNote
Voltage supply
1.93.33.6V≥3.3V ensures output power
Communication level-3.3-VFor 5V TTL, it may be at risk of burning down
Transmitting current-
34.1-mAEmission current 34.1mA at 11dbm
Receiving current-7.2-mA
-
Turn-off current-1120-μAPeriodic sleep current averages 1120nA (1.1uA)
Operating temperature
-40-
+85Industrial grade





10

No.
ItemDirectionApplication
1NC
-

Reserved, directly suspended

2GND
-

Ground wire, connected to the power reference ground

3NC
-

Reserved, directly suspended

4PIO1(WAKE)
Input

The WAKE pin is mainly used to wake up the dormant terminal. It is high when it is powered on. When the pin is pulled low externally, the dormant terminal device will be awakened.

5PIO8(TX)
Output

Serial transmission port TX

6PIO9(RX)
Input

Serial receiving port RX

7NC-

Reserved, directly suspended

8NC-

Reserved, directly suspended

9PIO2(MODE)
Input

Working mode switching pin, when the pull-down time is greater than 500ms,working mode switching.

10PIO3(BAUD_R)
Input

The UART_BAUD_RESET pin is used to reset the baud rate of the device. It defaults to a high level after power-on. In any mode, the module serial port parameters will be restored to the default 115200 if the pin is pulled down for more than 1000ms.

11PIO6(ACK)
Output

The ACK pin is used to indicate the status of the last user data transmission.The pin is pulled low before the transmission is started, and the pin is pulled high after the transmission is successful.

12PIO7(GPIO0)
Input/Output

GPIO input/output port 0

13VCC
-

Module power supply positive reference voltage, voltage range

14GND
-

Ground wire, connected to the power reference ground

15PIO10(GPIO1)
Input/Output

GPIO input/output port 1

16PIO4
-

Reserved, directly suspended

17PIO5-

(PIO5 pulled low, the module is in download mode; PIO5 pulled high, the module is in running mode)

18PIO16(AUX)
Output

The AUX pin indicates the current working status of the device. When the pin is low, it indicates that the device is busy, and the high level indicates that the device is idle.

19PIO11(GPIO2)
-

Reserved, directly suspended

20NC-

Reserved, directly suspended

21PIO14(ADC1)
Input

ADC detection port 1

22PIO15(ADC2)
Input

ADC detection port 2

23NC
-

Reserved, directly suspended

24NC
-

Reserved, directly suspended

25SWCLK-

Reserved, directly suspended

26SWDIO
-

Reserved

27PIO17(PWM3)
Output

PWM output port 3

28PIO18(PWM2)
Output

PWM output port 2

29PIO19(PWM1)
Output

PWM output port 1

30PIO21(LINK)
Output

The LINK pin indicates the current network status of the module, and the output high-level meter has been added to the network

31PIO20(PWM0)
Output

PWM output port 0

32NC
-

Reserved, directly suspended

33NC-

Reserved, directly suspended

34NC-

Reserved, directly suspended

35NC-

Reserved, directly suspended

36GND
Input/Output

Ground wire, connected to the power reference ground

37RESET
Output

Reset pin
