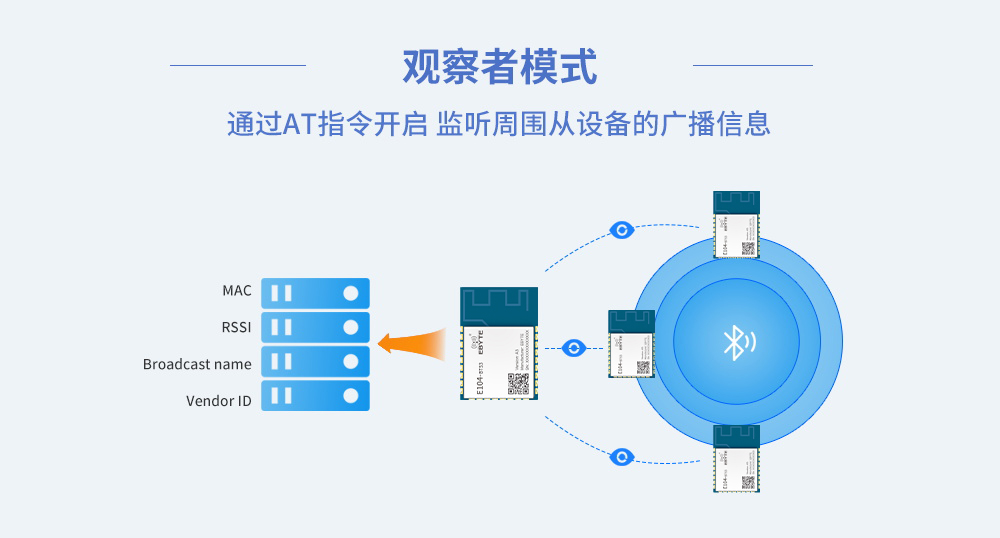

| 主要参数 | 参数值 | 备注 |
| 参考距离 | 120m | 晴朗空旷，天线增益 5dBi，天线高度 2.5 米，空中速率 1Mbps |
| 晶振频率 | 38.4MHz | - |
| 支持协议 | BLE 5.2 | - |
| 封装方式 | 贴片式 | - |
| IC 全称 | EFR32BG22C224F512GM32 | - |
| FLASH | 512KB | - |
| RAM | 32KB | - |
| 内核 | ARM®Cortex®-M33 内核 | - |
| 外形尺寸 | 13*19mm | - |
| 射频接口 | PCB | 等效阻抗约 50Ω |
| 电气参数 | 最小值 | 典型值 | 最大值 | 单位 | 条件 |
| 工作电压 | 1.9 | 3.3 | 3.6 | V | ≥3.3V 可保证输出功率 |
| 通信电平 | - | 3.3 | - | V | 使用5V TTL 有风险烧毁 |
| 发射电流 | - | 7.5 | - | mA | @发射功率 0dBm |
| 接收电流 | - | 3.6 | - | mA | - |
| 休眠电流 | - | 0.17 | - | uA | 软件关断 |
| 工作频段 | 2402 | 2440 | 2480 | MHz | 支持 ISM 频段 |
| 工作温度 | -40 | - | +85 | ℃ | 工业级 |
| 最大发射功率 | - | 6 | - | dBm | - |
| 接收灵敏度 | - | -106.7 | - | dBm | -106dbm sensitivity @125kbps GFSK; -98.9dbm sensitivity @1Mbit/s GFSK; -96.2dbm sensitivity @2Mbit/s GFSK; |
| 通信速率（GFSK） | 125k | - | 2M | bps | 用户可编程自定义 |
| 序号 | 引脚 | 引脚方向 | 备注 |
| 1 | GND | - | 模块地 |
| 2 | PB02 | TX | 模块串口发送端 |
| 3 | PB01 | RX | 模块串口接收端 |
| 4 | PB00 | I/0 | GPIO |
| 5 | PA00 | MOD | 模式配置：输入低电平保持 200ms 以上，模块进入配置模式；输入高电平保持 200ms 以上，模块进入透传模式。（该引脚有内部上拉，默认工作在透传模式） |
| 6 | PA01 | I/0 | GPIO |
| 7 | PA02 | I/0 | GPIO |
| 8 | PA03 | I/0 | GPIO |
| 9 | GND | - | 电源参考地 |
| 10 | GND | - | 电源参考地 |
| 11 | PA04 | RESTORE | 内部上拉。下降沿，然后保持低电平至少 5 秒后，所有参数恢复出厂设置并自动重启模块 |
| 12 | PA05 | CTS | （标准硬件流控 Clear To Send）模块输入信号，为高时表示MCU串口忙，模块不会向MCU串口发送数据，为低时可以向MCU发送数据 |
| 13 | PA06 | RTS | （标准硬件流控 Require To Send） 模块输出信号， 为高时表示模块串口忙，不允许MCU向模块串口发送数据，为低时可以向模块发送数据 |
| 14 | VCC | - | 电源正极，1.71~3.8V，推荐 3.3V |
| 15 | VCC | - | 电源正极，1.71~3.8V，推荐 3.3V |
| 16 | GND | - | 模块地 |
| 17 | GND | - | 模块地 |
| 18 | PD01 | 状态指示 | 指示主机连接状态 连接成功后引脚输出低电平 连接断开后输出高电平 |
| 19 | PD00 | 状态指示 | 指示从机（包括 Beacon 角色）连接状态 连接成功后引脚输出低电平 连接断开后输出高电平 |
| 20 | PC00 | I/0 | GPIO |
| 21 | PC01 | I/0 | GPIO |
| 22 | PC02 | I/0 | GPIO |
| 23 | PC03 | I/0 | GPIO |
| 24 | PC04 | I/0 | GPIO |
| 25 | PC05 | I/0 | GPIO |
| 26 | RESET | - | 模块复位引脚，低电平有效，内部上拉 |
