E32-900M30S

[IC]:SX1276

[Frequency]:850~931MHz

[Power]:30dBm

[Distance]:10km

[Size]:24*38.5mm

[Introduction]:E32-900M30s is a self-developed, 868/915MHz LoRa TM SMD wireless module with the maximum transmission power of 1W which is based on the SX1276 produced by Semtech in the United States.

950_01未标题-2900-30900-301
950_04
950_05
950_06
950_07
950_08950_09

Main parameterDescription
Remark
Reference distance
10km

Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2m,air data rate: 2.4 kbps

FIFO
256Byte

Maximum length of single send

Crystal Oscillator
32MHz

Passive crystals

Protocol

LoRa

FSK/GFSK/MSK/GMSK/OOK

Package
SMD

Spacing of 2.54 mm

Interface
2.54mm

Sample hole

Communication interface
SPI

0~10Mbps

Size
24 * 38.5 mm

-

Antenna
Sample hole / IPEX

50 ohm impedance


Main parameterMinTypeMaxUnitRemark
Operating voltage
3.3
55.5V≥5.5 V ensures output power
Communication level
-3.3
-V
-
Operating temperature
-40
-+85

Industrial grade
Operating frequency
850
868/915
931
MHz
-
TX current
-650-mA
-
RX current
-19
-mA
-

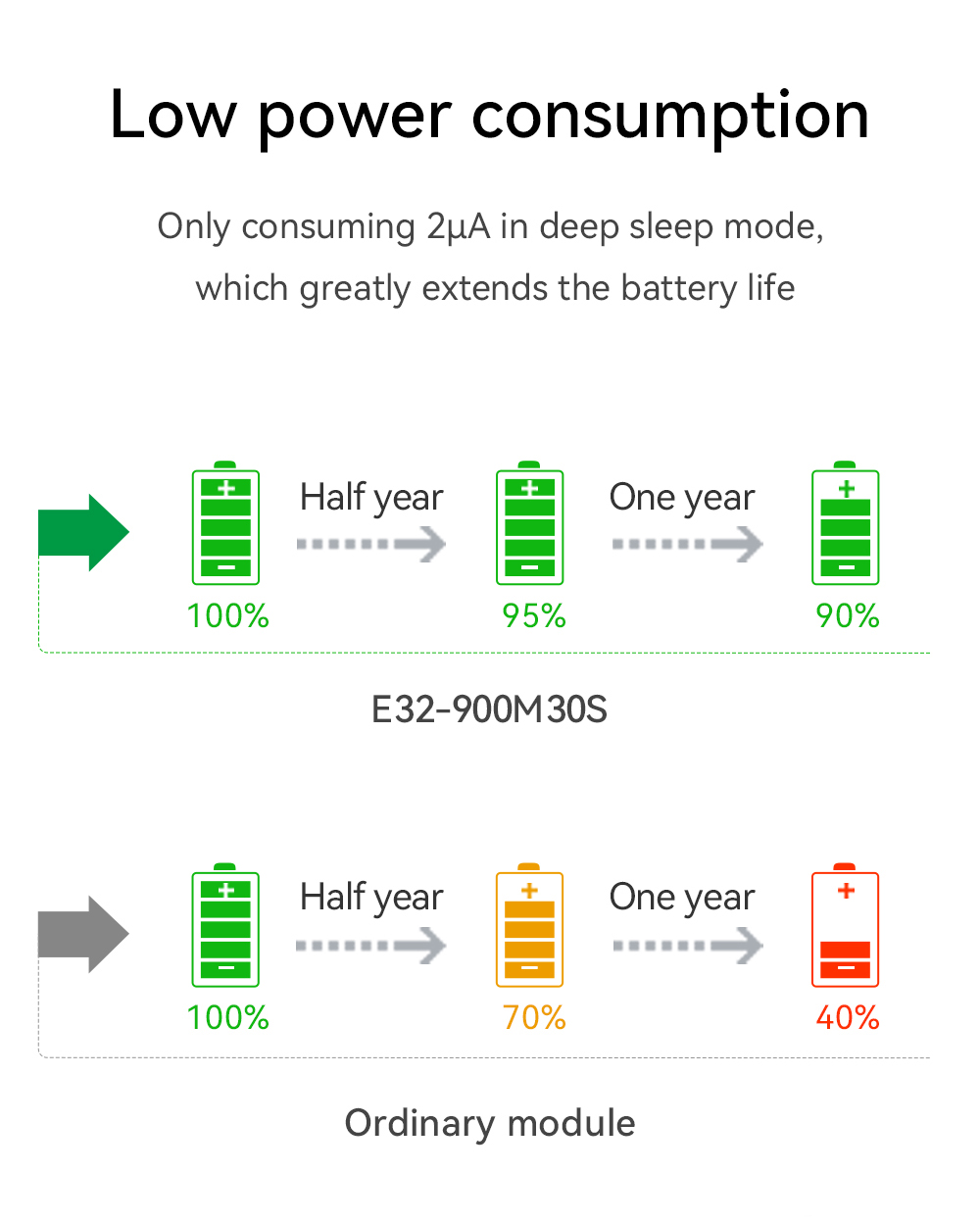

Sleep current
-2-μA
-
Max TX power
-30-dBm
-
Receiving sensitivity
-123
-124
-125
dBm

Air data rate is 1.2 kbps

E32jpg_15

Pin No.
ItemDirectionDescription
1GND-

Ground

2GND-

Ground

3GND-

Ground

4GND-

Ground

5GND
-

Ground

6RXEN
Input

RF switch receiving control pin, connected to external MCU IO, high level effective

7TXEN
Input

RF switch receiving control pin, connected to external MCU IO, high level effective

8DIO2
Input/Output

General IO port (see SX1278 manual for details)

9VCC
-

Power supply, range 3.3 ~ 5.5V (external ceramic filter capacitor is recommended)

10VCC
-

Power supply, range 3.3 ~ 5.5V (external ceramic filter capacitor is recommended)

11GND-

Ground

12GND
-

Ground

13NC

-

Suspend

14DIO3
Input/Output

General IO port (see SX1278 manual for details)

15DIO4
Input/Output

General IO port (see SX1278 manual for details)

16DIO5
Input/Output

General IO port (see SX1278 manual for details)

17GND
-

Ground

18GND
-

Ground

19DIO1
Input/Output

General IO port (see SX1278 manual for details)

20DIO0
Input/Output

General IO port (see SX1278 manual for details)

21NRST
Input

Chip reset trigger input pin

22MISO
Output

SPI data output pin

23MOSI
Input

SPI data output pin

24SCLK
Input

SPI data output pin

25NSS
Input

the module chip selects the pin used to start an SPI communication

26GND
-

Ground

27ANT
-

Antenna interface, Sample hole (50Ω characteristic impedance)

28GND
-

Ground
