[IC]:SX1278
[Frequency]:410~441MHz
[Power]:18~27dBm
[Distance]:5.0km
[Interface]:UART

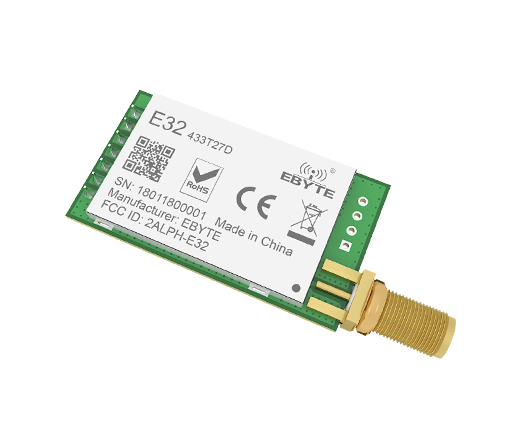

[Introduction]:E32-433T27D is a 500mW wireless transceiver module. adopts LoRa spread spectrum technology, with this technology the module can transmit much longer distance than similar products under the same power with better anti-interference performance.
| RF Parameter | Value | Remark |
| Working frequency | 410~441 MHz | Default: 433MHz |
| Transmitting power | 18~27 dBm | Default: 27dBm（About 500mW） |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.3k~19.2kbps | Default: 2.4kbps |
| Test distance | 5000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps |
| Hardware Parameter | Value | Remark |
| Size | 24 * 43 mm | Without SMA |
| Antenna type | SMA-K | |
| Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
| Package | DIP | |
| Buffer | 512 bytes buffer | Automatically sub-packaging with 58 bytes per package |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5.0 | 5.2 | V | |
| Communication level | 2.5 | 3.3 | 3.6 | V | |
| Transmitting current | 390 | 410 | 450 | mA | 27dBm（500mW） |
| Receiving current | 19 | 20 | 22 | mA | |
| Sleep current | 4 | 5 | 6 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
| Pin No | Pin Item | Pin Direction | Pin Application |
| 1 | M0 | Input （weak pull-up） | Work with M1& decide the four operating modes. (Floating is not allowed, can be ground) |
| 2 | M1 | Input （weak pull-up） | Work with M0 & decide the four operating modes. (Floating is not allowed, can be ground) |
| 3 | RXD | Input | TTL UART inputs, connects to external TXD (MCU, PC) output pin. Can be configured as open-drain or pull-up input. |
| 4 | TXD | Output | TTL UART outputs, connects to external RXD (MCU,PC) input pin. Can be configured as open-drain or push-pull output |
| 5 | AUX | Output | To indicate module's working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output. (Floating is allowed) |
| 6 | VCC | Input | Power supply 3.3V~5.2V DC |
| 7 | GND | Input | Ground |
| 8 | Fixing hole | Fixing hole | |
| 9 | Fixing hole | Fixing hole | |
| 10 | Fixing hole | Fixing hole | |
| 11 | Fixing hole | Fixing hole |
| 产品 型号 | Interface | IC | Frequency Hz | Power dBm | Distance km | Air data rate | Package | Size (mm) | Feature | 技术 手册 | 样品 购买 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| E32-900MBL-01 | USB | - | - | - | - | - | - | 53*27mm | E32 series module test board | ||
| E32-400MBL-01 | USB | - | - | - | - | - | - | 53*27mm | E32 series module test board | ||
| E32-400M20S | SPI | SX1278 | 433M 470M | 20 | 5 | - | SMD | 14 * 20 | Long transmission distance,Strong penetration diffraction | ||
| E32-433T20S | UART | SX1278 | 433M | 20 | 5.0 | 2.4k～19.2k | SMD | 16 * 26 | LoRa Spread Spactrum Technology | ||
| E32-400M30S | SPI | SX1278 | 433M 470M | 30 | 10 | 0.018K~37.5K | SMD | 24 * 38.5 | Long transmission distance,Strong penetration diffraction | ||
| E32-900M20S | SPI | SX1276 | 868M 915M | 20 | 5 | 0.018K~37.5K | SMD | 14*20 | Long transmission distance,Strong penetration diffraction | ||
| E32-900T30D | UART | SX1276 | 868M 915M | 30 | 8 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ||
| E32-900T20S | UART | SX1276 | 868M 915M | 20 | 5.5 | 0.3k~19.2k | SMD | 16*26 | LoRa spread spectrum | ||
| E32-900M30S | UART | SX1276 | 868M 915M | 30 | 10 | 0.018k~37.5k | SMD | 24*38.5 | Long transmission distance,Strong penetration diffraction | ||
| E32-433T20DT | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ||
| E32-915T20S | UART | SX1276 | 915M | 20 | 3 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ||
| E32-868T20S | UART | SX1276 | 868M | 20 | 3 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ||
| E32-DTU(433L27) | 232/485 | SX1278 | 433M | 27 | 5.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(433L37) | 232/485 | SX1278 | 433M | 37 | 20 | 0.3k~9.6k | Screwing/DB9 | 124*105*25 | LoRa spread spectrum | ||
| E32-400T20S3 | UART | SX1278 | 433M 470M | 20 | 3 | 0.3k~19.2k | SMD | 16 * 26 | LoRa spread spectrum | ||
| E32-915T30S | UART | SX1276 | 915M | 30 | 8.0 | 0.3k~19.2k | DIP | 25*40.3 | LoRa spread spectrum Continuous transmiss | ||
| E32-868T30S | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 25*40.3 | LoRa spread spectrum Continuous transmiss | ||
| E32-433T30S | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | SMD | 25*40.5 | LoRa spread spectrum | ||
| E32-433T20S1 | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*25.5 | LoRa spread spectrum | ||
| E32-433T20S2T | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | SMD | 17*30 | LoRa spread spectrum | ||
| E32-DTU(170L30) | 232/485 | SX1278 | 170MHz | 30 | 8.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(868L30) | 232/485 | SX1276 | 868M | 30 | 8.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(868L20) | 232/485 | SX1276 | 868M | 20 | 3.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(915L30) | 232/485 | SX1276 | 915M | 30 | 8.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(915L20) | 232/485 | SX1276 | 915M | 20 | 3.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(433L20) | 232/485 | SX1278 | 433M | 20 | 3.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-DTU(433L30) | 232/485 | SX1278 | 433M | 30 | 8.0 | 0.3k~9.6k | Screwing/DB9 | 82*62*25 | LoRa spread spectrum | ||
| E32-915T30D | UART | SX1276 | 915M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ||
| E32-868T30D | UART | SX1276 | 868M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ||
| E32-170T30D | UART | SX1278 | 170M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa Spread Spectrum | ||
| E32-433T30D | UART | SX1278 | 433M | 30 | 8.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum | ||
| E32-868T20D | UART | SX1276 | 868M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ||
| E32-915T20D | UART | SX1276 | 915M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ||
| E32-433T20DC | UART | SX1278 | 433M | 20 | 3.0 | 0.3k~19.2k | DIP | 21*36 | LoRa spread spectrum | ||
| E32-433T27D | UART | SX1278 | 433M | 27 | 5.0 | 0.3k~19.2k | DIP | 24*43 | LoRa spread spectrum |
