E01C-ML01SP4

[IC]:Si24R1

[Frequency]:2.4~2.525GHz

[Power]:20dBm

[Distance]:2km

[Size]:14.5*18mm

[Introduction]:E01C-ML01SP4 is a small size 2.4ghz SMD wireless module, maximum transmitting power of 100mW, which is independently developed based on domestic SI24R1.

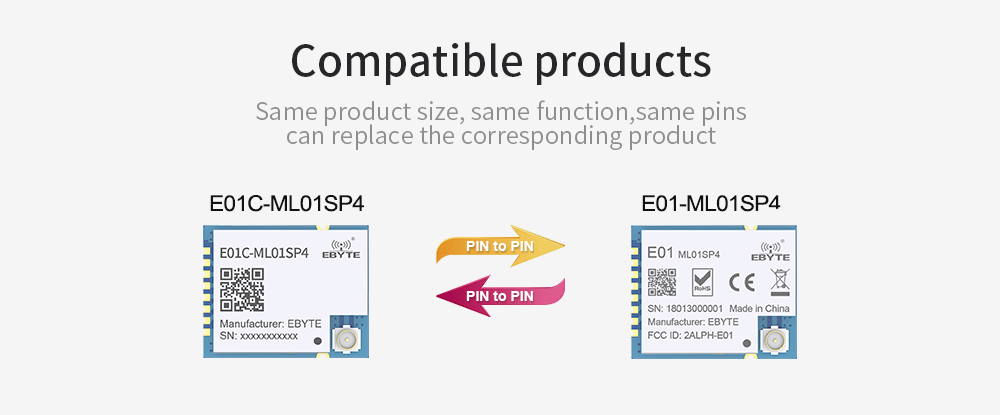

750_01
750_03
750_04
750_05
750_06
750_08
750_09
750_10

Main parameterPerformance
Remarks
Operating frequency
2400~2525 MHz     Support ISM band
Tx power20dBm     -
Receiving sensitivity-96 dBm
    Air data rate is 250kbps
Air data rate250k~2Mbps     User programming control
Distance2000m     In open and clear air, at height of 2.5m,air data rate:250kbps


Main parameterValue
Remarks
Size
14.5*18mm
    Without SMA
AntennaIPEX     50 ohm impedance match
Communication interfaceSPI
    0-10Mbps
Package SMD     -
FIFO32Byte     Max packet length per time
Crystal Frequency16MHz     -
ModulationGFSK     -


Main parameterMin. Typ. Max.UnitRemarks
Operating voltage
2.03.33.6V≥3.3V  ensures output power
Communication level-3.3-VFor 5V TTL, it may be at risk of burning down
TX current-113-mAInstant power consumption
RX current-24
-mA

Sleep current-2-μASoftware shut off
Working temperature
-4020
+85Industrial design


06

Pin No.
Pin itemPin directionApplication
1VCC
-
   Power supply between 2.0 and 3.6V
2CEInput    Module control pin
3CSNInput
   Chip select pin for starting new SPI communication
4SCKInput
   SPI clock pin
5MOSIInput
   SPI data input pin
6MISOOutput    SPI data output pin
7IRQOutput    Interrupt request,valid in low level
8GND-    Ground, connected to power reference ground
9GND-    Ground, connected to power reference ground
10GND-    Ground, connected to power reference ground
