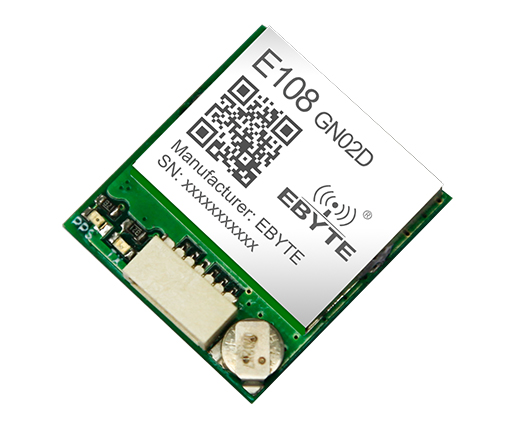

E108-GN02D

[Protocol]:Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz

[Certification]:Pending

[Package] :6P wiring seat, spacing 1.0mm

[Introduction] :E108-GN02D is a low-power, low-cost multi-mode satellite positioning and navigation module. It is small in size and low in power consumption.It can be used for GNSS positioning such as car navigation, smart wear,and drone flight control

1000
02
1000-02
041000_GN02D
06
07

CategoryDescription
letter of agreement
Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz
Supported positioning systemBDS/GPS/GLONASS/GALILEO/QZSS/SBAS
Support peripheral interfaceUART(TXD/RXD)
Low power consumptionSupport
Periodic low power consumptionSupport
Direct low power consumptionSupport
Parameter setting softwareSupport
CertificationPending
Module size22*20*5.8mm(L*W*H)
interface6P wiring seat, spacing 1.0mm
power supplyVCC(3-5.5V)


Serial portDescription
Communication level2.8V—3.3V(2.8V)
Baud rate (bps) 9600~921600,default 9600
Data bit8bit
Stop bit1


E108-GN02D_11

Pin No.
NameDescription

1

CE

Power enable terminal, can be pulled down to enter low power consumption mode (default is high)

2

1PPS

1PPS output, users can set frequency, duration, etc. through commands

3

GND

Module power ground wire

4

TXD

UART output (2.8V level)

5

RXD

UART input (2.8V level)

6

VCC

Module power supply (3V—5.5V)
