E01-ML01D

[IC]:nRF24L01P

[Frequency]:2.4~2.525GHz

[Power]:0dBm

[Distance]:0.1km

[Interface]:SPI

[Weight]:0.9±0.1g

[Introduction]:E01-ML01D is based on original imported nRF24L01P form Nordic in Norway. The module uses industrial component with sufficient transmitting power, good spectral characteristics and small volumes.

EN-E01-ML01D_02EN-E01-ML01D_03EN-E01-ML01D_04EN-E01-ML01D_05

RF ParameterValue
Remark
Working frequency
2400~2525 MHz

Default:  2.4GHz (16MHz oscillator)

Transmitting power0 dBm

Max. Power (1mW)

Receiving sensitivity
-93 dBm

Air data rate: 250kbps

Air data rate250k~2Mbps

Default: 250kbps

Test distance100m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 250kbps


Hardware ParameterValue
Remark

Size

12.6 * 22.6 mm

    Without SMA

Antenna type

PCB



Communication interface

SPI


Package

DIP




Electronic parameterMin.Typ.Max.UnitCondition
Power supply
2.03.33.6V
Communication level2.03.33.6V
Transmitting current
121314mA0dBm(1mW)
Receiving current
11
1213mA

Sleep current
0.5
1.02.0μA
Operating temperature
-4020
+85
Operating humidity
1060
90%
Storage temperature
-4020
+125

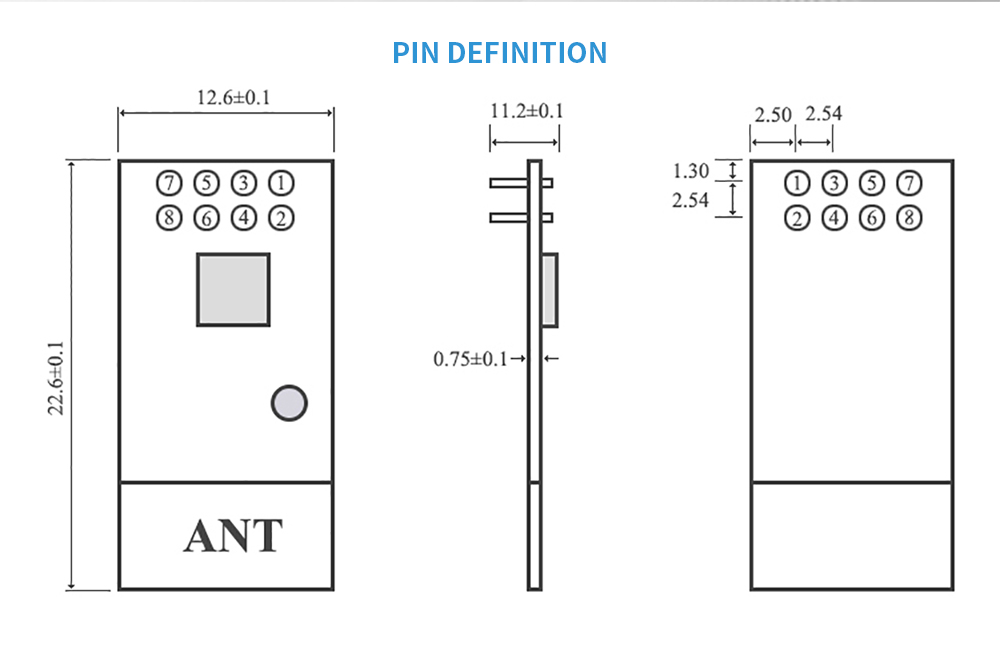

E01-ML01D

Pin No.
Pin ItemPin DirectionPin Application
1GND-
   Ground
2VCC-    Power supply 1.9V-3.6VDC
3CEInput    Chip enable
4CSNInput    SPI chip select
5SCKInput    SPI clock
6MOSIInput    SPI master output slave input
7MISOOutput    SPI master output slave input
8IRQOutput    Interrupt request.
