E01C-ML01D

[IC]: Si24R1

[Frequency]:2.4~2.525GHz

[Power]:7dBm

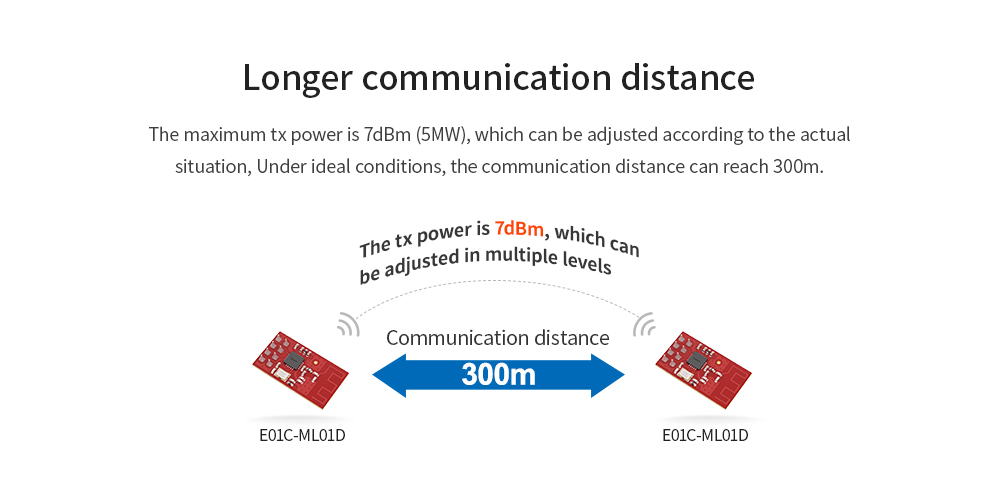

[Distance] :0.3km

[Size]:12.6 * 22.6mm

[Weight]:0.9±0.1g

[Introduction]:E01C-ML01D is a small size DIP module based on Si24R1, operates at 2.4Ghz with PCB antenna, using industrial-grade high-precision 16MHz crystal oscillator. The RF performance of it and components selection during R&D are all in accordance with industrial grade standards.

en-E01C-ML01D_01

en-E01C-ML01D_02

en-E01C-ML01D_03

en-E01C-ML01D_04

en-E01C-ML01D_05

en-E01C-ML01D_06

en-E01C-ML01D_08


Main ParametersValueRemarks
Min.Max
Power supply(V)03.6Voltage over 3.6V will causepermanent damage to module
Blocking power(dBm)-10Chances of burn is slim when modulesare used in short distance
Operating temperature(℃) -40 +85 -


Operating parameter

Main ParametersValueRemarks
Min.TypicalMax
Operating voltage(V)2.0 3.33.6≥3.3V ensures output power
Communication level(V)-3.3-For 5V TTL, it may be at risk of burning down
Operating temperature(℃)-40 -85Industrial design
Operating frequency(MHz)2.4-2.525 Support ISM band
TX Current(mA)-12-0dBm
RX current(mA) -15--
Sleep current(μA)-0.7-Software is shut down
Max Tx power(dBm) - 7 --
Receiving sensitivity(dBm)--83 -Air data rate is 2Mbps
Air data rate(bps) 250k- 2MControlled via user’s programming


Main parameter DescriptionRemarks
Distance for reference 300mTest condition:clear and open area, antenna gain: 5dBi,antennaheight: 2.5m,air data rate: 250kbps
FIFO 32ByteMax length transmitted each time
Crystal frequency 16MHz-
ModulationGFSK-
PackageDIP-
Connector2.54mm pin header -
Communication interface SPI 0-10Mbps
Size 12.6 * 22.6mm-
Antenna PCB antenna50ohm impedance

CH-E01C-ML01D引脚定义


Pin No. Pin itemPin direction  Pin application
1 GND-Ground
2VCC- Power supply must be 2.0 ~ 3.6V
3CEInputChip Enable
4CSNInput  SPI Chip select
5 SCKInput SPI clock
6MOSIInput SPI master output slave input
7 MISOOutput SPI master input slave output
8 IRQ Output Interrupt request.
