Ebyte maintains a long-term partnership with Texas instruments (TI)


Texas instruments (TI) is the world's leading supplier of digital signal processing and analog semiconductors and the first global semiconductor company. It is also the first to win the U.S.GreenBuildingCouncil certification of semiconductor companies to build green manufacturing facilities. As one of the world's top 500 companies, TI has a global staff of 35,300 and branches in America, Asia, Europe and Japan. It has manufacturing, design or sales offices in more than 35 countries, serving more than 90,000 customers worldwide. Analog chips are used in everything from portable ultrasound equipment to set  -  top boxes, from e  -  books to computer servers, from robots to LED street lamps. TI wireless chipset production has exceeded 1 billion and has own two DLP ® technology Emmy awards.

Ebyte has been maintaining a long  -  term and deep cooperative relationship with TI company. TI chips are used in E07 series, E72 series, E103-W02 series and E18 series. TI is a company with high requirements for its partners. It is a reflection of its strength to establish in  -  depth cooperation with TI. The two sides have held each other to a high standard, with a close and trustworthy relations. In the future, Ebyte and TI will continue to advance hand in hand to create a better future.

E18 series are all with imported CC2530

CC2530 is a true on  -  chip system (SoC) solution for 2.4  -  ghz IEEE 802.15.4, ZigBee, and RF4CE applications. It can build powerful network nodes at very low total material cost.

E18 series adopts CC2530 radio frequency chip imported by Texas instruments (TI) company. The chip is integrated with 8051 single chip microcomputer and wireless transceiver. It is applicable to ZigBee design and 2.4GHz IEEE802.154 protocol. The module leads to all IO ports of single chip microcomputer, which can be used for multi-directional development.

E07 series are all with imported CC1101

CC1101 is a less than 1GHz designed for very low power RF applications. It is aimed at industry, scientific research and medical (ISM) and short-range wireless communication equipment (SRD). CC1101 provides extensive hardware support for packet processing, data buffering, burst transmission, received signal strength indication (RSSI), idle channel evaluation (CCA), link quality indication, and wireless wake up (WOR). CC1101 is compatible with CC1100 in terms of code, packaging and external pins, and can be used in the world's most commonly used RF design with an open frequency lower than 1GHz.

E07 series adopt CC1101 radio frequency chip design and development originally imported from Texas instruments (TI) company, all imported industrial-grade components, all aluminum free process, stable performance, strong diffraction, professional design of hardware makes the module volume very small, convenient for various embedded development, can be connected with spring antenna or external antenna.

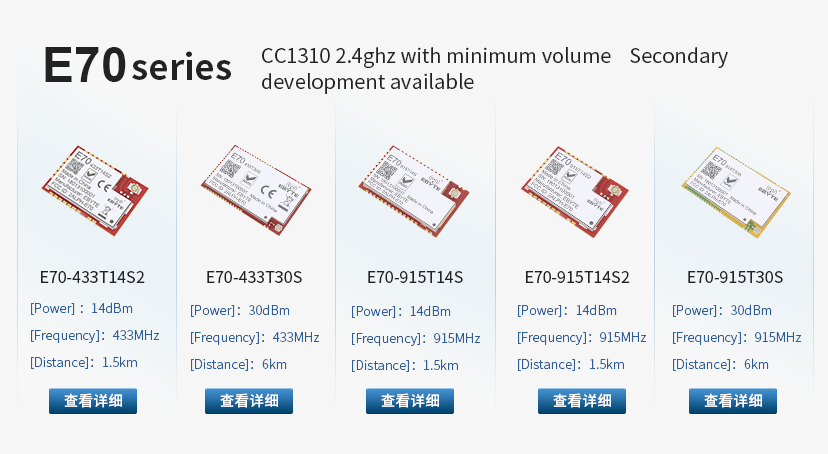

E70 series are all with imported CC1310

CC1310 is an economical and efficient RF device with ultra  -  low power consumption below 1GHz. Highly integrated with ultra  -  low current consumption of active RF and MCU, this excellent performance, even using small button battery power, can be used in energy collection and long  -  distance transmission.

E70 series is CC1310 wireless module based on rf chip fromTexas instruments (TI) , integrated with dual ARM microcontroller, the minimum volume, the built-in serial port function, supporting secondary development, with the whole industrial components, support the development, low power consumption, high stability, small volume patch type.

E72 series adopt CC2630 and CC2640

E72  -  soc series low  -  power wireless module, CC2630 is a dual  -  core chip,ARM cortex  -  m3 processor, for processing application data; Armcortex  -  m0 is used for running the protocol stack. This module is a pure hardware module, without factory firmware, so customers need to develop software. CC2620, CC2650 can be customized.

The E72- bluetooth series is with TI CC2640, which has 128KB system programmable flash memory and 8KB cache static RAM(SRAM). It has a wealth of peripherals. Thanks to its unique ultra  -  low power consumption sensor controller, it is very suitable for connecting with external sensors, and also for autonomously collecting analog and digital data when the rest of the system is in sleep mode.

E103 series are all with imported CC3200

The CC3200 device is a wireless MCU integrated with high-performance ARM cortex  -  m4 MCU, enabling customers to develop entire applications using a single integrated circuit (IC). With on  -  chip wifi, the Internet, and robust security protocols, faster development is possible without prior wi-fi experience.

E103  -  w02 is based on CC3200 developed by Texas instruments (TI). The module is integrated with pass  -  through function, which is ready to use and users can access the network through the serial port AT command set. It is widely used in wearable devices, home automation, home security, personal health care, smart home appliances, accessories and remote control, automobile, lighting, industrial Internet,etc.

E104 series are all with imported CC2541

The CC2541 is a SoC solution for low power and 2.4GHz applications. The CC2541 combines the performance of leading RF transceivers with an industry-standard enhanced 8051 MCU, programmable flash memory, 8kB RAM and many other powerful features and peripherals. The CC2541 is ideal for systems that require ultra-low power consumption.

E104 -  BT01 adopts the imported CC2541 RF chip from Texas Instruments. The chip integrates 8051 microcontroller and wireless transceiver, and is suitable for BLE protocol. All IO ports of the microcontroller of the module are available for multi-faceted development.
