E18-2G4U04B

[IC] : CC2531

[Frequency] : 2.394~2.507GHz

[Protocol] : Zigbee

[Distance] : 200m

[Interface] : USB

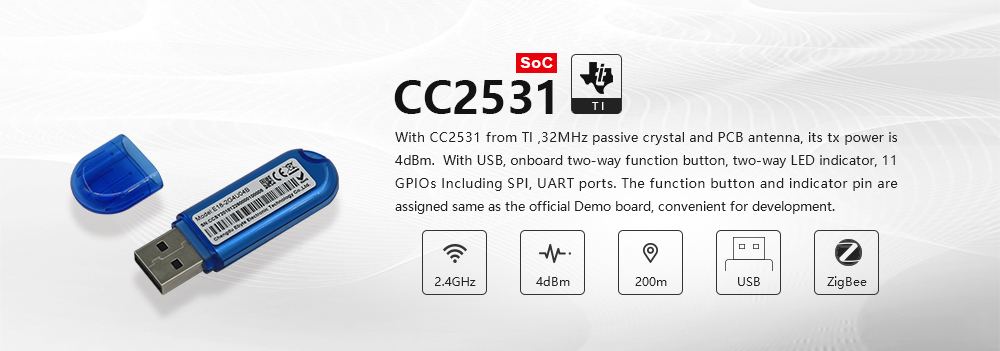

[Introduction] : E18-2G4U04B uses CC2531 RF chip imported from Texas Instruments. The chip integrates 8051 microcomputer and wireless transceiver, and integrates PA + LNA, which greatly expands the communication distance and improves communication stability, and it is equipped with ADC sampling, remote PWM output control, remote GPIO control and other functions.

改版E18-2G4U04B_02改版E18-2G4U04B_03EN-E18-2G4U04B_03
改版E18-2G4U04B_05E18-2G4U04B_06
改版E18-2G4U04B_06改版E18-2G4U04B_08

RF ParameterValue
Remark
Frequency
2394~2507 MHz

Support ISM band

Transmitting power4 dBm

-

Receiving sensitivity
-96.4 dBm

Air data rate: 250kbps

Communication protocal
ZigBee

-

Test distance200m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m,

air data rate: 250kbps


Hardware ParameterValue
Remark

IC

CC2531F256RHAT/QFN40

Built-in PA+LNA

FLASH

256 KB

-

RAM

8 KB

-

Core

8051 MCU

-

Size

59 * 18 mm

With housing

Antenna type

PCB

-

Powered by

USB

-


Electronic parameterMin.Typ.Max.UnitCondition
Operating voltage
2.755.5Vpowered by USB
Operating voltage
2.03.33.6V

powered by pcb power supply hole

Communication level-3.3-V

For 5V TTL, it may be at risk of burning down

Transmitting current
-31.5-mAInstant power consumption
Receiving current
-26-mA
powered by USB
Sleep current
---μA-
Operating temperature
-4020
+85-
Operating humidity
1060
90%-
Storage temperature
-4020
+125-


E104-2G4U04A_Size

No.
NameDirectionFunction
1P1.4
Input/output

GPIO(see more from CC2531 datasheet)

2P1.5
Input/output

GPIO(see more from CC2531 datasheet)

3P1.6
Input/output

GPIO(see more from CC2531 datasheet)

4P1.7
Input/output

GPIO(see more from CC2531 datasheet)

5VCCPower supply

2.0V—3.6V(do not power the module via USB at same time)

6DDInput/output

P2_1 for program download(see more from CC2531 datasheet)

7DCInput/output

P2_2 for program download(see more from CC2531 datasheet)

8RESETInput

Reset(Reset circuit available)

9GNDPower supply

Ground

10P0.2Input/output

GPIO(see more from CC2531 datasheet)

11P0.3Input/output

GPIO(see more from CC2531 datasheet)

12P0.4Input/output

GPIO(see more from CC2531 datasheet)

13P0.5Input/output

GPIO(see more from CC2531 datasheet)

14P0.6Input/output

GPIO(see more from CC2531 datasheet)

15P0.7Input/output

GPIO(see more from CC2531 datasheet)

16LEDSignal

indicator

Connect to P1.1 of CC2531,drive of high level lights

17LED

Signal

indicator

Connect to P0.0 of CC2531,drive of low level lights

18Button
Function

Connect to P1.3 of CC2531,effective at low level

19Button
Function

Connect to P1.2 of CC2531,effective at low level
